No. 4 Abs Warning Light And Brake System Warning Light Stay On

When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.

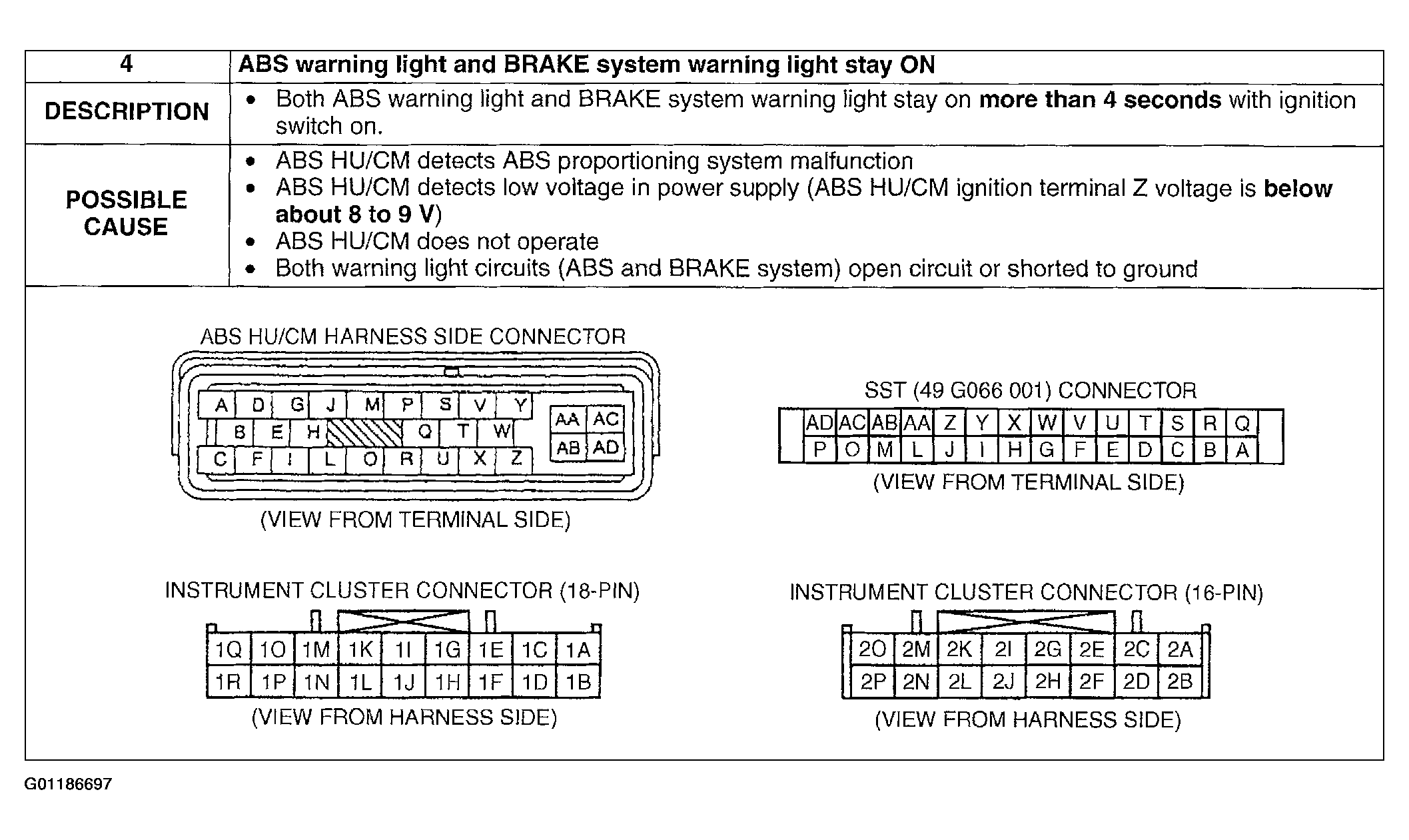

Fig 1: No. 4 ABS Warning Light And Brake System Warning Light Stay On Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

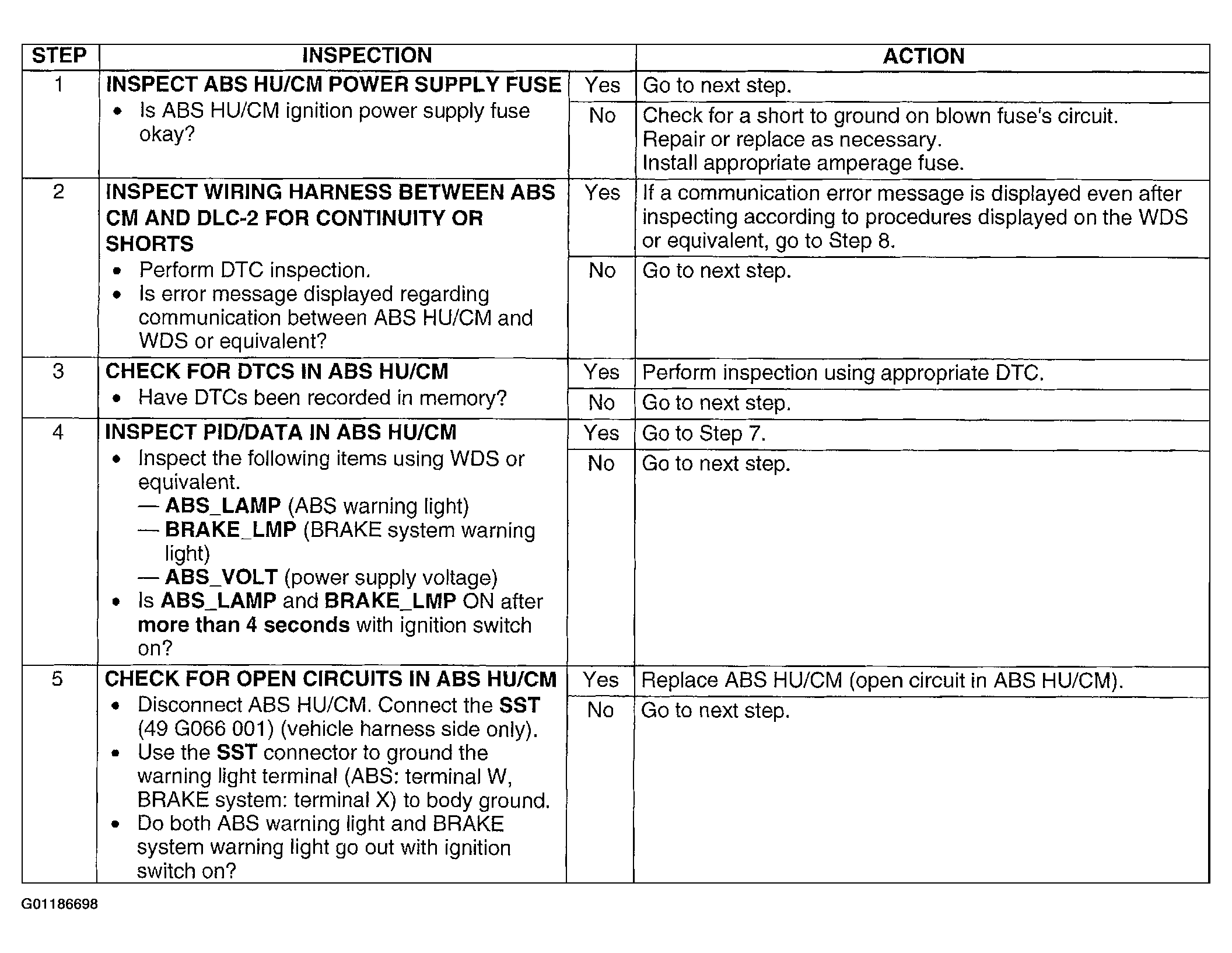

Fig 2: No. 4 ABS Warning Light And Brake System Warning Light Stay On Diagnostic Procedure (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

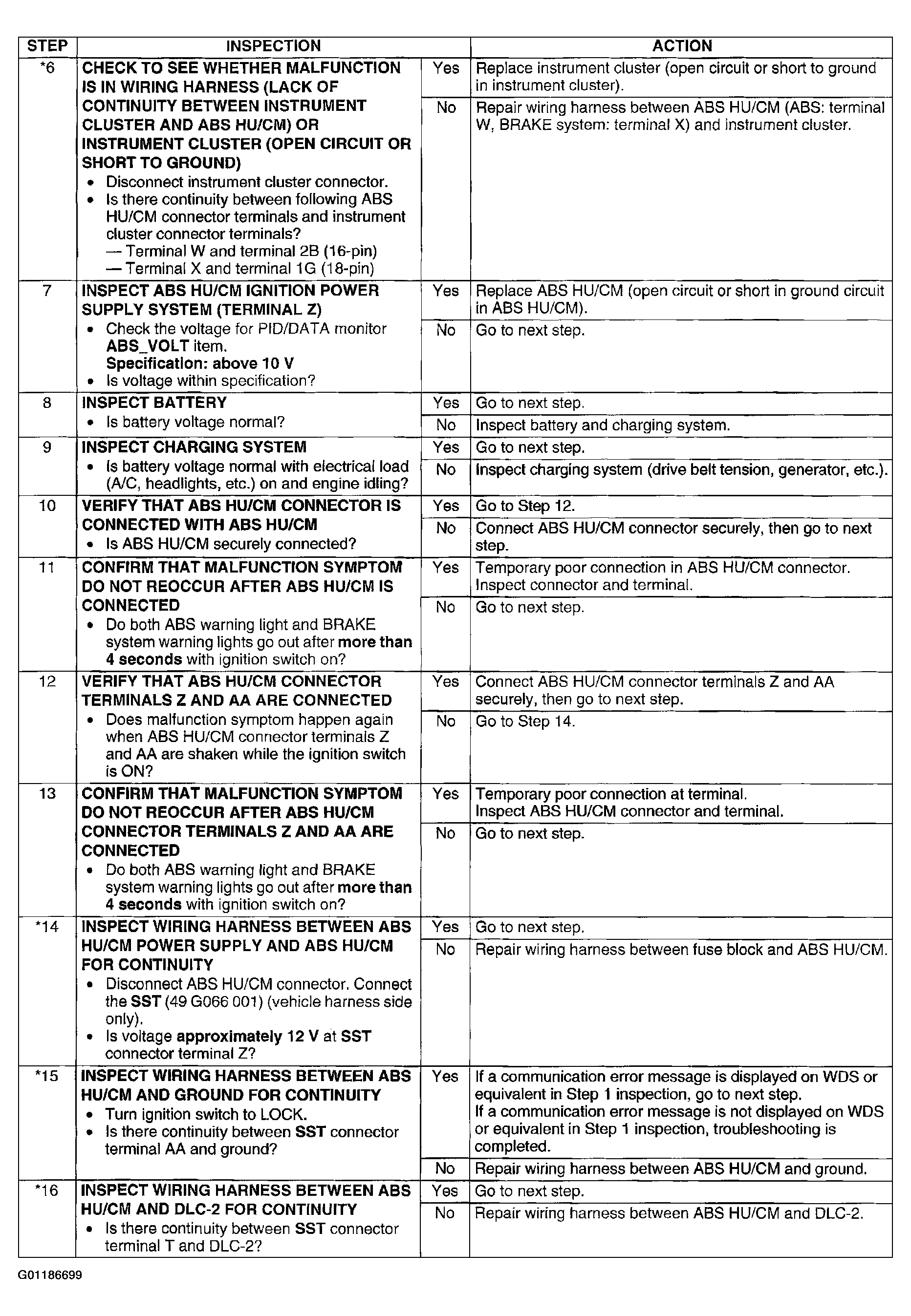

Fig 3: No. 4 ABS Warning Light And Brake System Warning Light Stay On Diagnostic Procedure (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

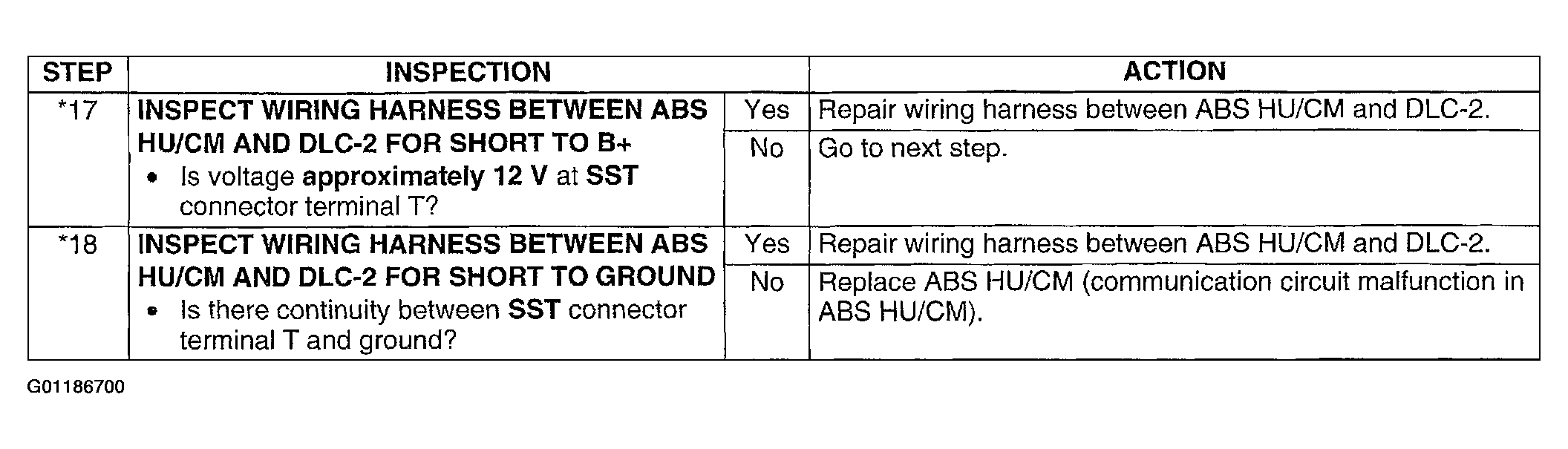

Fig 4: No. 4 ABS Warning Light And Brake System Warning Light Stay On Diagnostic Procedure (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
