Control Assembly, HVAC
CLIMATE CONTROL ASSEMBLYRemoval and Installation
1. Remove the instrument panel center finish panel.

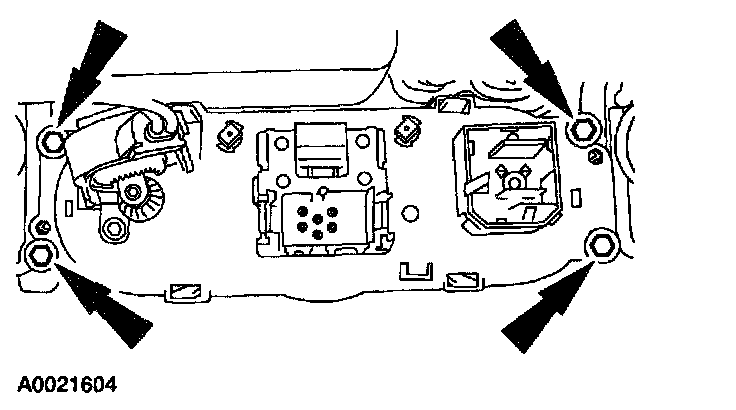

2. Remove the four screws and the climate control assembly.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the instrument panel center finish panel.
2. Remove the four screws and the climate control assembly.
3. To install, reverse the removal procedure.
