Function Selector Switch

Removal and Installation

1. Remove the instrument panel center finish panel. For additional information, see INSTRUMENT CLUSTER FINISH PANEL.

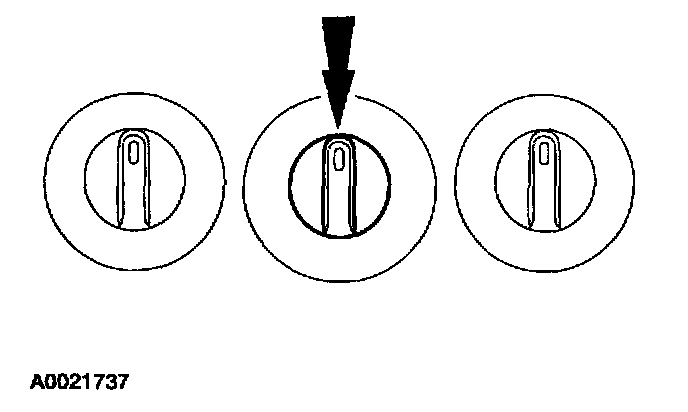

2. Remove the function selector switch knob.




3. Remove the function selector switch.
1. Push in the locking tab on one side of the function selector switch.

NOTE: Align the function selector switch locking tabs with the holes in the housing and press the function selector into the housing. Verify that both locking tabs are secured.

4. To install, reverse the removal procedure.
