Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW/INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR

Removal and Installation

1. Remove the air cleaner outlet tube.




2. Disconnect the mass air flow/intake air temperature (MAF/IAT) sensor electrical connector.

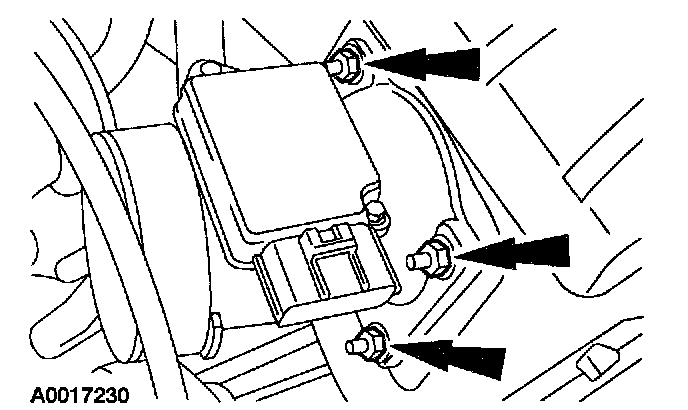

3. Remove the four nuts and the MAF/IAT sensor.
4. To install, reverse the removal procedure.
