Vehicle Speed Sensor: Service and Repair

Removal and Installation

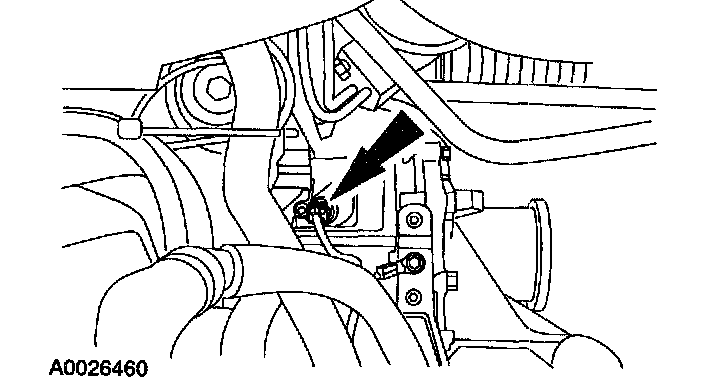

1. Disconnect the vehicle speed sensor (VSS) electrical connector.

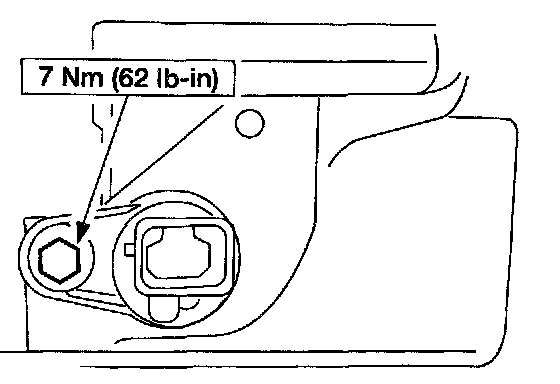

2. Remove the bolt and the VSS.
3. To install, reverse the removal procedure.
