Keyless Entry Module: Service and Repair

KEYLESS CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the rear package trim.

3. Disconnect the keyless control module connector.

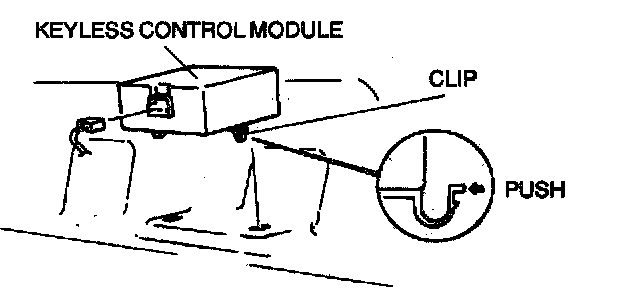

4. Push the sides of clips and remove the keyless control module.
5. Install in the reverse order of removal.
