Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC System
>>
Basic System
>>
Basic System Structural View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Basic System Structural View

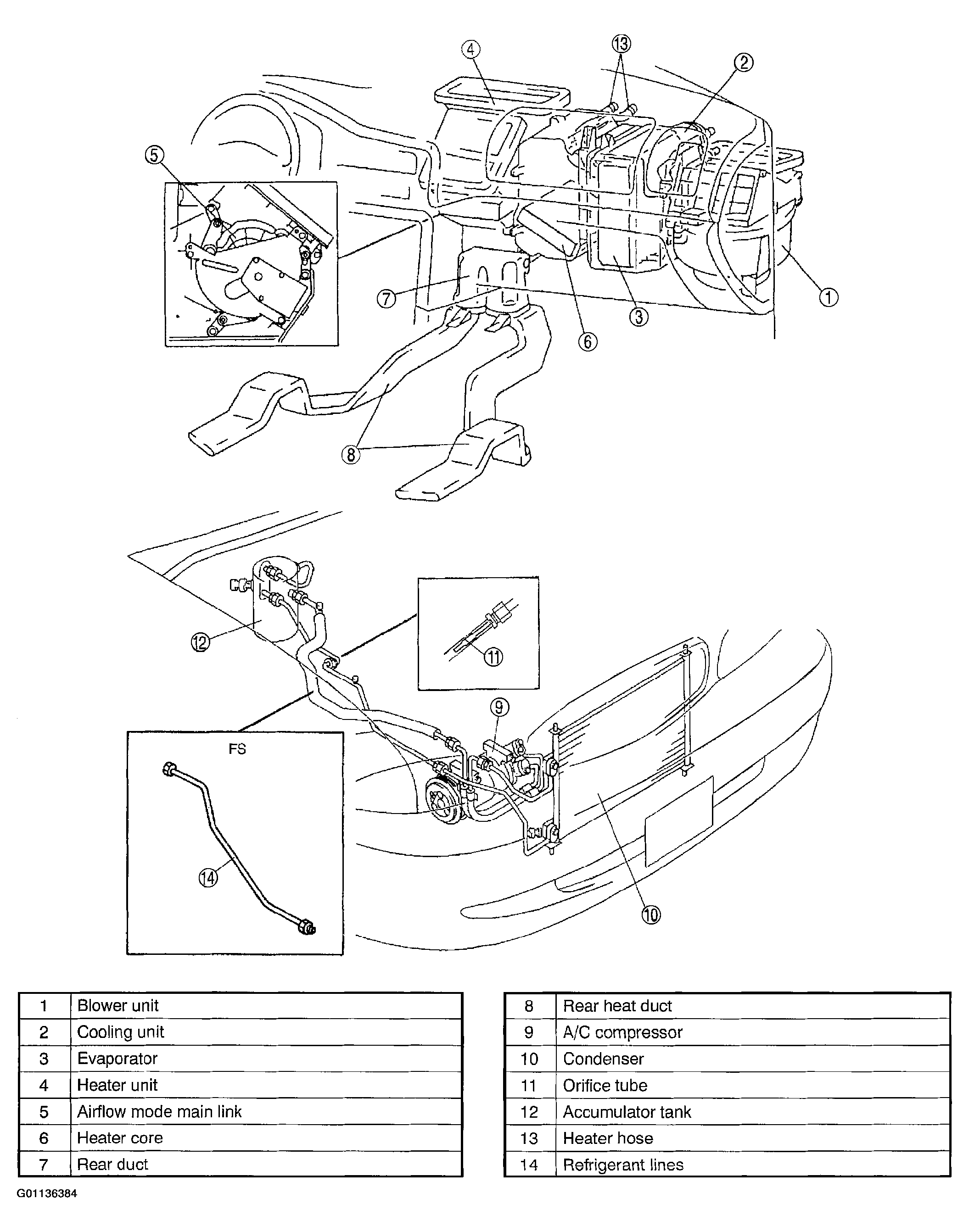

Fig 1: Locating A/C System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
