HVAC Control Systems
>>
HVAC System
>>
Control System
>>
Control System Structural View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Structural View

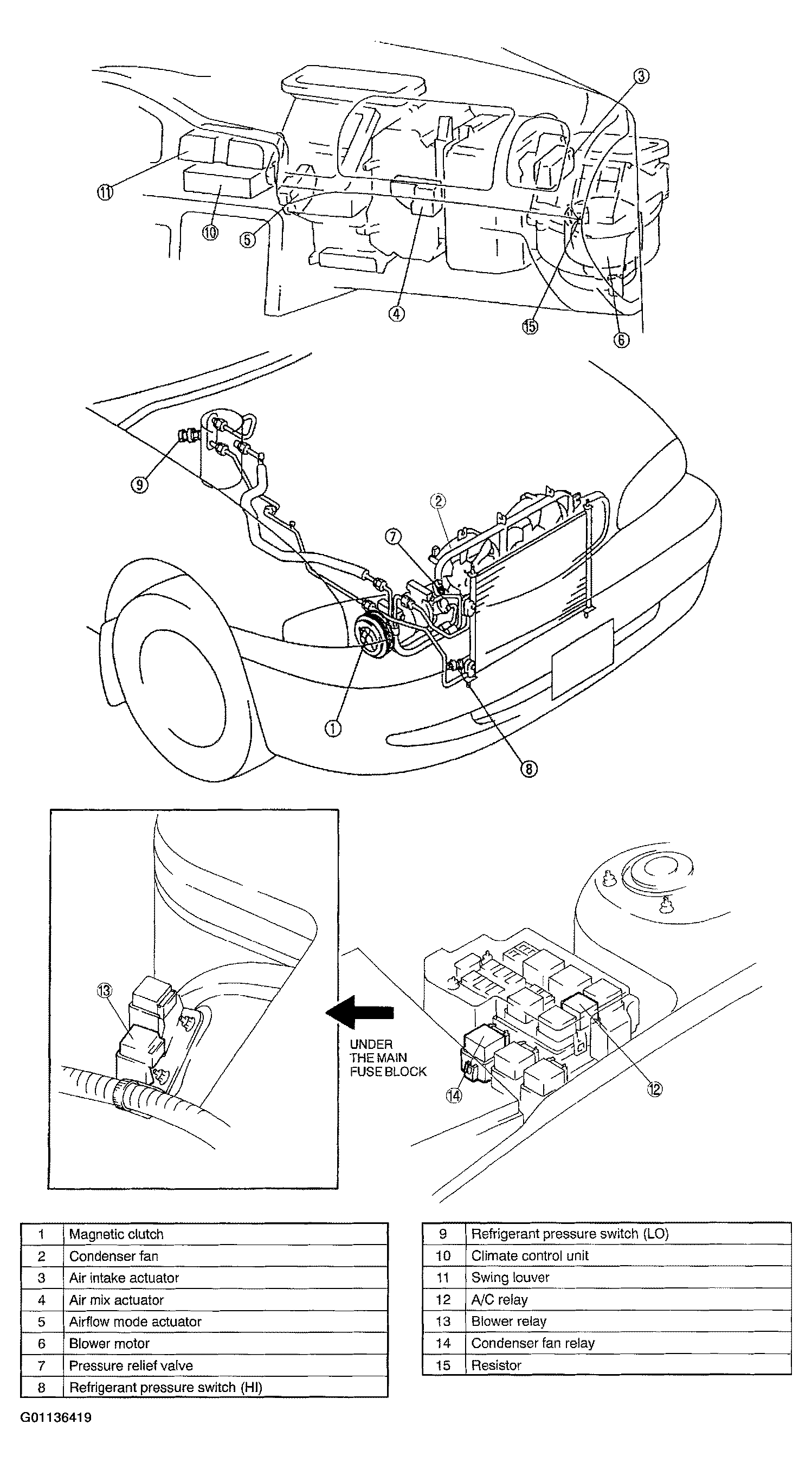

Fig 1: Locating Control System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
