Rear Wheel Alignment: Specifications

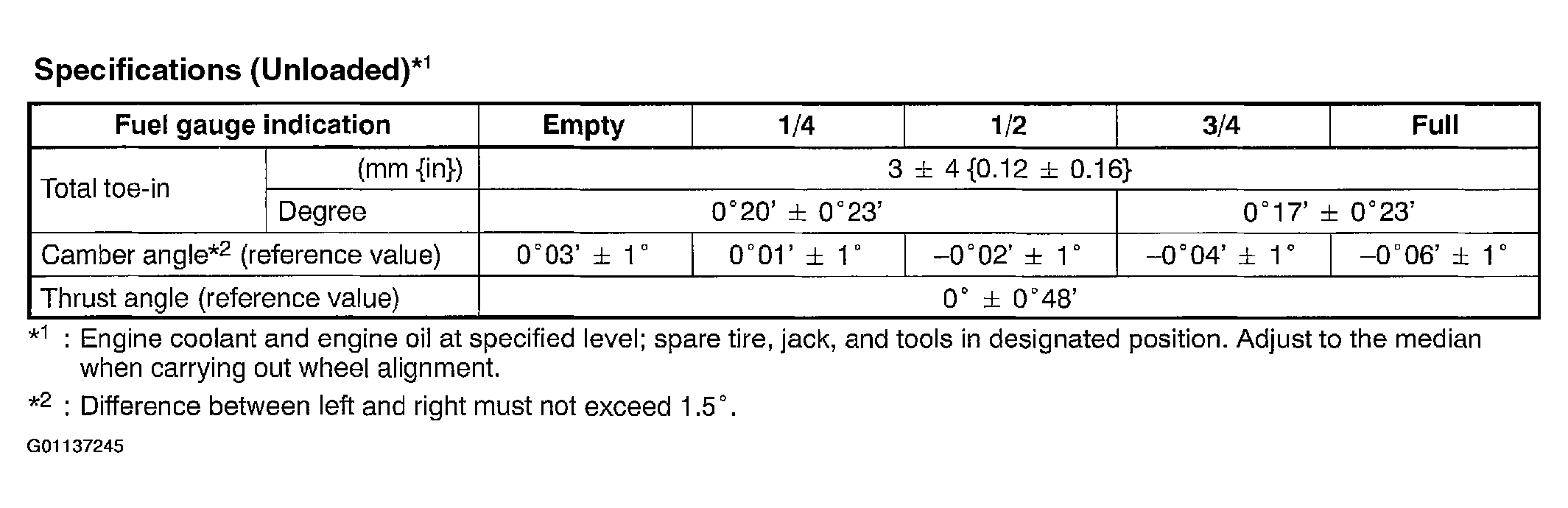

Fig 1: Rear Wheel Alignment Specifications (Unloaded)
G01137245Courtesy of MAZDA MOTORS CORP.
