Bushing Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bushings aligned with the stop flanges.

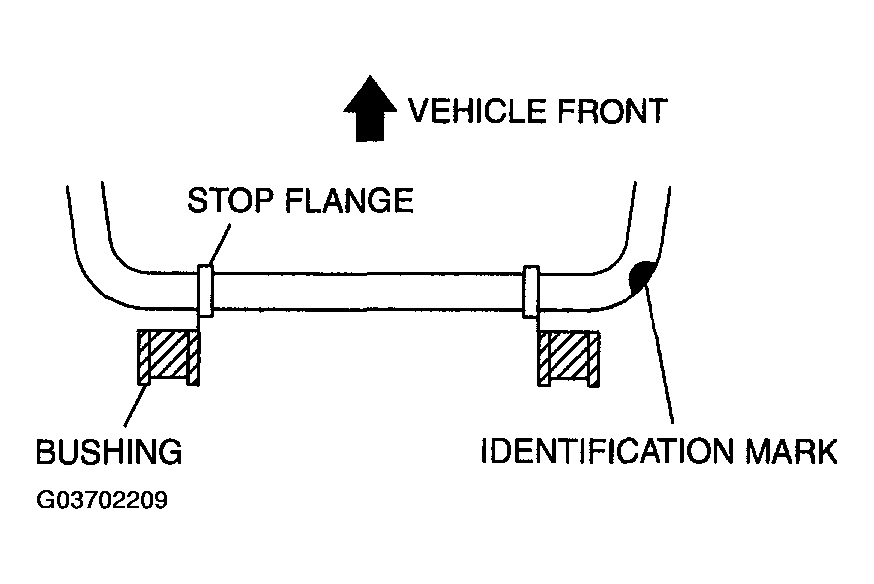

    Fig 1: Identifying Bushings Aligned With The Stop Flanges
    G03702209Courtesy of MAZDA MOTORS CORP.
