Dust Boot Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Wipe the grease off the ball joint stud.
  2. Fill the inside of the new dust boot with grease.
  3. Using the SST  , install the dust boot to the ball joint.
  4. Wipe off the excess grease.

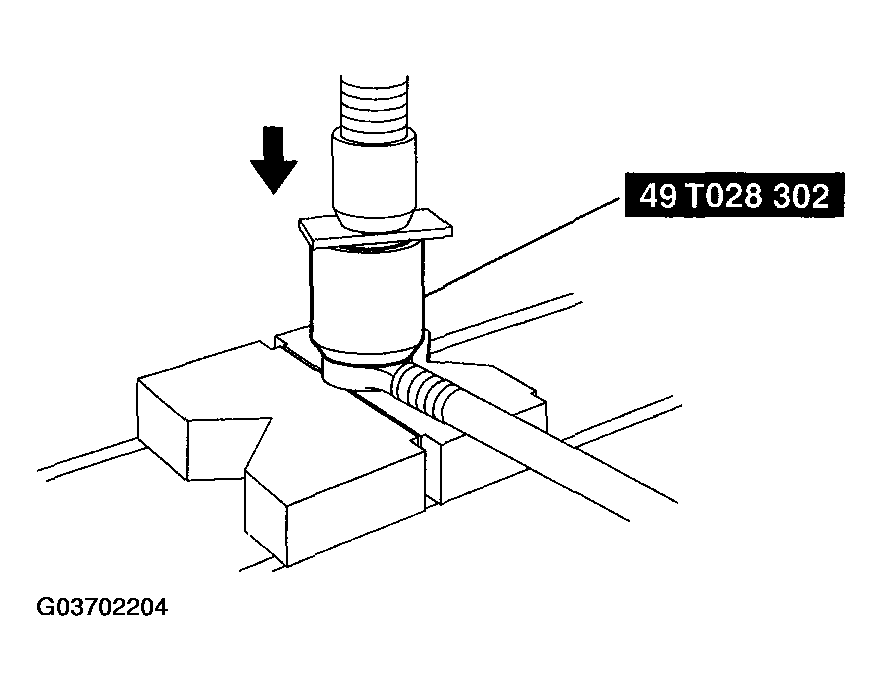

    Fig 1: Installing The Dust Boot To The Ball Joint
    G03702204Courtesy of MAZDA MOTORS CORP.
