2001-2002 Tribute/2001-2002 B4000 DPFE Sensor Warranty Extension Program Special Service Program (SSP) 59 (SSP59)
Publication date: 2004-10-01Reference number: SSP59
2001-2002 TRIBUTE/2001-2002 B4000 DPFE SENSOR WARRANTY EXTENSION PROGRAM SPECIAL SERVICE PROGRAM (SSP) 59
SERVICE CAMPAIGN BULLETIN
| MAZDA: | 2001-2002 Tribute, B4000 |
| SECTION: | Special Service Program |
| BULLETIN NO.: | 59 |
SUBJECT
2001-2002 Tribute/2001-2002 B4000 DPFE Sensor Warranty Extension Program Special Service Program (SSP) 59
Mazda Motor Corporation is extending the warranty coverage of the Delta Pressure Feedback EGR (DPFE) Sensor on certain 2001-2002 Tribute and 2001-2002 B4000 Truck vehicles. The extended warranty is available for 5 years from the original warranty start date or 74,000 miles, whichever occurs first. (This warranty extension adds 24 months or 24,000 miles, whichever comes first, to the DPFE Sensor's base warranty coverage of 36 months/50,000 miles.) This warranty extension program is provided in the interest of customer satisfaction.
A malfunctioning DPFE Sensor may illuminate the Malfunction Indicator Lamp (MIL) and/or cause poor driveability. Symptoms may include rough running, lack of power, surge, or decreased fuel economy. Failure of the DPFE Sensor will not cause failure of other components. Other components that can cause these symptoms are not covered under this extended warranty program.
This is not a recall. This is a warranty extension for the specified part only. Inspection and replacement of non-failed parts will not be eligible for reimbursement to the dealer or customer. This program extends the warranty period for actual failures due to defects in workmanship or materials in accordance with Mazda Warranty Policy and Procedures.
Owners of subject vehicles will be notified by first class mail beginning October 1, 2004.
This package contains important information about SSP 59
| Attachment I | Dealer Information |
| Attachment II | Owner Notification Letter |
For technical assistance, call the Technical Assistance Hotline at (888) 832-8477. For warranty questions, contact the Corporate Dealer Assistance Group at (877) 727-6626.
Please make certain that the appropriate personnel in your dealership are aware of these resources and are familiar with the details of this program before responding to customer inquiries. Your understanding and support in carrying out this program is greatly appreciated.
Sincerely,
Michael J. Giblin
Director, Technical Services
Mazda North American Operations
ATTACHMENT I - DEALER INFORMATION
WARRANTY EXTENSION
For certain 2001-2002 Tribute and 2001-2002 B4000 Truck vehicles, the warranty coverage for the DPFE Sensor is extended. The extended warranty is available for 5 years from the original warranty start date or 74,000 miles, whichever occurs first.
CONDITION OF CONCERN
A malfunctioning DPFE Sensor may illuminate the Malfunction Indicator Lamp (MIL) and/or cause poor driveability. Symptoms may include rough running, lack of power, surge, or decreased fuel economy.
SUBJECT VEHICLES
| Model | VIN Range | Build Date Range |
|---|---|---|
| 2001-2002 Tribute | 4F2 *U** ** 1K M00137 - M72203 4F2 *U** ** 2K M00001 - M66656 |
April 17, 2000 through July 19, 2002 |
| 2001-2002 B4000 Truck | 4F4 *R**E* 1T M00016 - M32647 4F4 *R**E* 2T M00006 - M26435 |
June 28, 2000 through December 10, 2002 |
The asterisk symbol "*" can be any letter or number.
OWNER NOTIFICATION
Mazda will notify U.S. owners by first class mail beginning October 1, 2004. Owners will be advised they do not need to come in for inspection if their vehicle is functioning normally.
PARTS INFORMATION
| Description | Part Number | Quantity |
|---|---|---|
| DPFE Sensor | 1F72-20-302 | 1 |
WARRANTY CLAIM PROCESSING INFORMATION
| R&R DPFE Sensor including KOEO&KOER self-tests and diagnostic time | |
|---|---|
| Process Number | J0408A |
| Warranty Type Code | A |
| Symptom Code | 6X |
| Damage Code | 9W |
| Part Number Main Cause | 1F72-20-302 |
| Quantity | 1 |
| Labor Operation Code | XX616XRX |
| Labor Hours 0.4 | hrs |
| Period Covered | Warranty term 5 years, 74,000 miles, whichever comes first |
VERIFY THE VEHICLE NEEDS THE SSP
- Verify the vehicle is within the following ranges:VIN RANGE REFERENCE CHART
Model VIN Range Build Date Range 2001-2002 Tribute 4F2 *U** ** 1K M00137 - M72203
4F2 *U** ** 2K M00001 - M66656April 17, 2000 through July 19, 2002 2001-2002 B4000 Truck 4F4 *R**E* 1T M00016 - M32647
4F4 *R**E* 2T M00006 - M26435June 28, 2000 through December 10, 2002 If the vehicle is within the above ranges, go to step 2.
If vehicle is not within the above ranges, return it to the customer.
- Perform a Warranty Vehicle Inquiry using your eMDCS System.eMDCS SYSTEM - WARRANTY VEHICLE INQUIRY RESULTS
If eMDCS displays: Action to perform: SSP 59 OPEN Proceed to "REPAIR PROCEDURE." Replace only if DPFE Sensor defective SSP 59 CLOSED Proceed to "REPAIR PROCEDURE." Replace only if DPFE Sensor defective SSP 59 is not displayed SSP does not apply to this vehicle. Return vehicle to inventory or customer NOTE: Because this is a warranty extension program, application of a campaign label is not necessary, even when replacing the sensor.
REPAIR PROCEDURE
- Retrieve DTC(s).
- If P0401, P0402, P1400, or P1401 are present, turn ignition OFF and replace the DPFE sensor. Then proceed to Step 2.
- If no DTC is retrieved, proceed with the appropriate electrical/driveability diagnosis using the Workshop Manual.
- Clear DTC(s).
- Verify the repair by performing Key On Engine Off (KOEO) and Key On Engine Running (KOER) Self-Test.
ATTACHMENT II - OWNER NOTIFICATION LETTER
October 2004
2001-2002 Tribute/2001-2002 B4000 DPFE Sensor Warranty Extension Program Special Service Program (SSP) 59
Dear Mazda Owner:
Mazda Motor Corporation has decided to conduct a Special Service Program to extend the warranty coverage of the Delta Pressure Feedback EGR (DPFE) Sensor on certain 2001-2002 Tribute and 2001-2002 B4000 Truck vehicles. While the potential for failure is unlikely, this warranty extension adds 24 months or 24,000 miles, whichever comes first, to the DPFE Sensor's base warranty coverage of 36 months/50,000 miles. In the interest of customer satisfaction, this warranty extension program is available for 5 years or 74,000 miles from the original warranty start date, whichever comes first.
If your vehicle is functioning normally, there is no need to contact your dealer. We suggest keeping this letter with the vehicle's warranty information for future reference.
Vehicles with a malfunctioning DPFE Sensor may illuminate the Malfunction Indicator Lamp (MIL) and/or experience poor driveability. Symptoms may include rough running, lack of power, surge, or decreased fuel economy. Should a symptom occur, please make an appointment with your Mazda dealer to have your vehicle diagnosed. If the malfunction is due to a failure of the DPFE Sensor during the terms of this warranty extension program, it will be repaired free of charge. Failure of the DPFE Sensor will not cause failure of other components. Other components that can cause these symptoms are not covered under this extended warranty program. This extension only covers the DPFE Sensor.
To locate your nearest Mazda dealer, visit our web site and try our "Locate a Dealer" feature at www.MazdaUSA.com or consult your local yellow pages.
If you have already paid for the inspection/replacement of the DPFE Sensor, you may be eligible for reimbursement of reasonable repair expenses based on Mazda's repair standards. Please complete the enclosed "Reimbursement Application Form," include the necessary documentation, and mail it to us in the pre-addressed envelope provided, allowing 6-8 weeks for processing.
If you have moved or no longer own your Mazda vehicle, please complete the enclosed prepaid Information Change Card as soon as possible. This enables us to update our records and notify the current owner. Federal law requires that any vehicle lessor receiving this notice must forward a copy of this notice to the lessee within ten days.
If you have any questions regarding this program, please contact our Customer Assistance Center at (800) 222-5500, option #4.
Your satisfaction is a priority for Mazda. We actively work to improve our products and search for solutions to improve your ownership experience. We hope this program will ensure your continued satisfaction with your Mazda.
Sincerely,
Mazda North American Operations
REIMBURSEMENT PLAN
Requirements for Reimbursement
If you meet all of the following requirements, you are eligible to receive reimbursement under this plan:
- You own or have owned a subject vehicle (2001-2002 Tribute and 2001-2002 B4000 Truck vehicles) within the following ranges:VIN RANGE REFERENCE CHART
Model VIN Range Build Date Range 2001-2002 Tribute 4F2 *U** ** 1K M00137 - M72203
4F2 *U** ** 2K M00001 - M66656April 17, 2000 through July 19, 2002 2001-2002 B4000 Truck 4F4 *R**E* 1T M00016 - M32647
4F4 *R**E* 2T M00006 - M26435June 28, 2000 through December 10, 2002 NOTE: The asterisk symbol "*" can be any number or letter. - You have paid for repair of the DPFE Sensor due to a defect in material or workmanship.
- The repair mileage was 74,000 miles or less.
- The repair was performed before October 2004.
- You have an original or legible copy of the paid repair order or invoice receipt showing:
- Description of the concern reported
- Replacement of the DPFE Sensor on the subject vehicle
- Itemized part(s) and labor charges
- Vehicle model and year, and vehicle identification number (VIN)
- Repair date
- Repair mileage
- Name, address, and telephone number of the authorized Mazda Dealer or a licensed repair shop where such repairs were performed
- Your name and address at the time of repair
- Mail this reimbursement application form in the enclosed envelope before October 2005
to:
Mazda North American Operations
PO Box 5049
Lake Forest, CA 92609-8549
Procedure for Reimbursement Request
To apply for reimbursement under this plan:
- Complete the Reimbursement Application Form found on the reverse side of this page.
- Mail the Reimbursement Application Form with a legible copy of the paid repair order and/or invoice using the enclosed envelope.
- Retain copies of the paid repair order or invoice and this application form for your records.
If you wish to correspond with Mazda regarding this reimbursement plan, please write to the above address and refer to your vehicle identification number (VIN).
Any reimbursement application form that is incomplete, illegible, or sent without the legible copy of the paid repair order or invoice will be returned for completion. If Mazda has any questions concerning your application for reimbursement, you may be contacted. Please allow 6-8 weeks for processing.

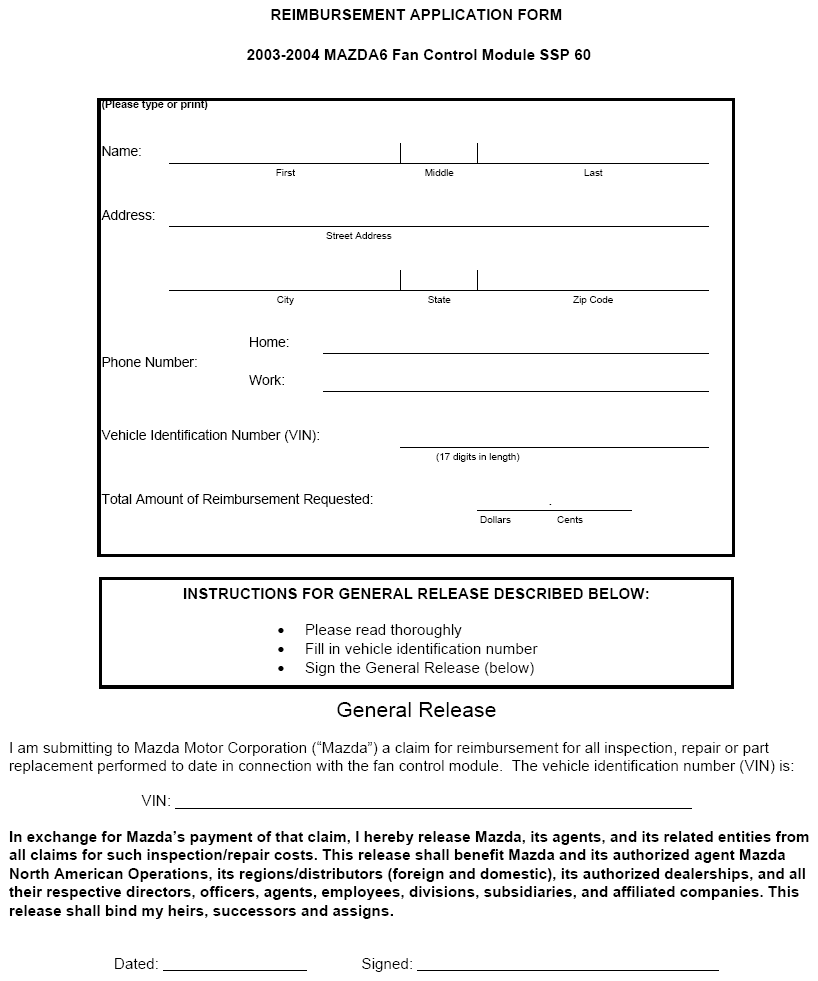

(SEE REVERSE SIDE FOR APPLICATION FORM)
