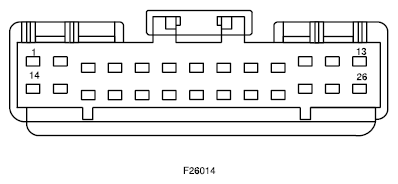

| 1 |
163 (RD/OG) |
Driver door unlock relay, switched power |
| 2 |
- |
not used |
| 3 |
70 (LB/WH) |
ISO Bus |
| 4 |
- |
not.used |
| 5 |
- |
not.used |
| 6 |
- |
not.used |
| 7 |
- |
not.used |
| 8 |
- |
not.used |
| 9 |
- |
not.used |
| 10 |
6 (YE/LG) |
Horn (13832) control |
| 11 |
999 (LB/WH) |
GEM/Central security module illumination |
| 12 |
- |
not used |
| 13 |
1 (DB) |
Horn (13832) feed |
| 14 |
57 (BK) |
Ground |
| 15 |
- |
not used |
| 16 |
- |
not used |
| 17 |
- |
not used |
| 18 |
- |
not used |
| 19 |
- |
not used |
| 20 |
- |
not used |
| 21 |
- |
not used |
| 22 |
- |
not used |
| 23 |
- |
not used |
| 24 |
645 (WH/LB) |
Voltage supplied at all times (overload protected) |
| 25 |
640 (RD/YE) |
Voltage supplied in Start and Run (overload protected) |
| 26 |
... |
not used |
