Steering SST

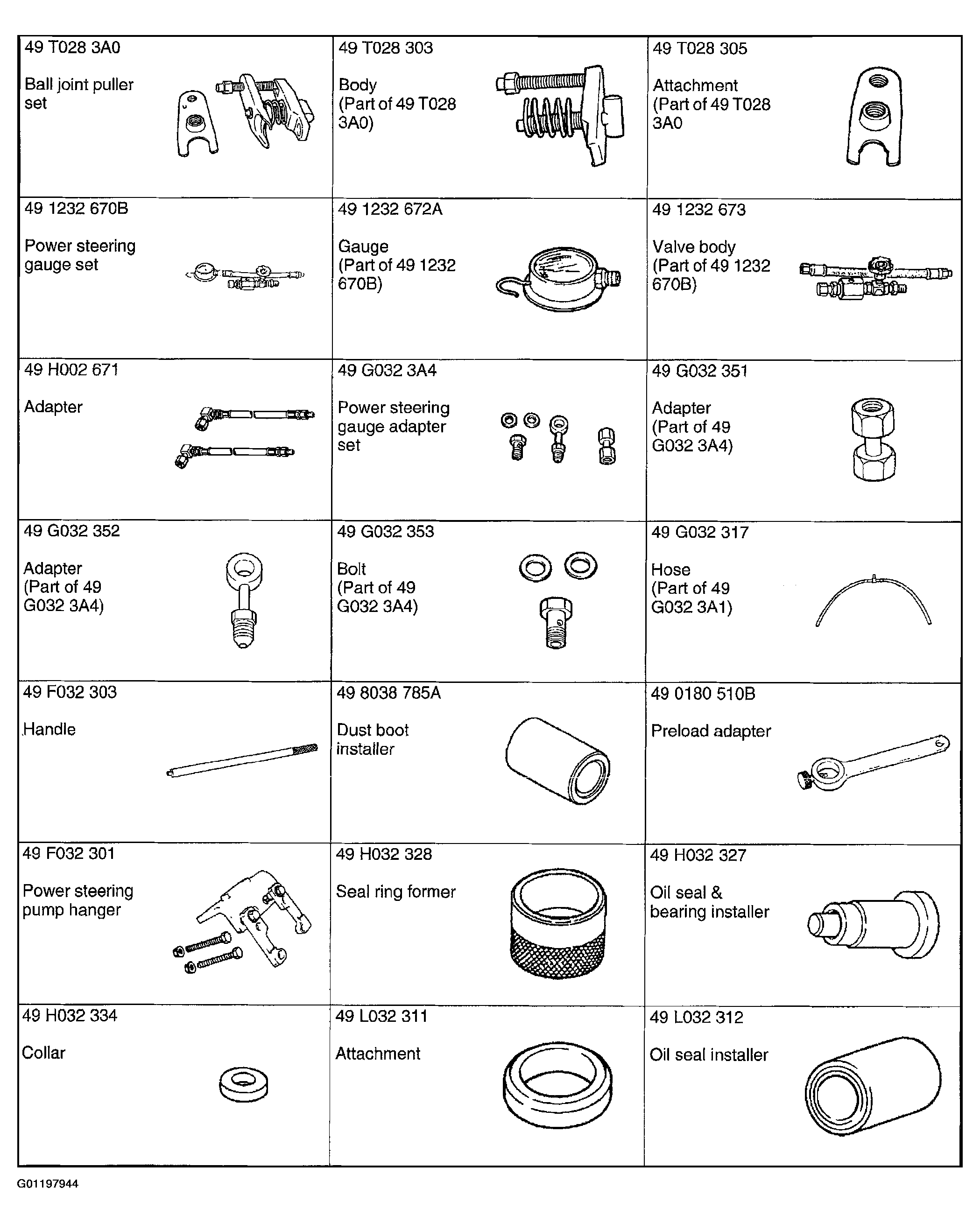

Fig 1: Identifying Steering System SSTs (1 Of 2)
G01197944Courtesy of MAZDA MOTORS CORP.

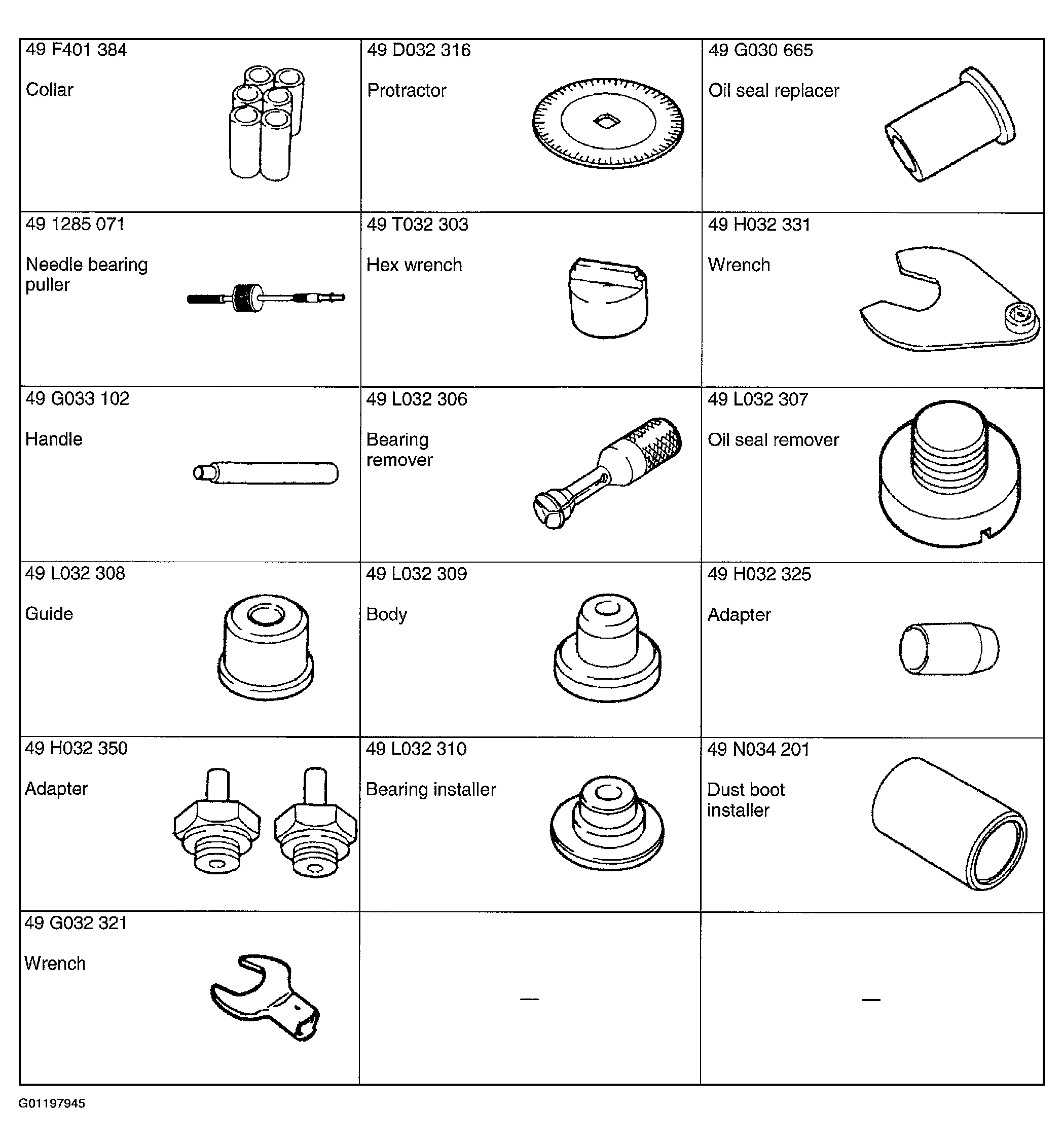

Fig 2: Identifying Steering System SSTs (2 Of 2)
G01197945Courtesy of MAZDA MOTORS CORP.
