Front Stabilizer Removal/Installation: Notes

  1. Remove the crossmember. See FRONT CROSSMEMBER REMOVAL/INSTALLATION .
  2. Remove in the order indicated in the table.

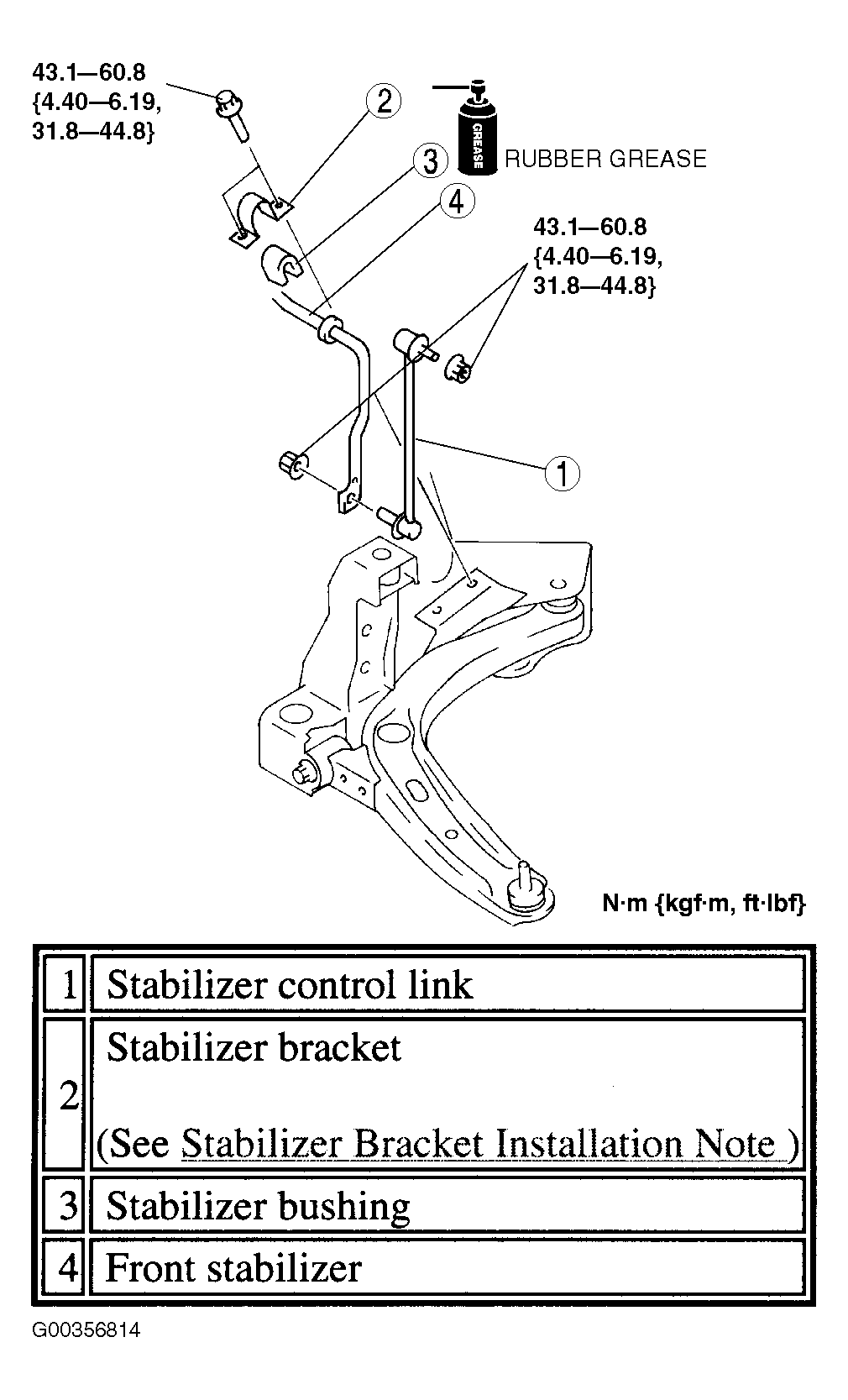

    Fig 1: Removing Front Stabilizer
    G00356814Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Inspect the front wheel alignment and adjust it if necessary.
