Stabilizer Bracket Installation Note

  1. Apply rubber grease to the inside surface of the stabilizer bushing.
  2. Align the bushing with the inside of the positioning plate on the stabilizer bar.

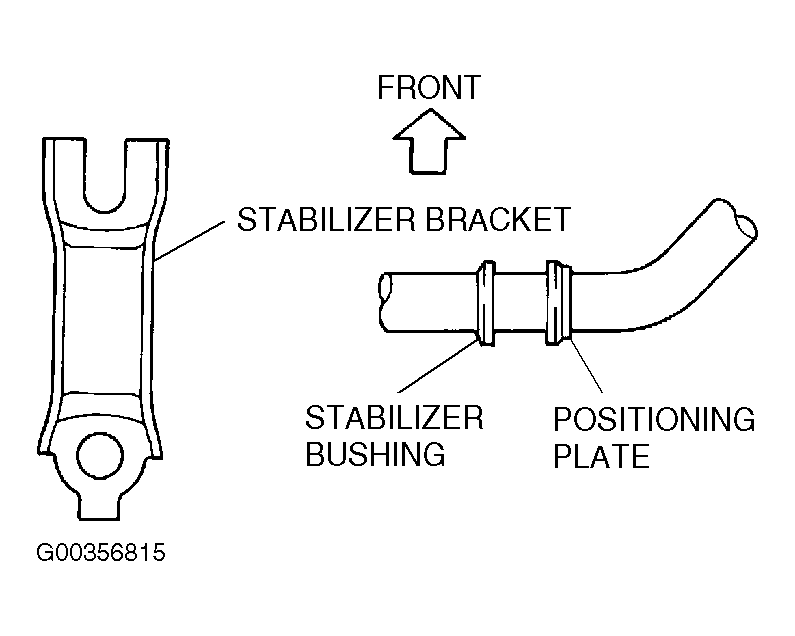

    Fig 1: Installing Stabilizer Bracket
    G00356815Courtesy of MAZDA MOTORS CORP.
  3. Install the stabilizer bracket.
