Steering Wheel And Column Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, verify that the horn sounds.
   • If the horn does not sound, remove the air bag module and connect the module connectors.

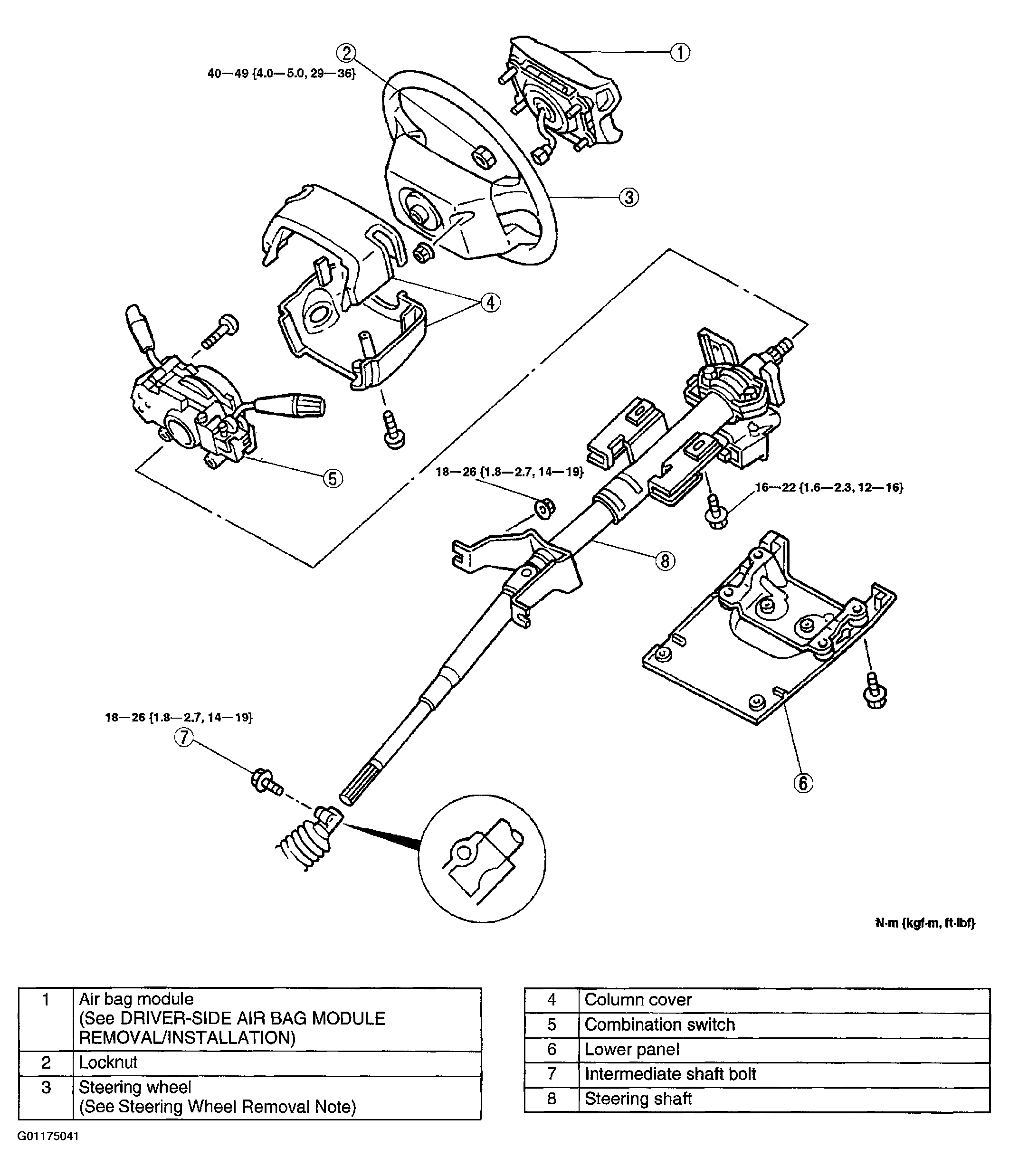

Fig 1: Removing & Installing Steering Wheel & Column

Courtesy of MAZDA MOTORS CORP.
