Holder Assembly Note

  1. Apply grease to the U-gasket and O-ring.
  2. Assemble the U-gasket and O-ring into the holder.
  3. Assemble the holder using the SST  .
    Fig 1: Assembling Holder
    G01175102Courtesy of MAZDA MOTORS CORP.
  4. Stake the holder to the cylinder using a punch.

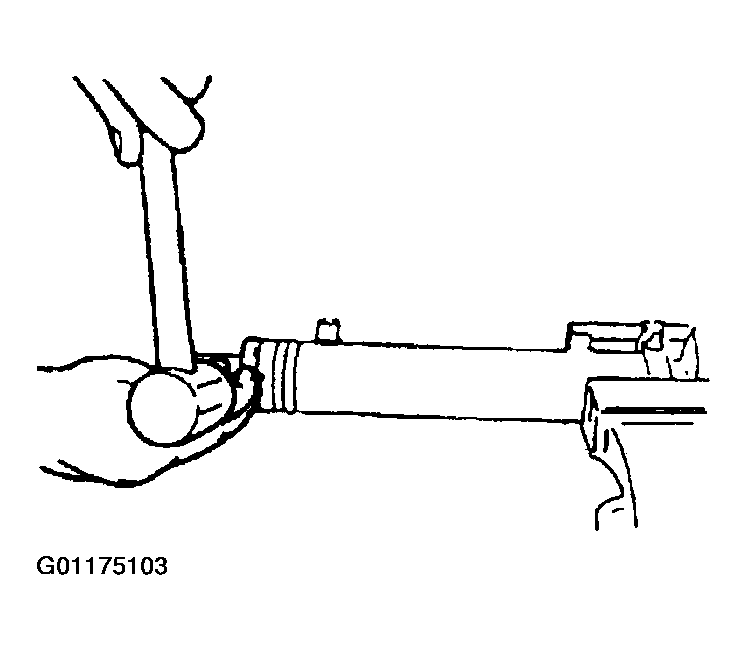

    Fig 2: Staking Holder To Cylinder Using A Punch
    G01175103Courtesy of MAZDA MOTORS CORP.
