Abs HU/Cm Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

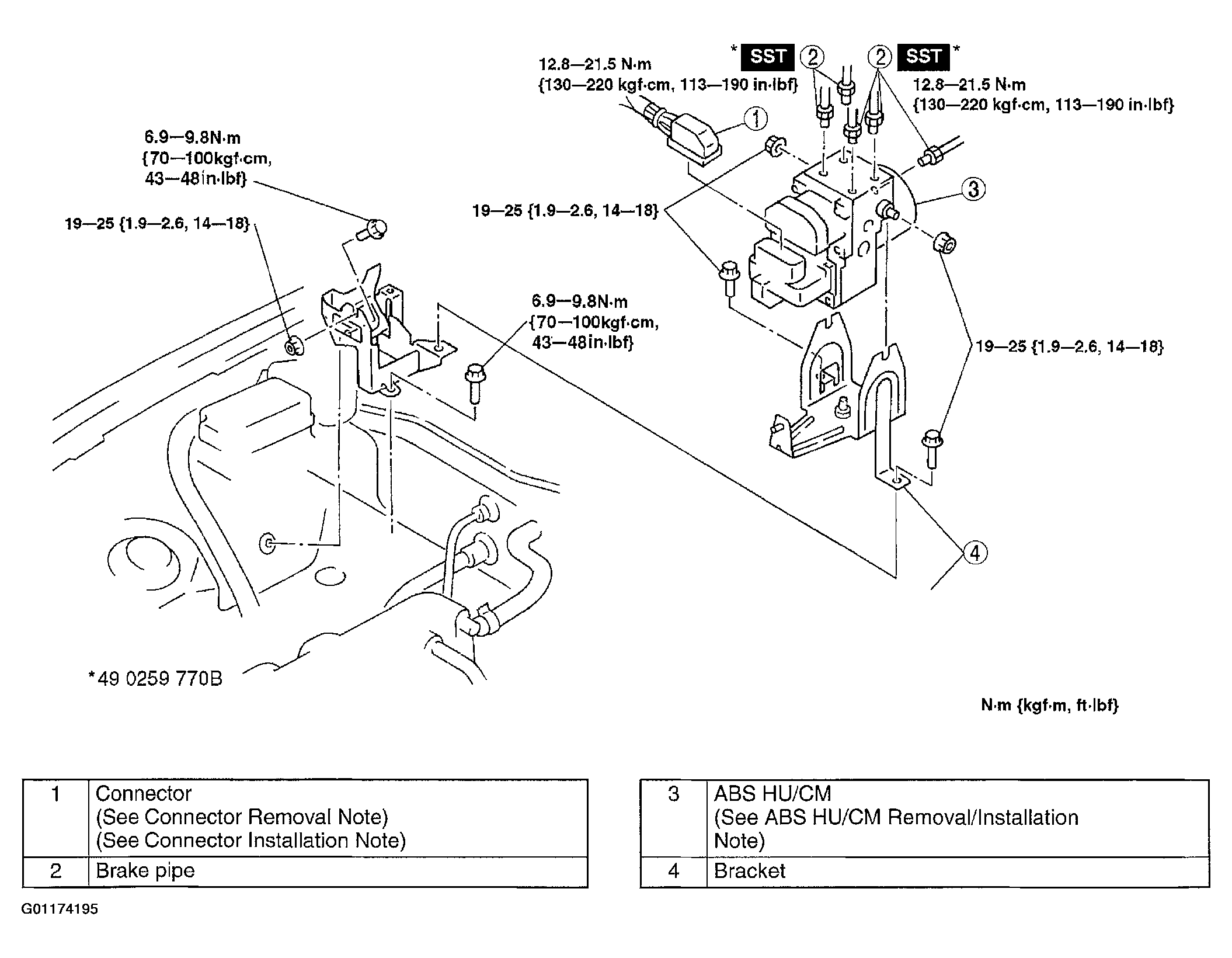

Fig 1: ABS HU/CM Removal & Installation Sequence Table
G01174195Courtesy of MAZDA MOTORS CORP.
