EC-At Control System (FS)/Engine Control System (FS) 2.0L

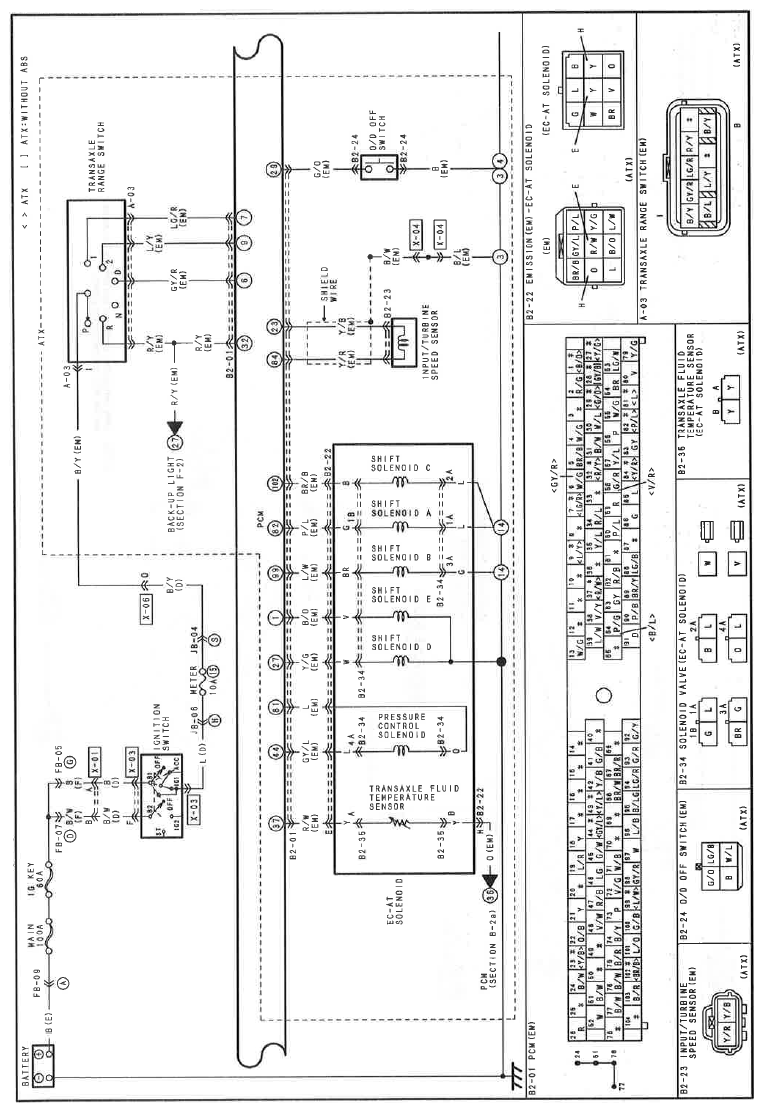

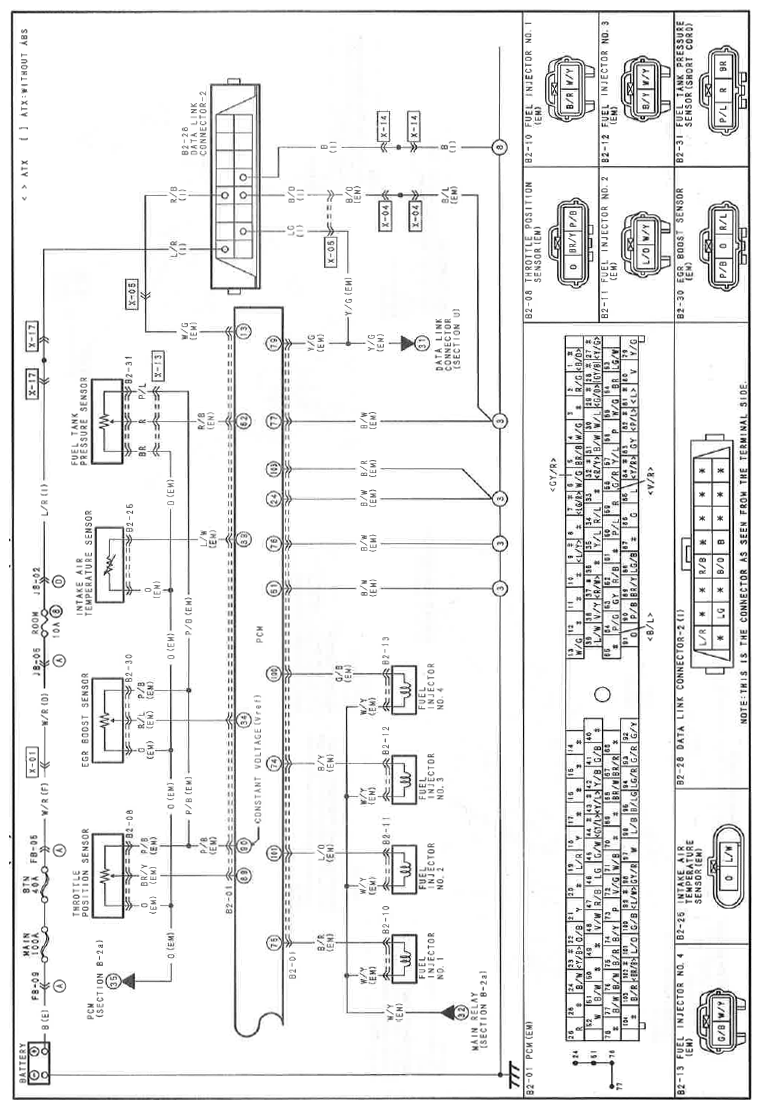

Fig 1: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2a; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

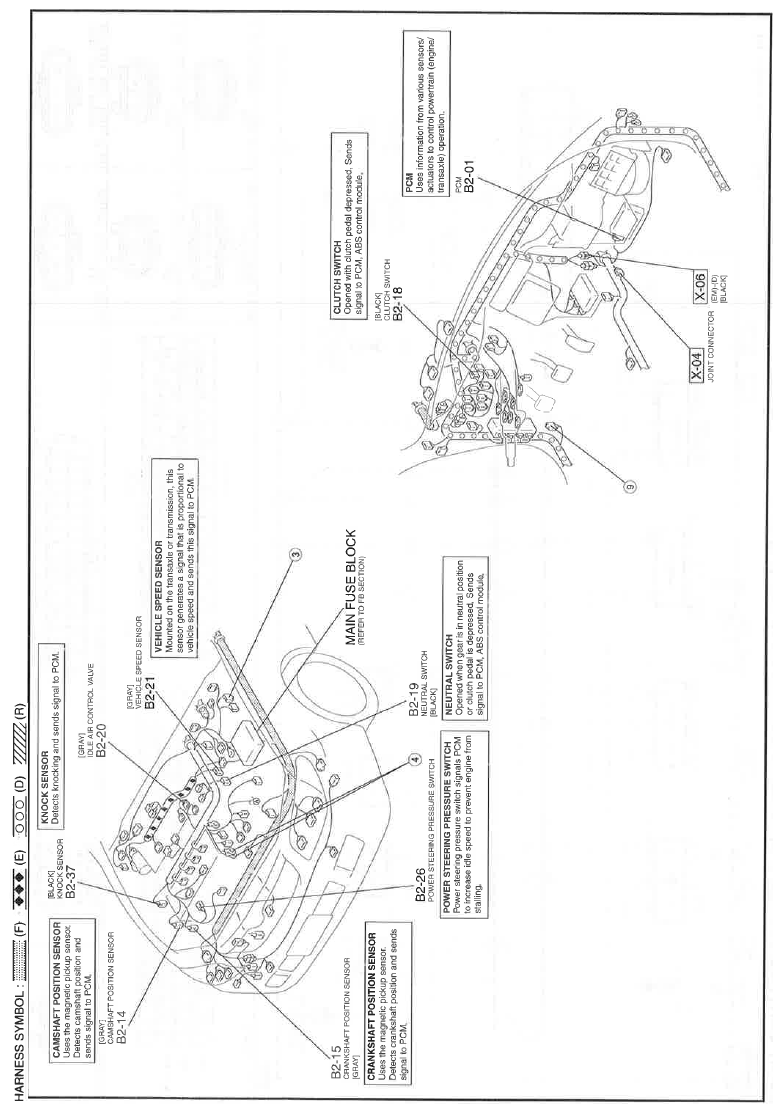

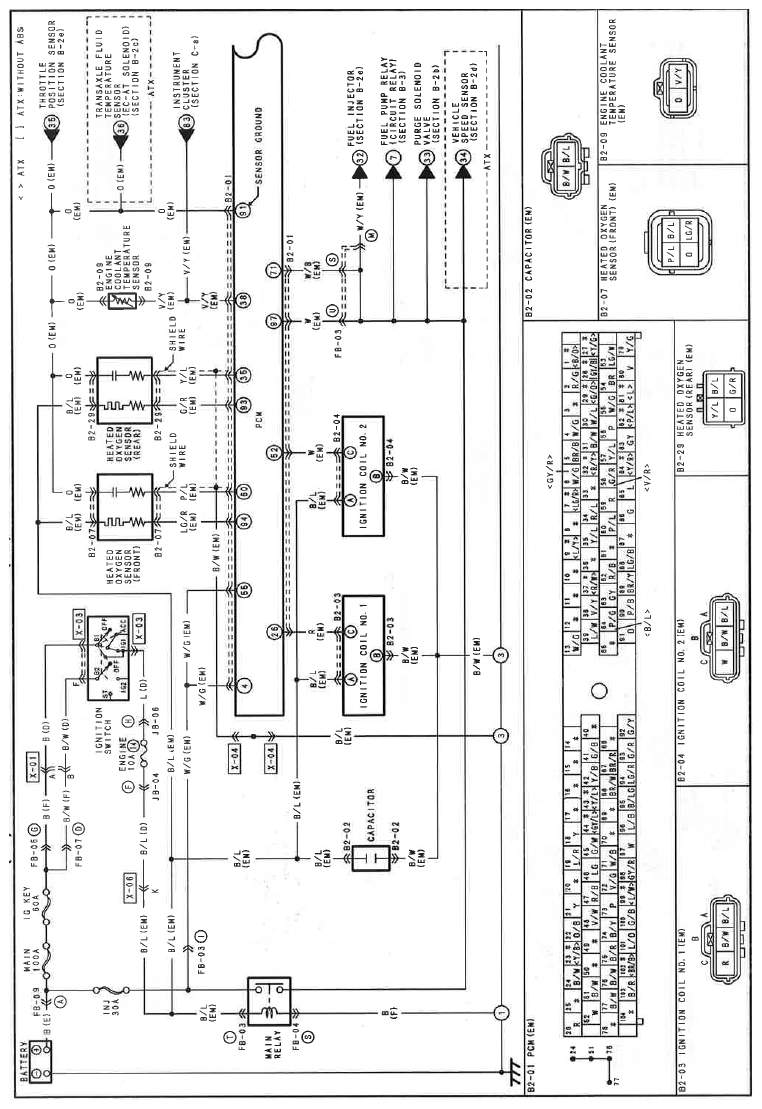

Fig 2: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2a; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

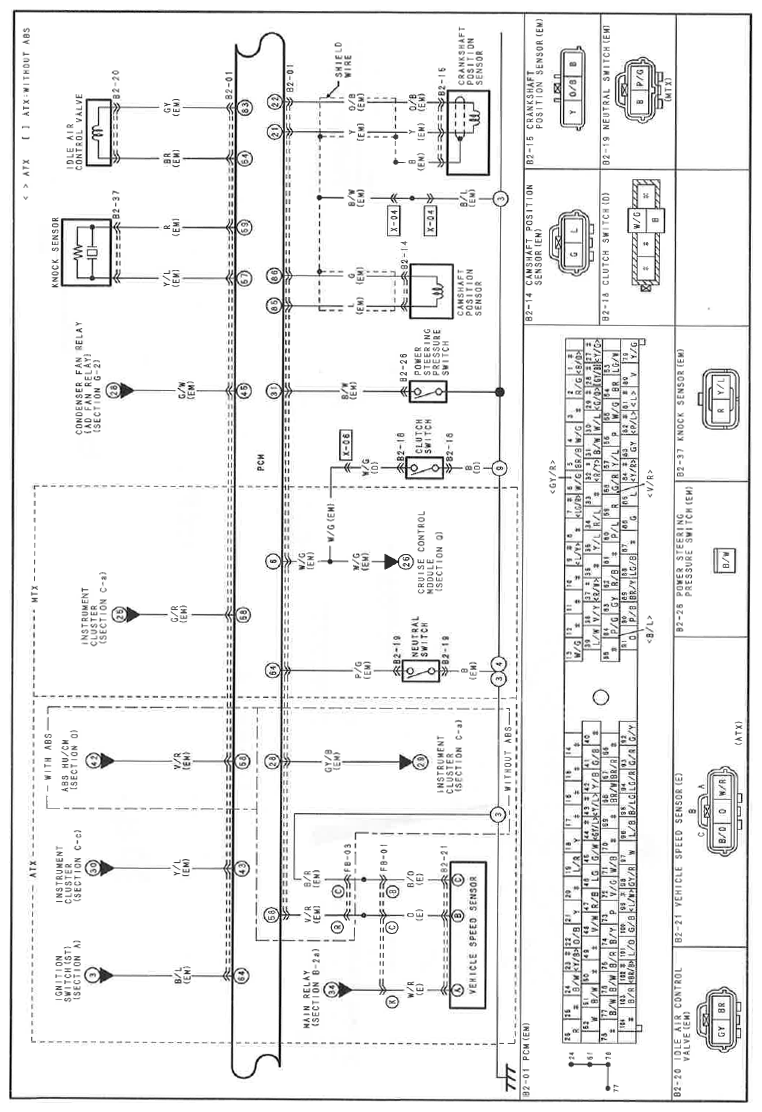

Fig 3: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2b; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

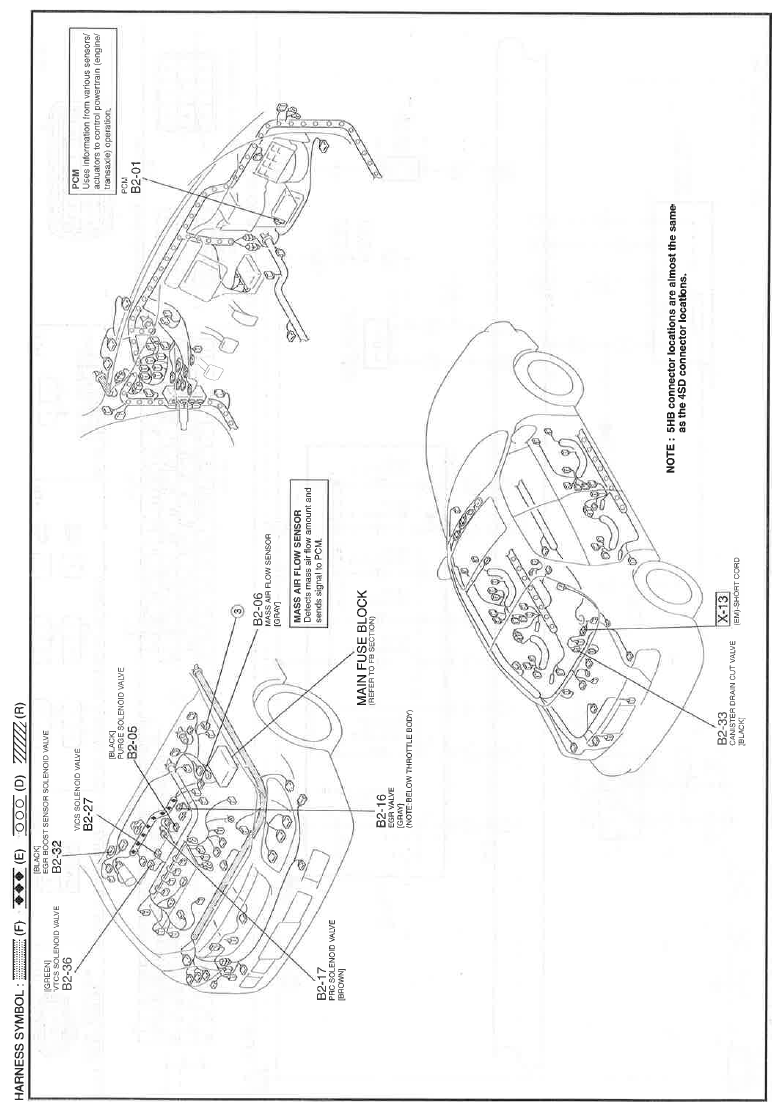

Fig 4: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2b; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

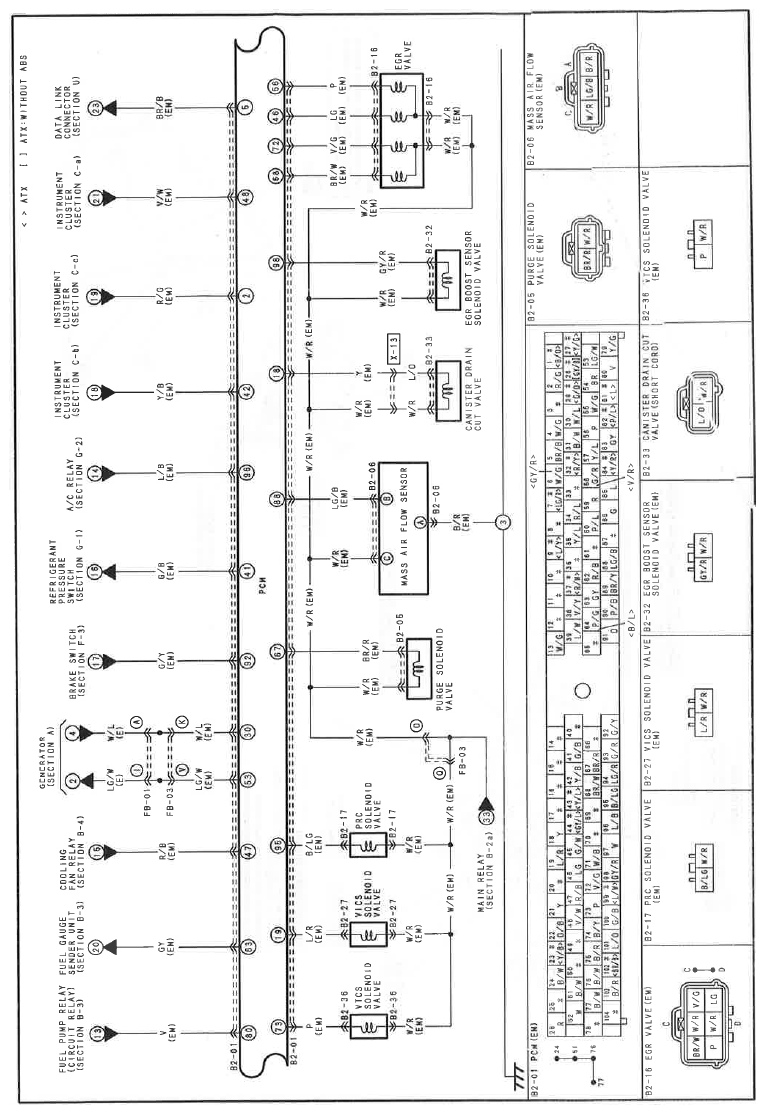

Fig 5: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2c; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

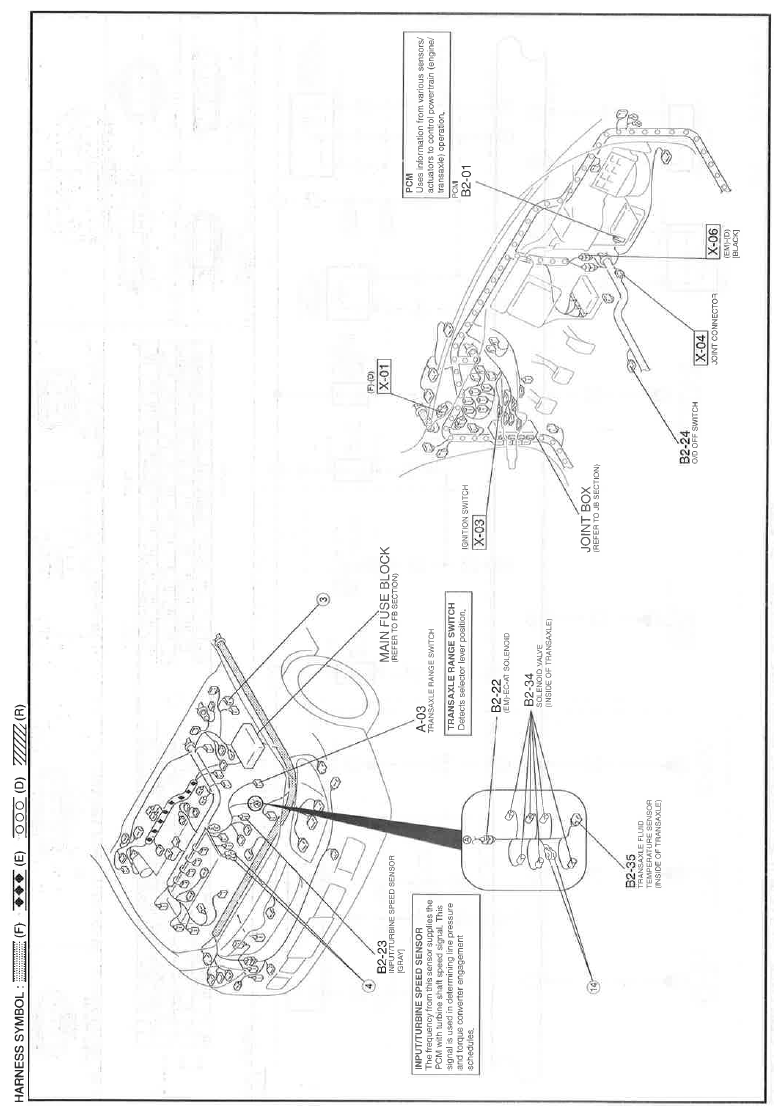

Fig 6: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2c; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 7: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2d; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

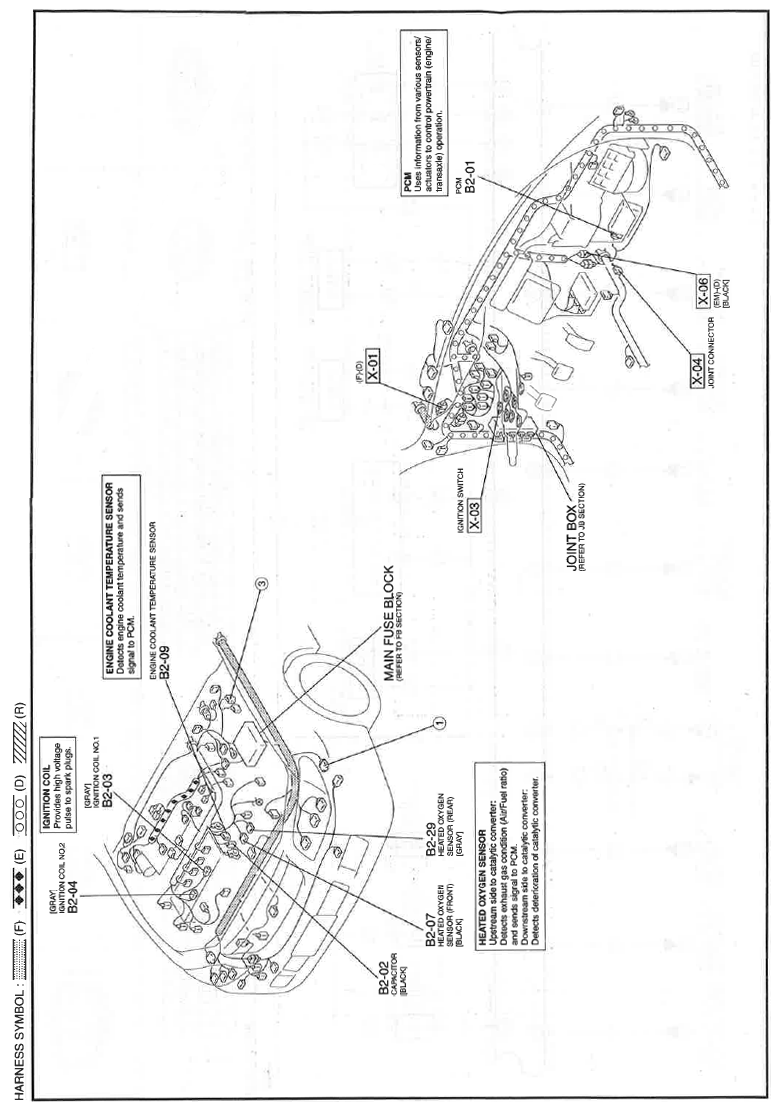

Fig 8: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2d; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 9: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2e; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

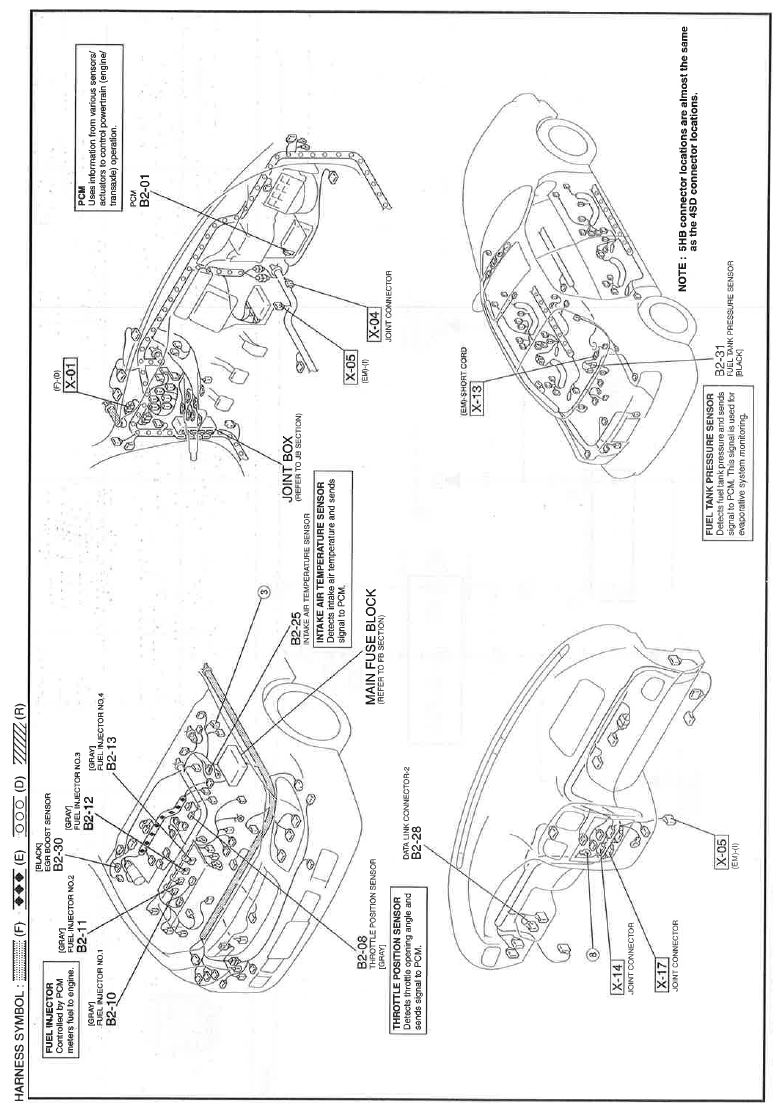

Fig 10: EC-AT Control System (FS) And Engine Control System (FS) 2.0L Wiring Diagram (B-2e; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
