Main Bearing Cap Assembly Note
- Inspect main bearing cap bolts. See MAIN BEARING CAP BOLT INSPECTION .

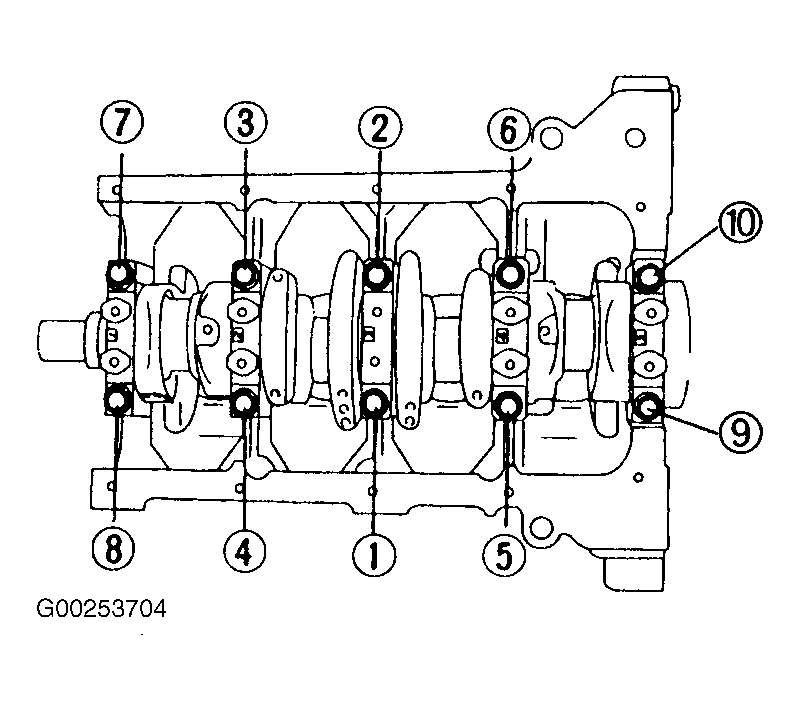

- Tighten bolts to specification in the order shown. See Figure. See TORQUE SPECIFICATIONS .
- Put a paint mark on each bolt head.
- Using the mark as a reference, tighten bolts by turning each an additional 85-90 degrees in tightening sequence.
