Timing Belt Installation Note

Verify that the timing belt pulley mark and camshaft pulley marks are aligned with the timing marks as shown.

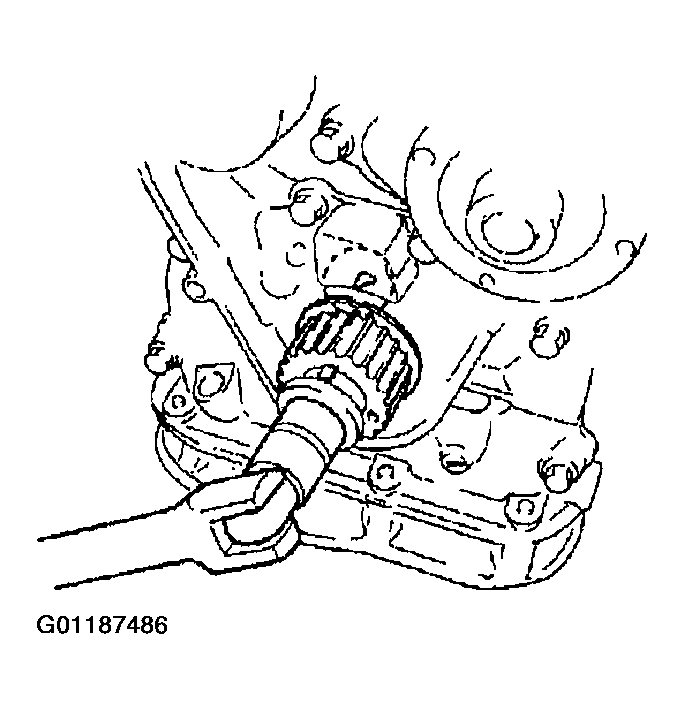

Fig 1: Identifying Crankshaft Timing Mark
Courtesy of MAZDA MOTORS CORP.

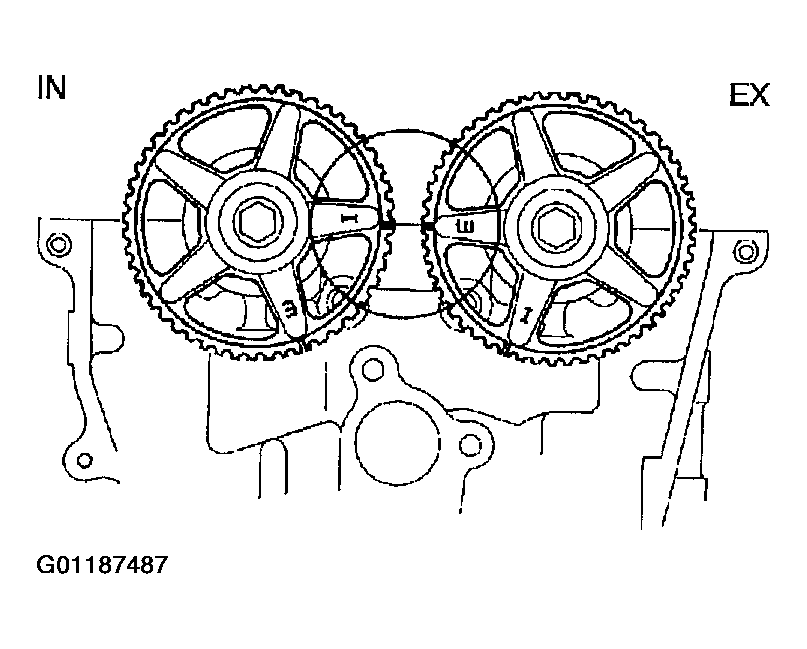

Fig 2: Identifying Camshaft Pulley Marks
Courtesy of MAZDA MOTORS CORP.
Install the timing belt so that there is no looseness at the idler side.

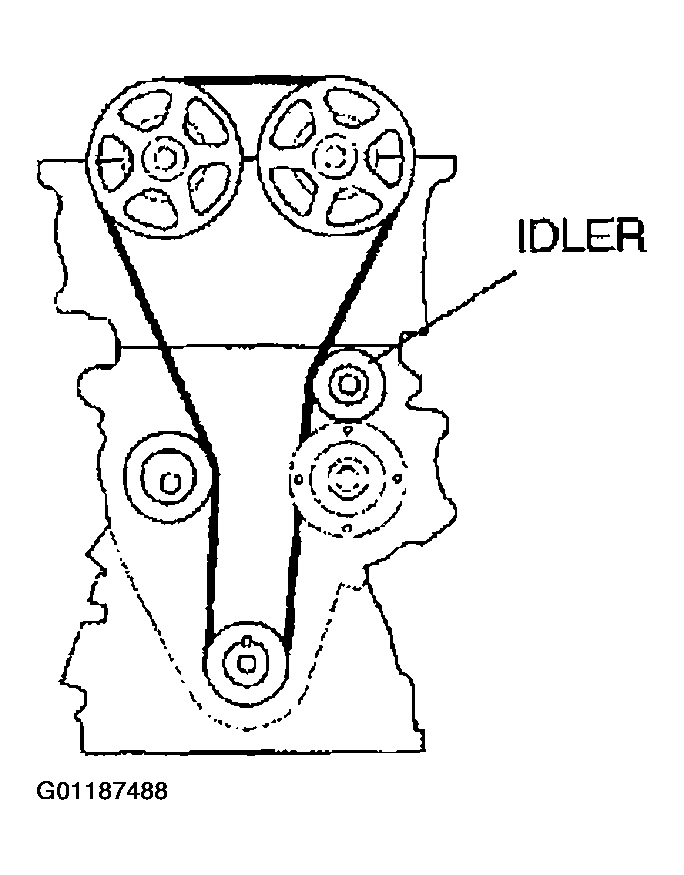

Fig 3: Identifying Timing Belt Idler
Courtesy of MAZDA MOTORS CORP.
Turn the crankshaft clockwise twice, and align the timing marks.
Verify that all timing marks are correctly aligned.
- If not aligned, remove the timing belt and repeat from Step 1.
CAUTION: Be sure not to apply tension other than that of the tensioner spring.
Turn the tensioner clockwise using an Allen wrench.

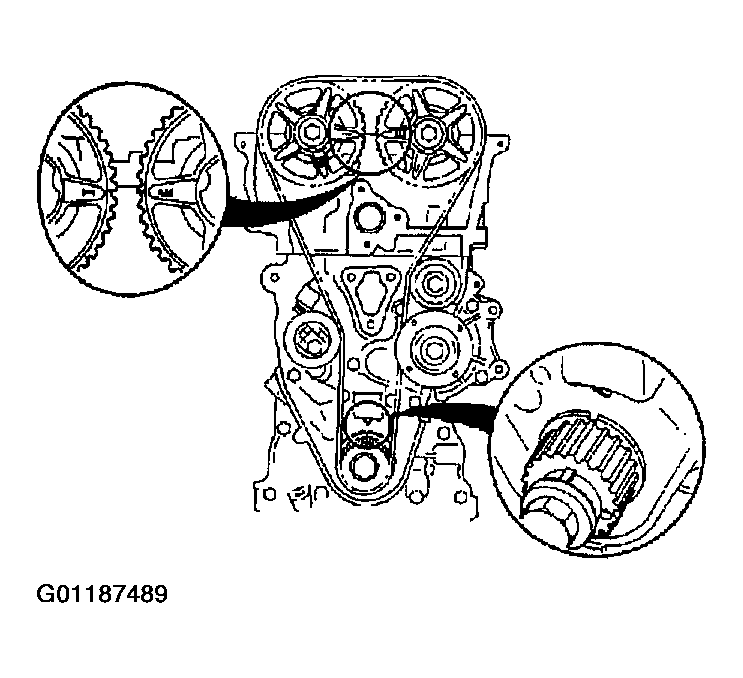

Fig 4: Aligning Timing Marks
Courtesy of MAZDA MOTORS CORP.
Connect the tensioner to the hook pin.

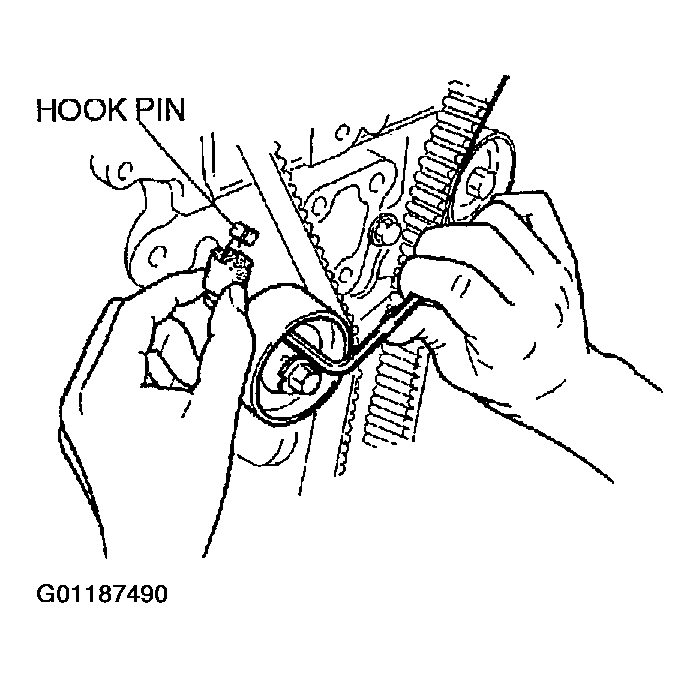

Fig 5: Connecting Tensioner Hook Pin
Courtesy of MAZDA MOTORS CORP.
Turn the crankshaft clockwise twice, and verify that all timing marks are aligned.
- If not aligned, repeat from Step 1.

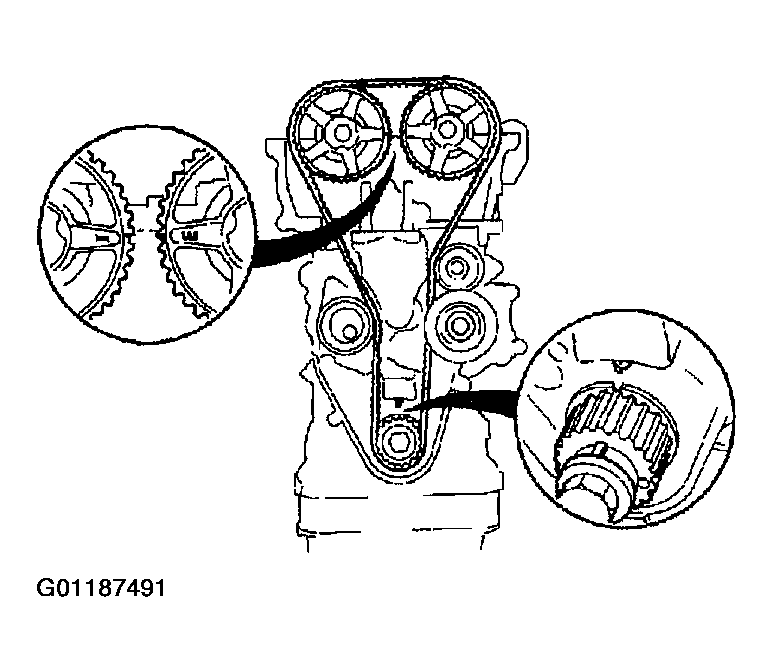

  Fig 6: Aligning Timing Marks
  Courtesy of MAZDA MOTORS CORP.
