Power Window Main Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

When inspecting the passenger's side and the rear, turn the power-cut switch to UNLOCK.
Inspect for continuity between the power window main switch terminals.
- If not as specified, replace the power window main switch.
Connect battery positive voltage to terminal N and ground to the terminal K. Verify that continuity exists.
- If not as specified, replace the power window main switch.

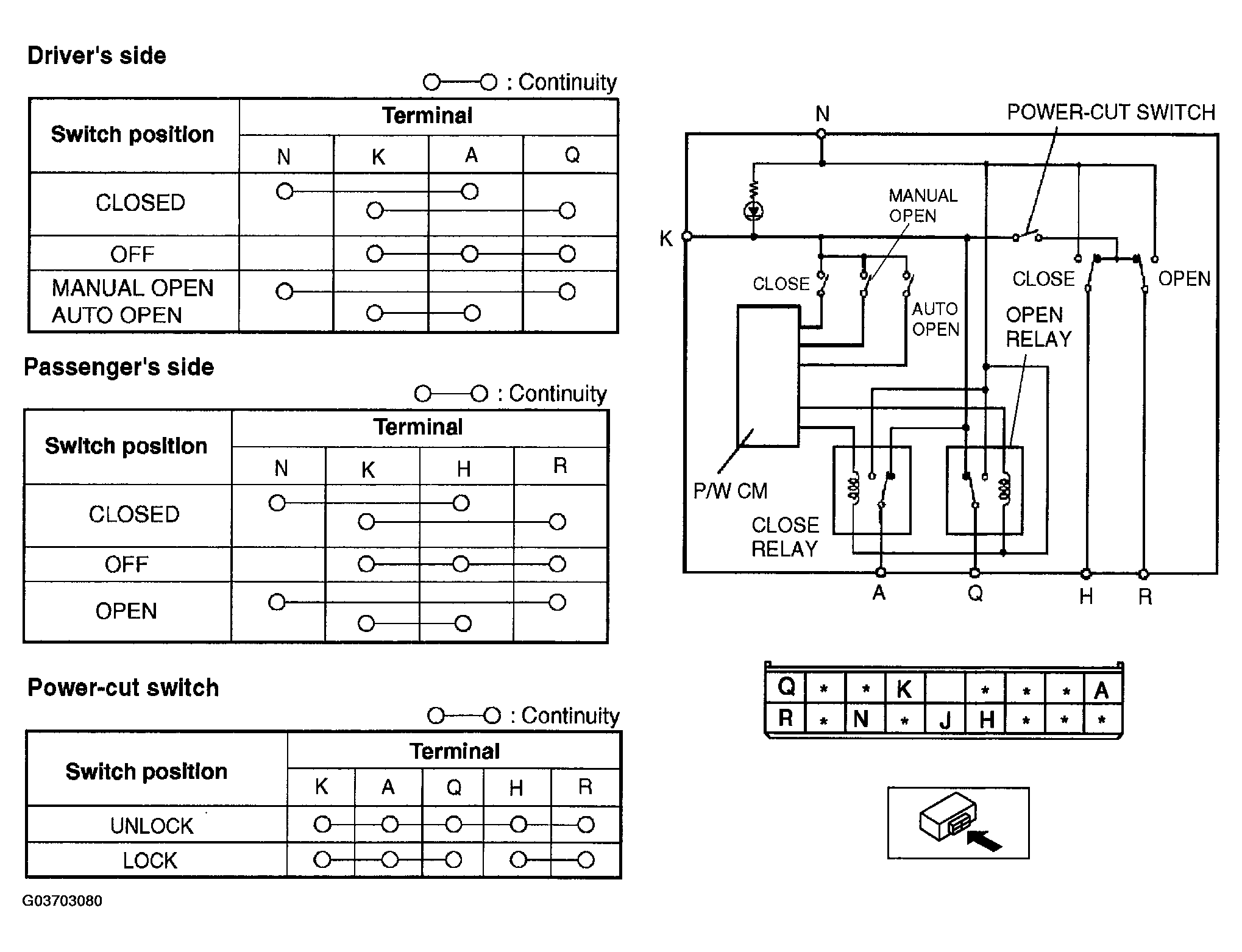

Fig 1: Identifying Power Window Main Switch
Courtesy of MAZDA MOTORS CORP.
