5: PATS Transceiver Module Signal Is Not Received

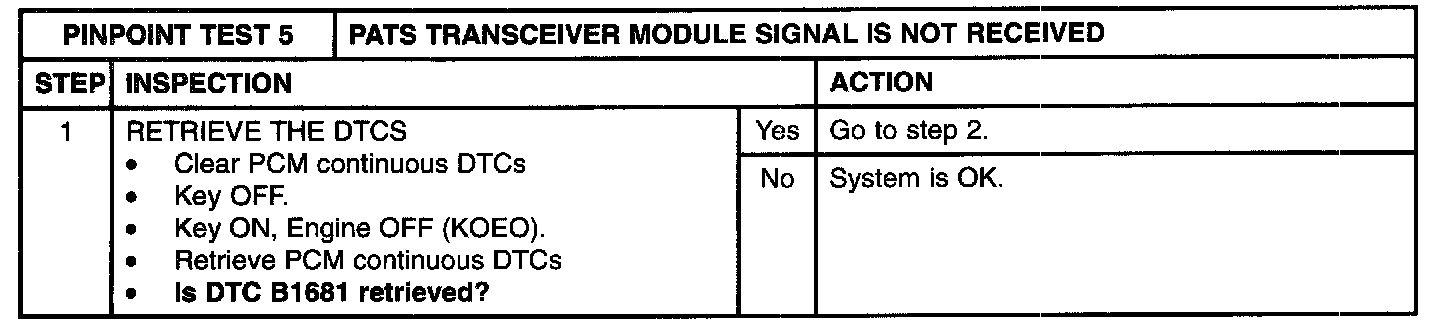

Step 1:

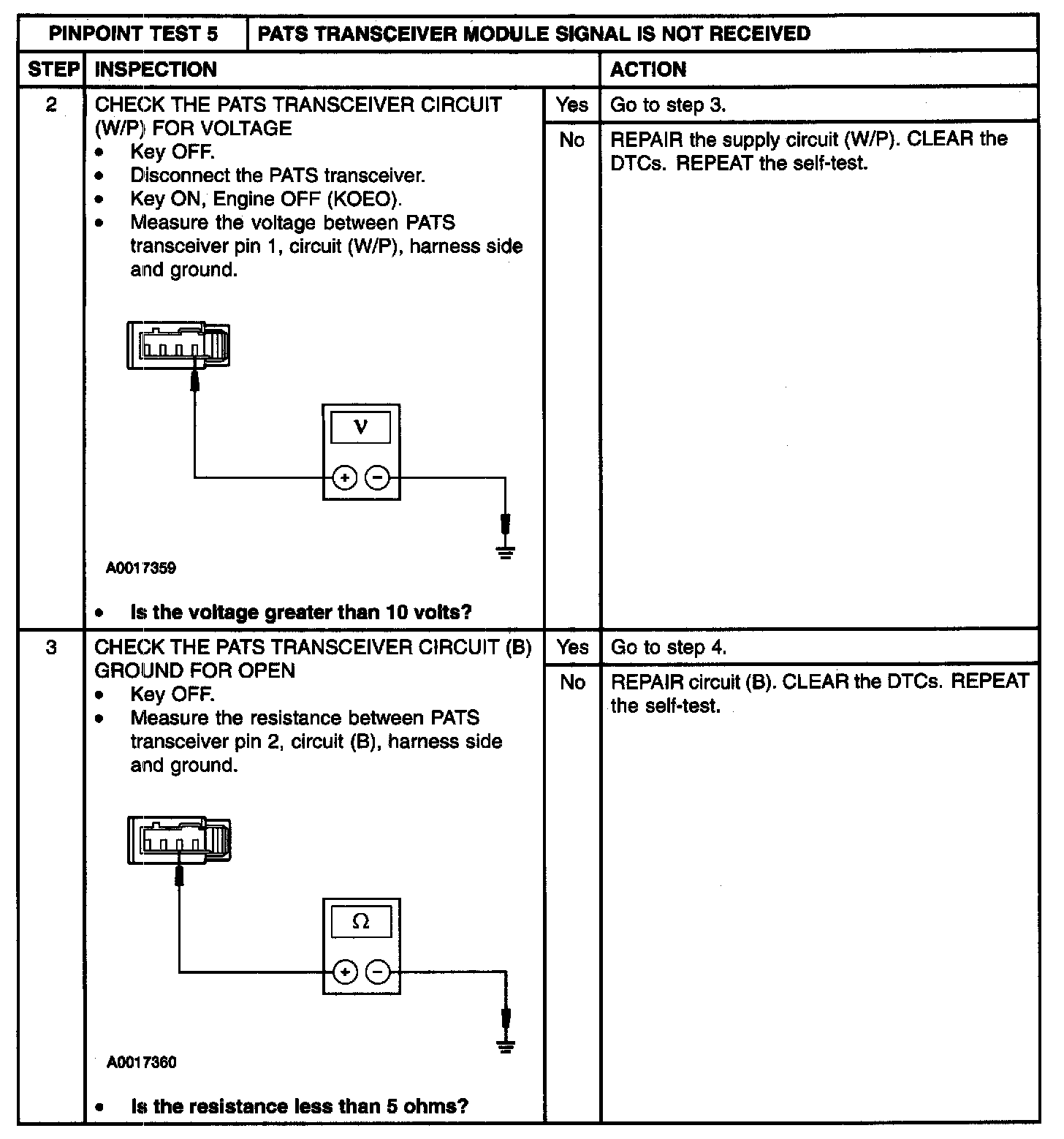

Step 2 - 3:

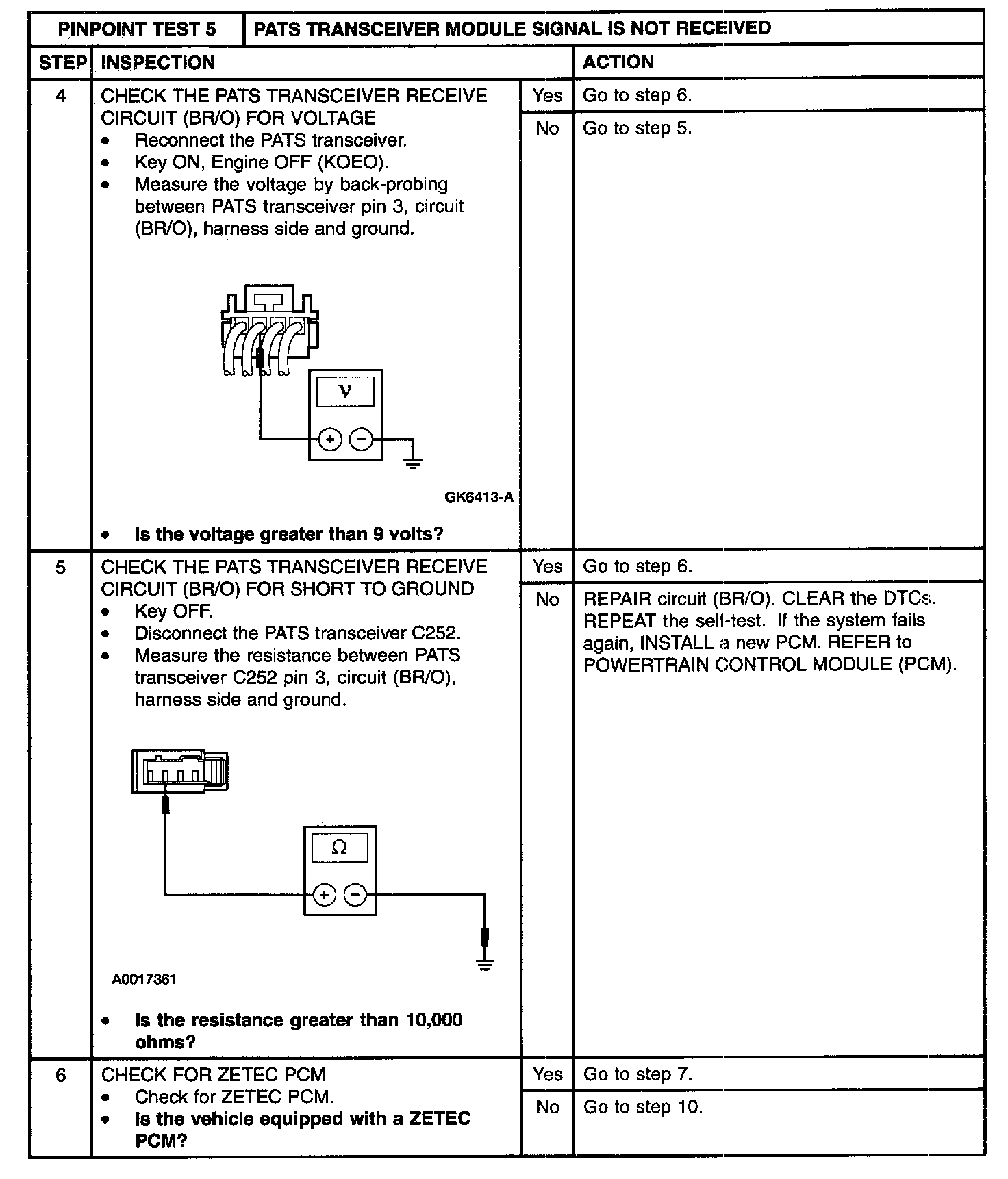

Step 4 - 6:

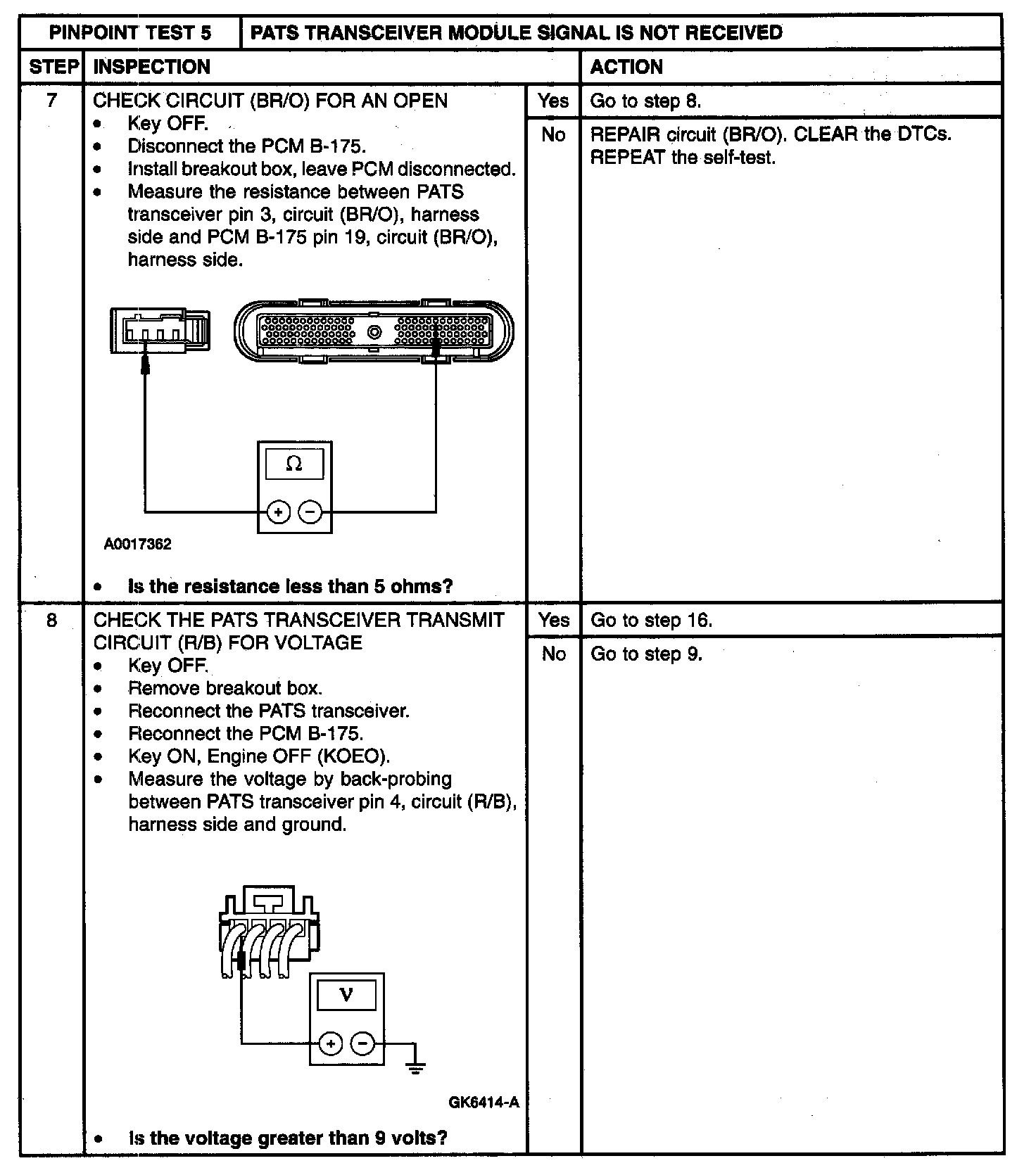

Step 7 - 8:

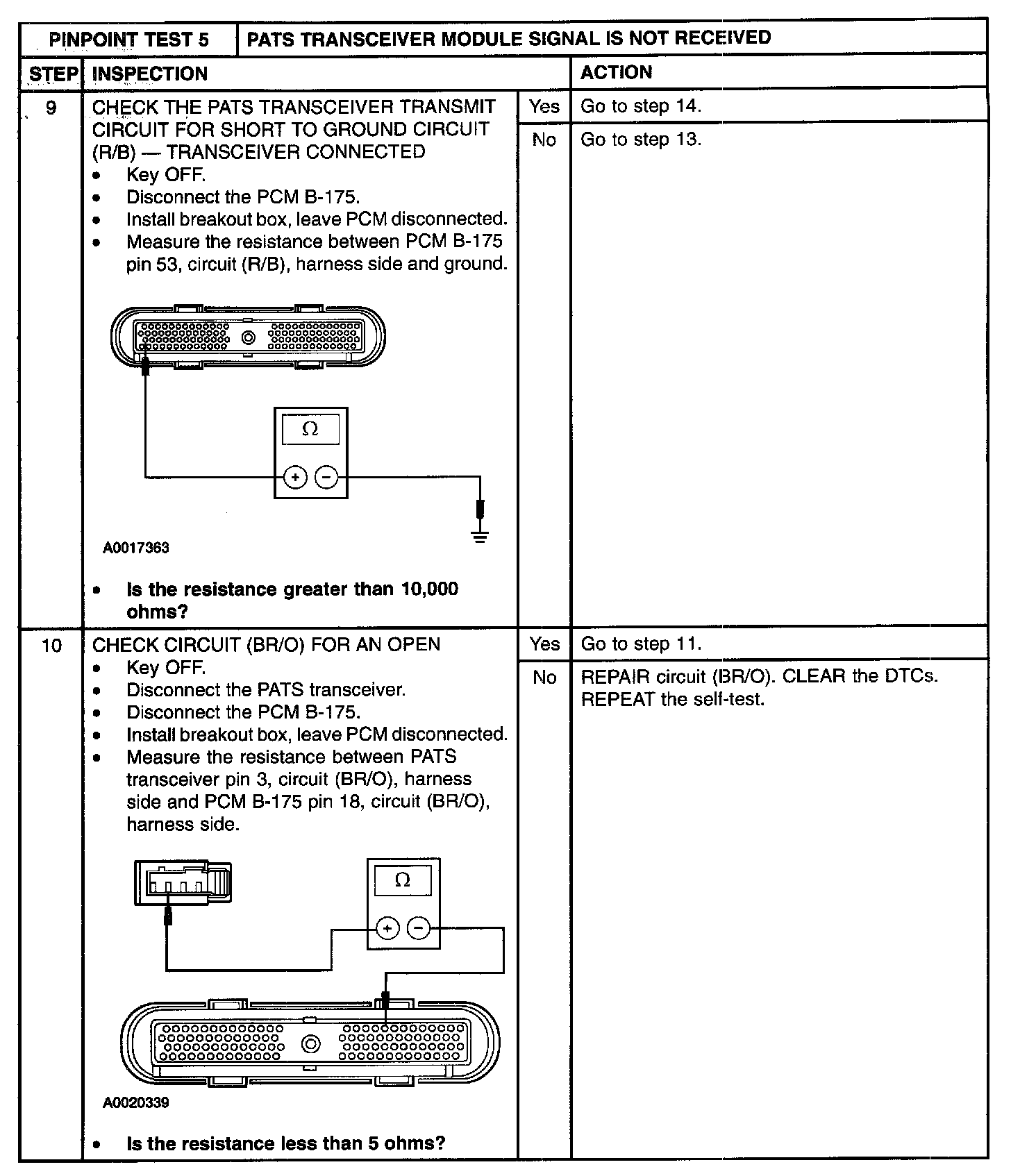

Step 9 - 10:

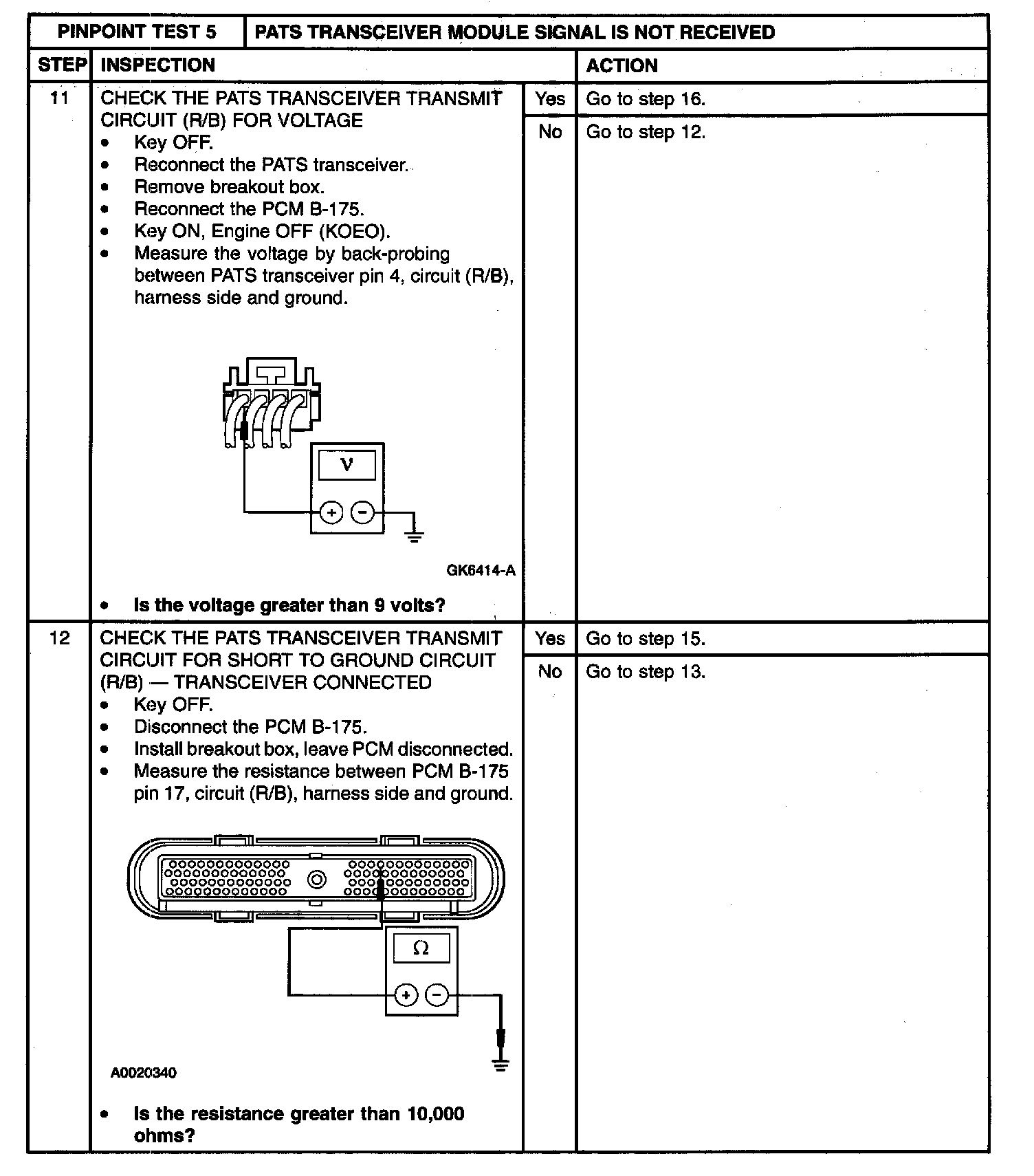

Step 11 - 12:

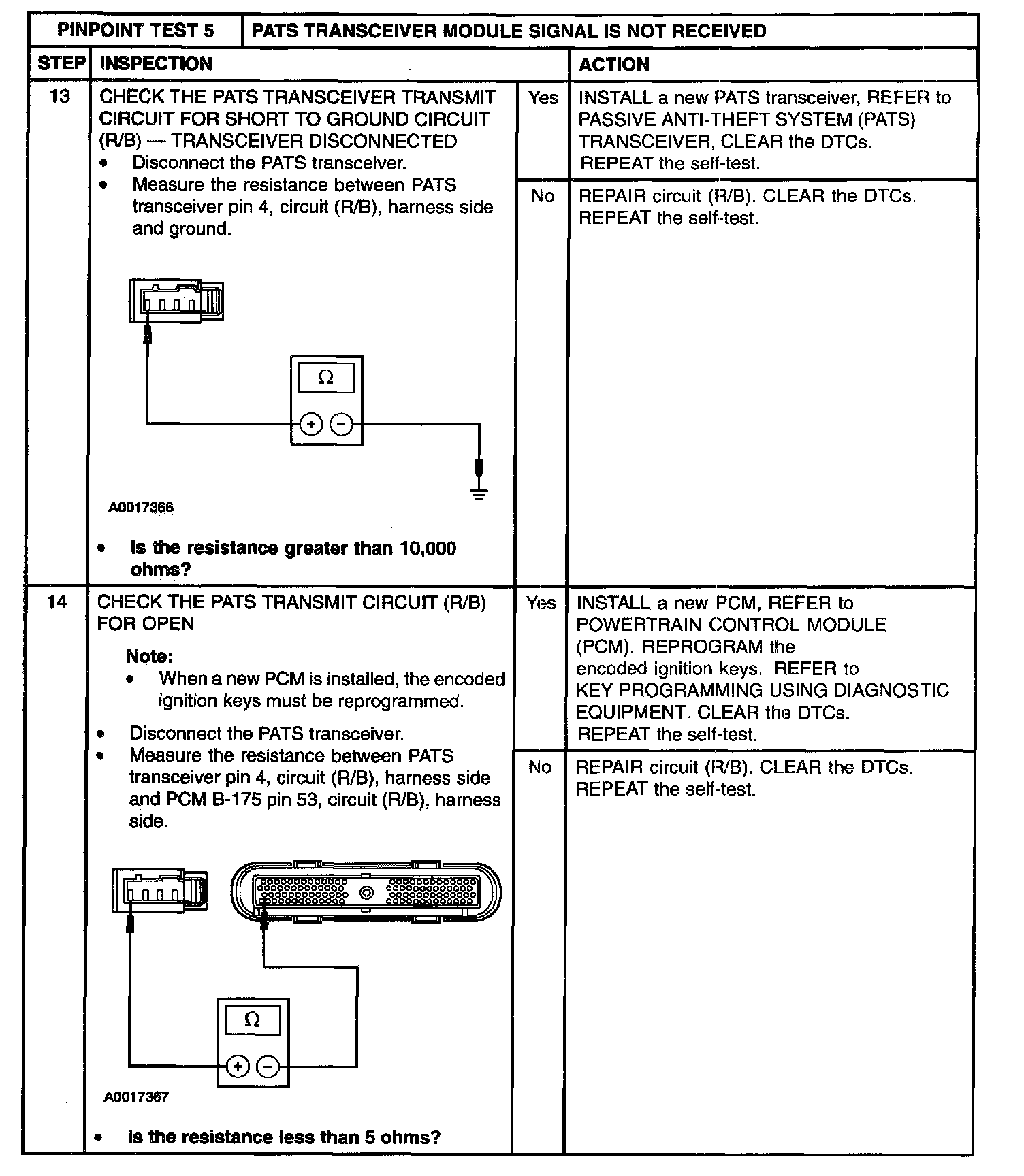

Step 13 - 14:

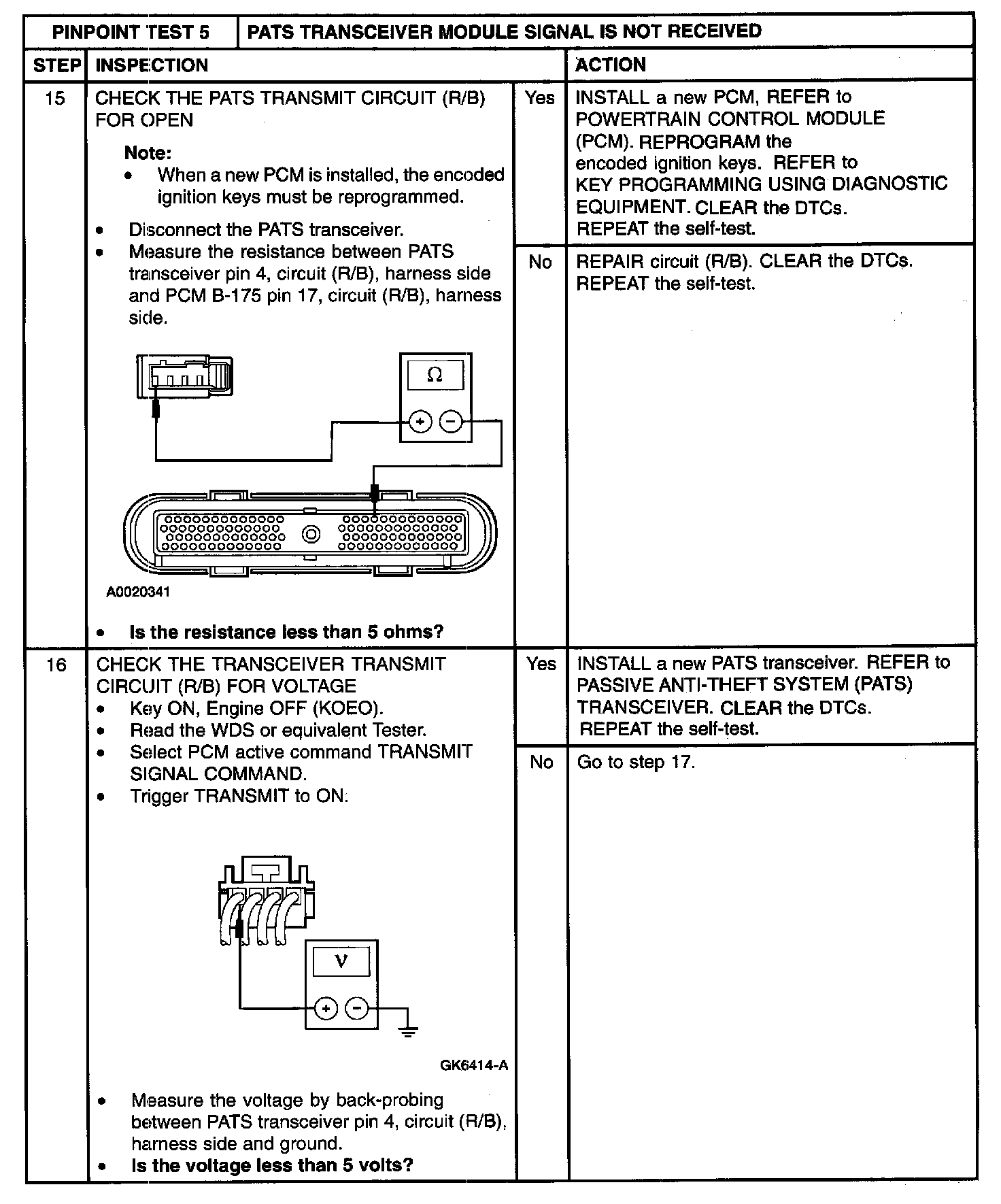

Step 15 - 16:

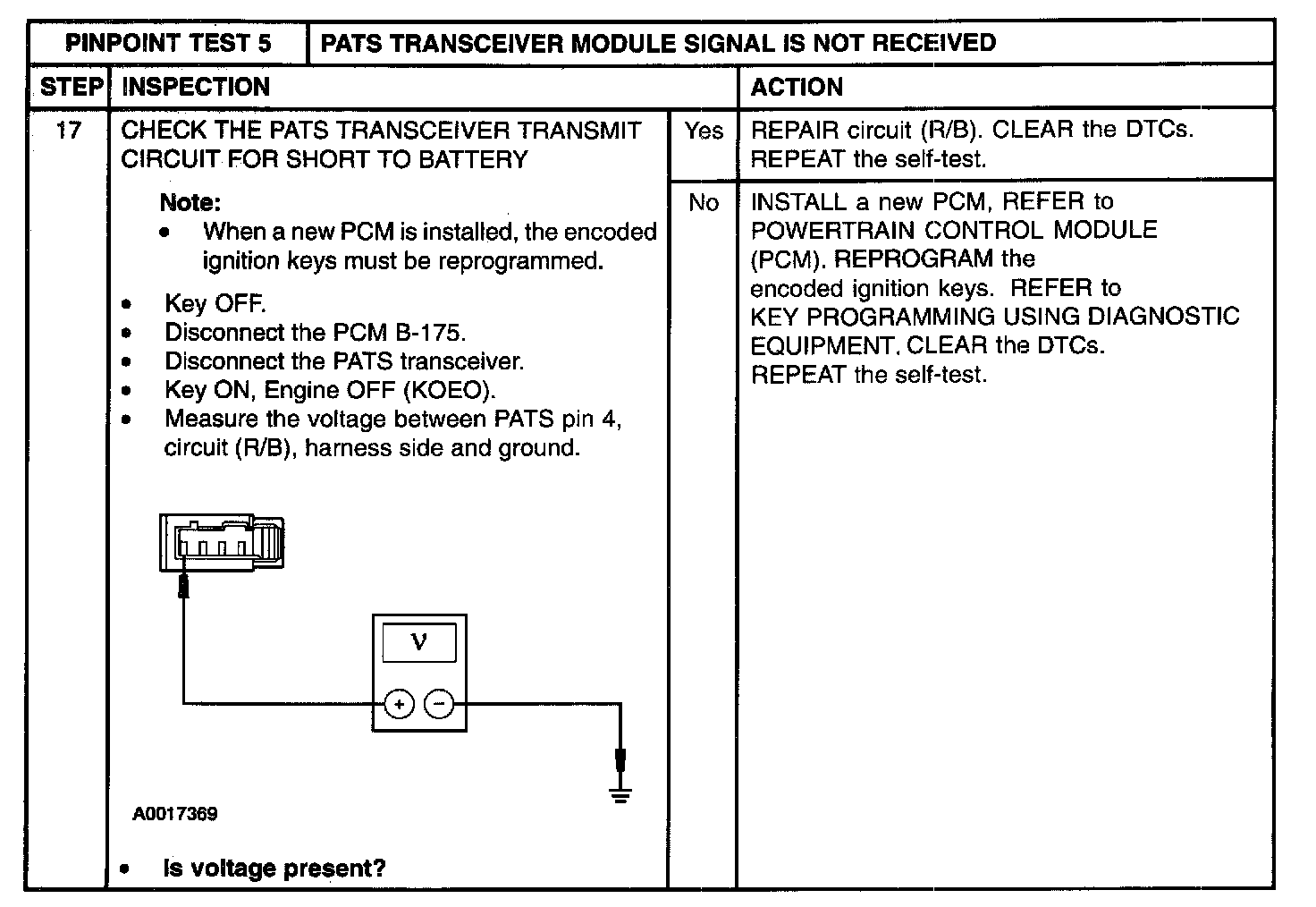

Step 17:
