Automatic Transmission/Transaxle

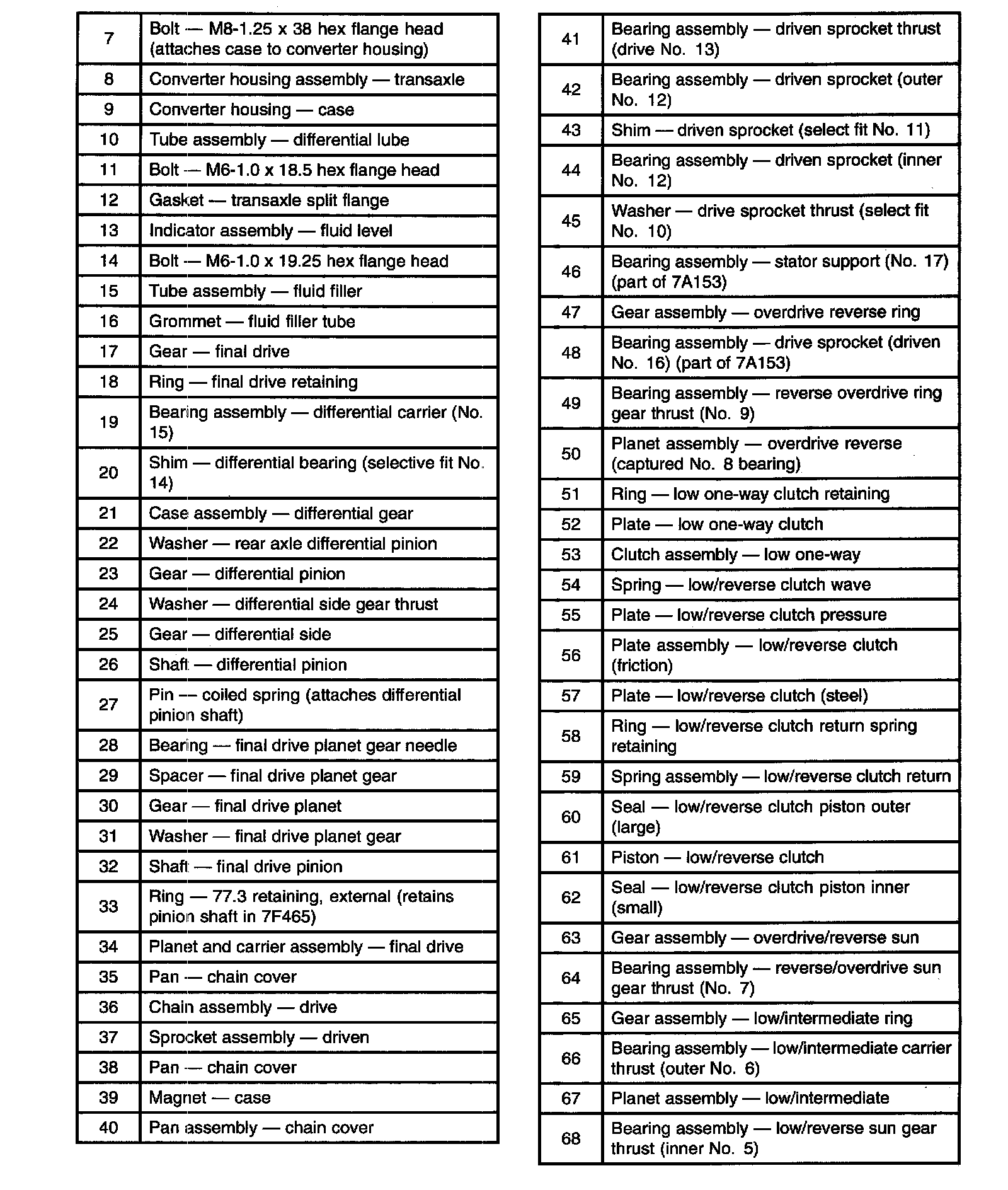

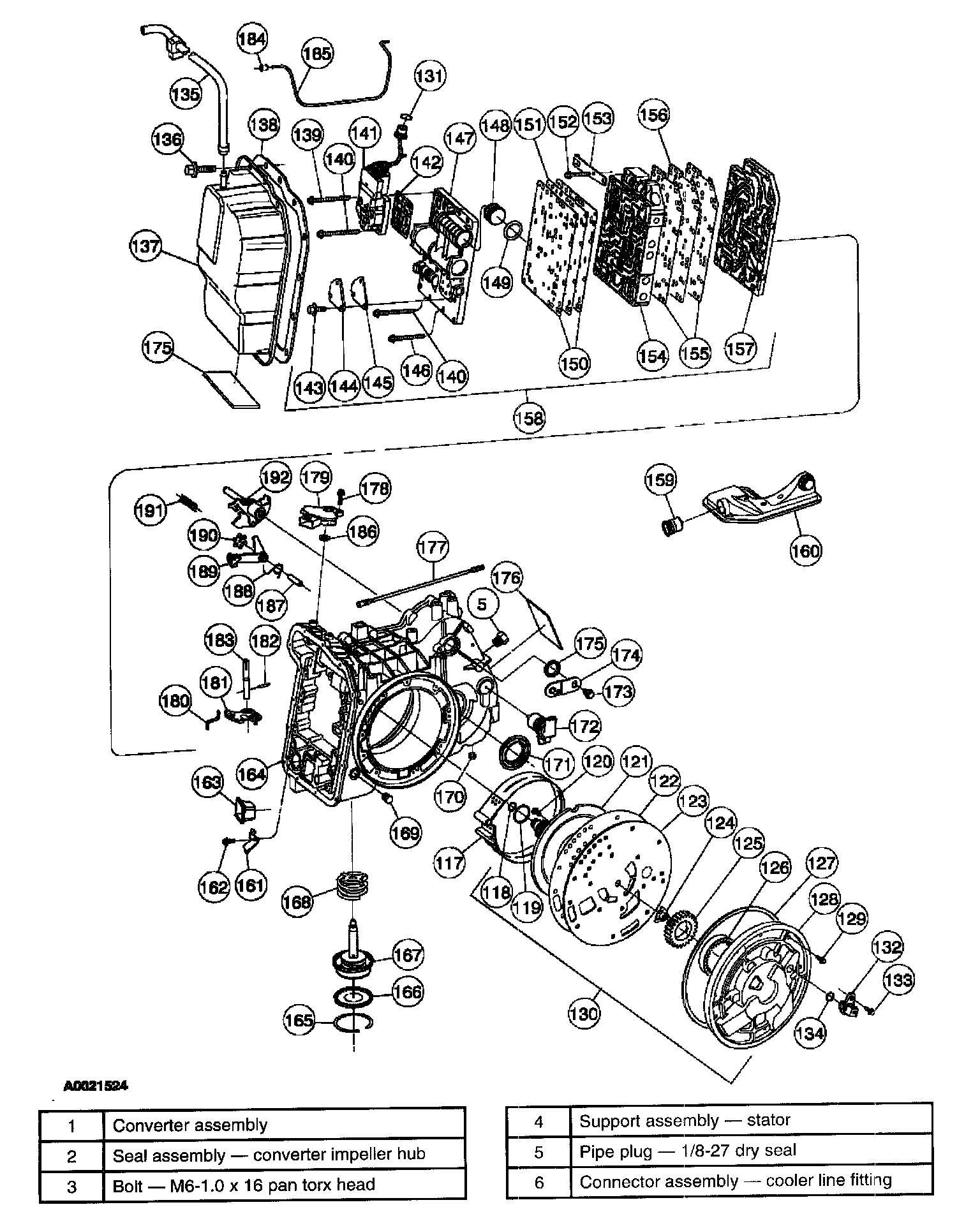

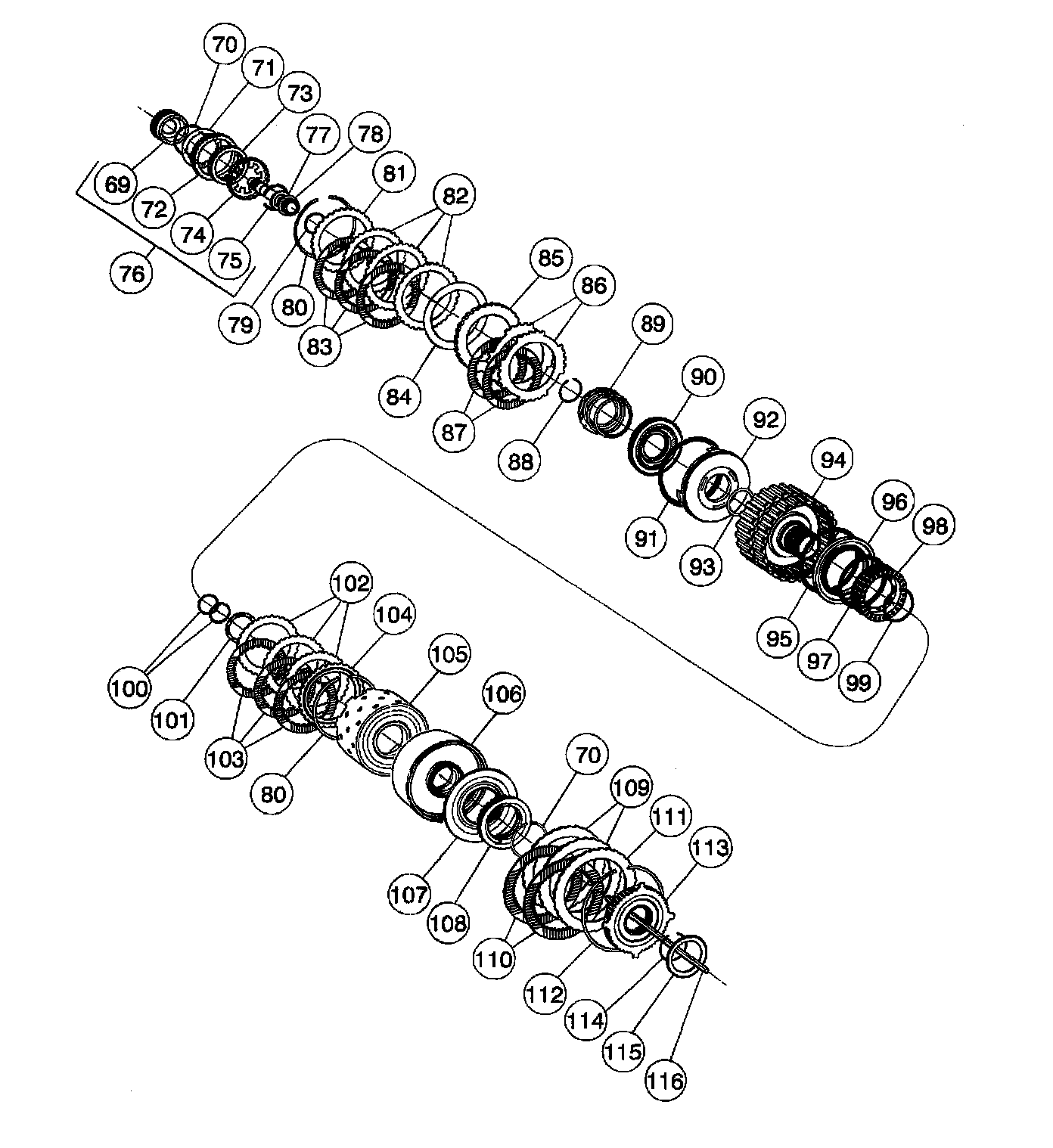

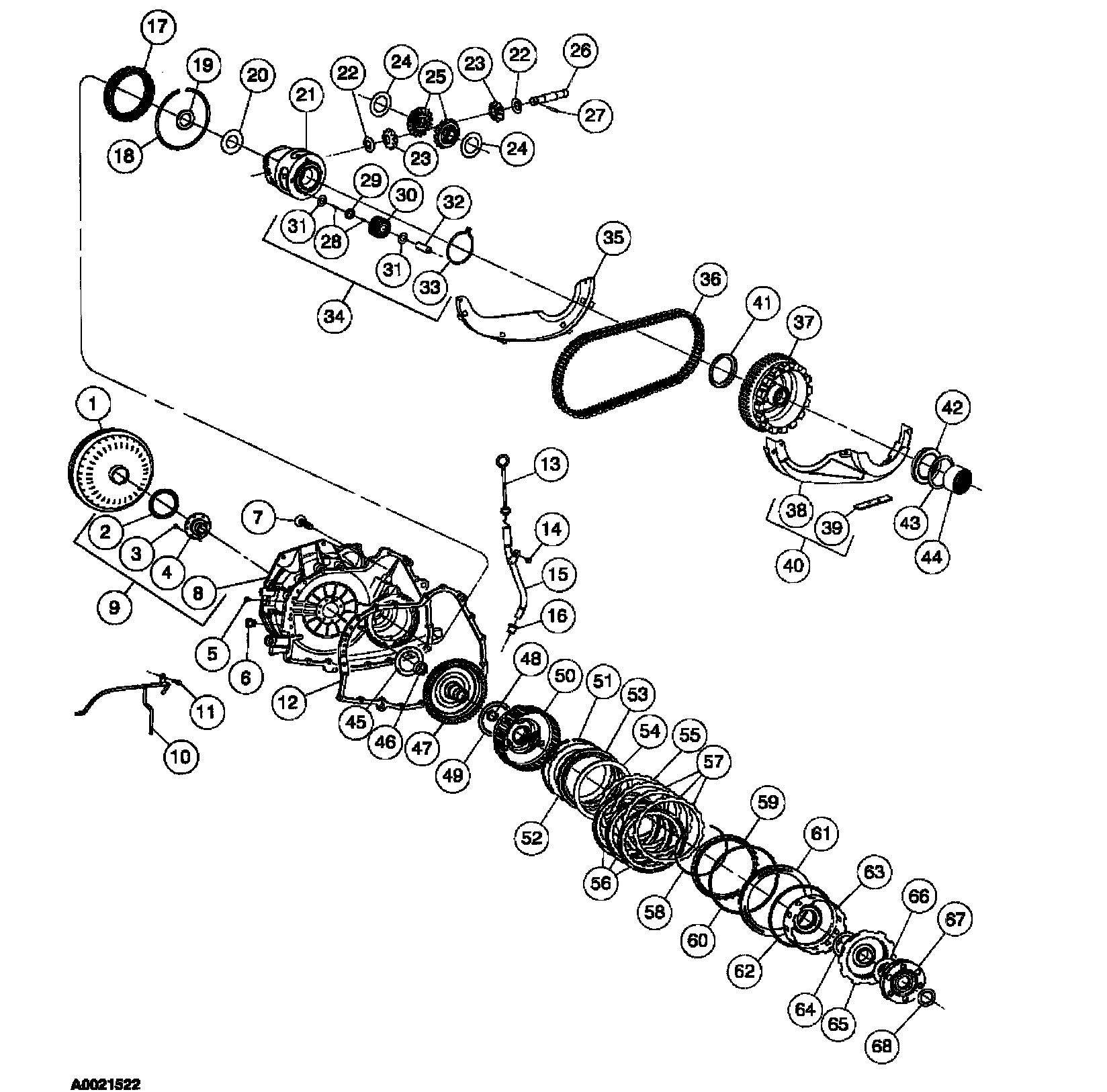

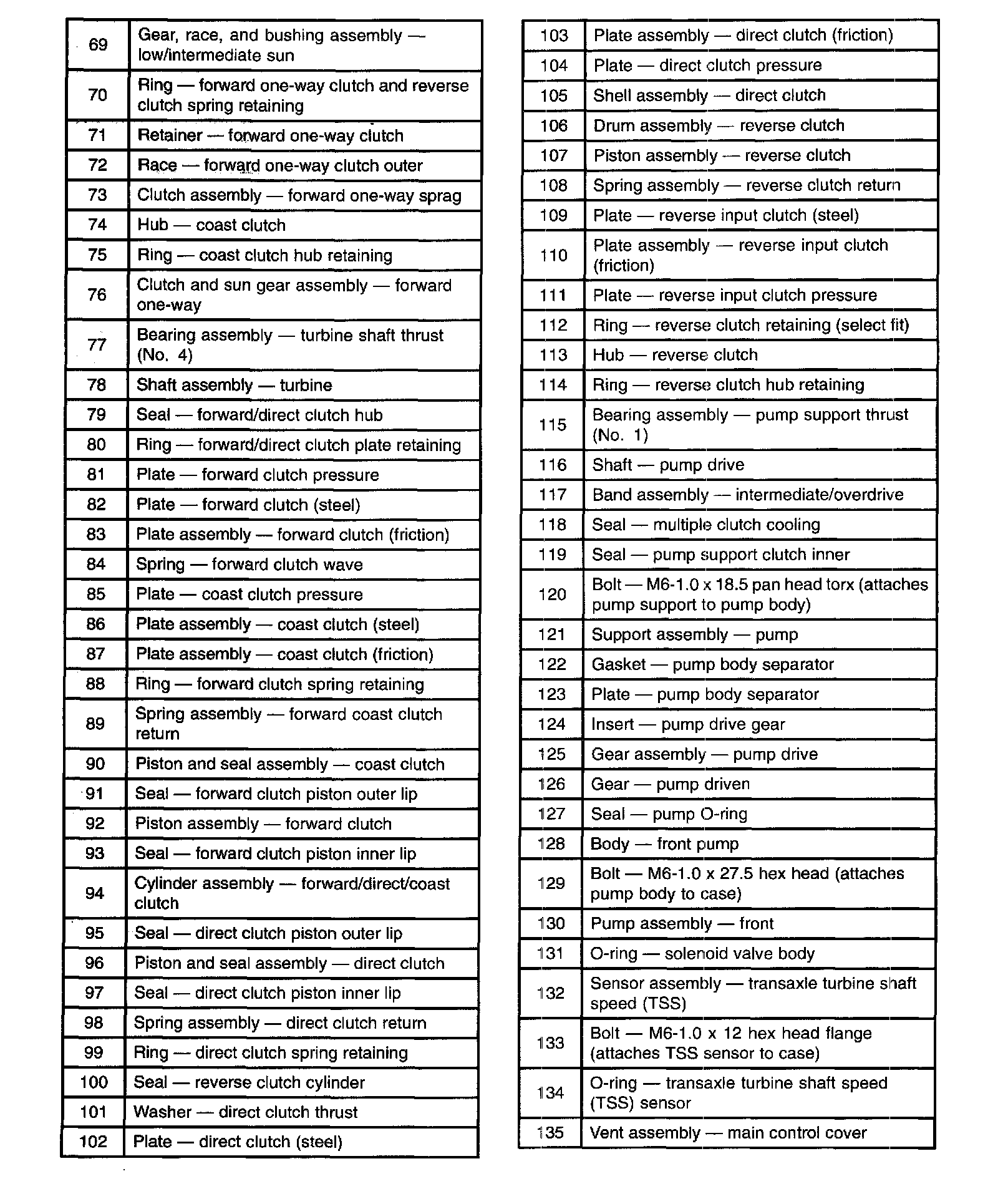

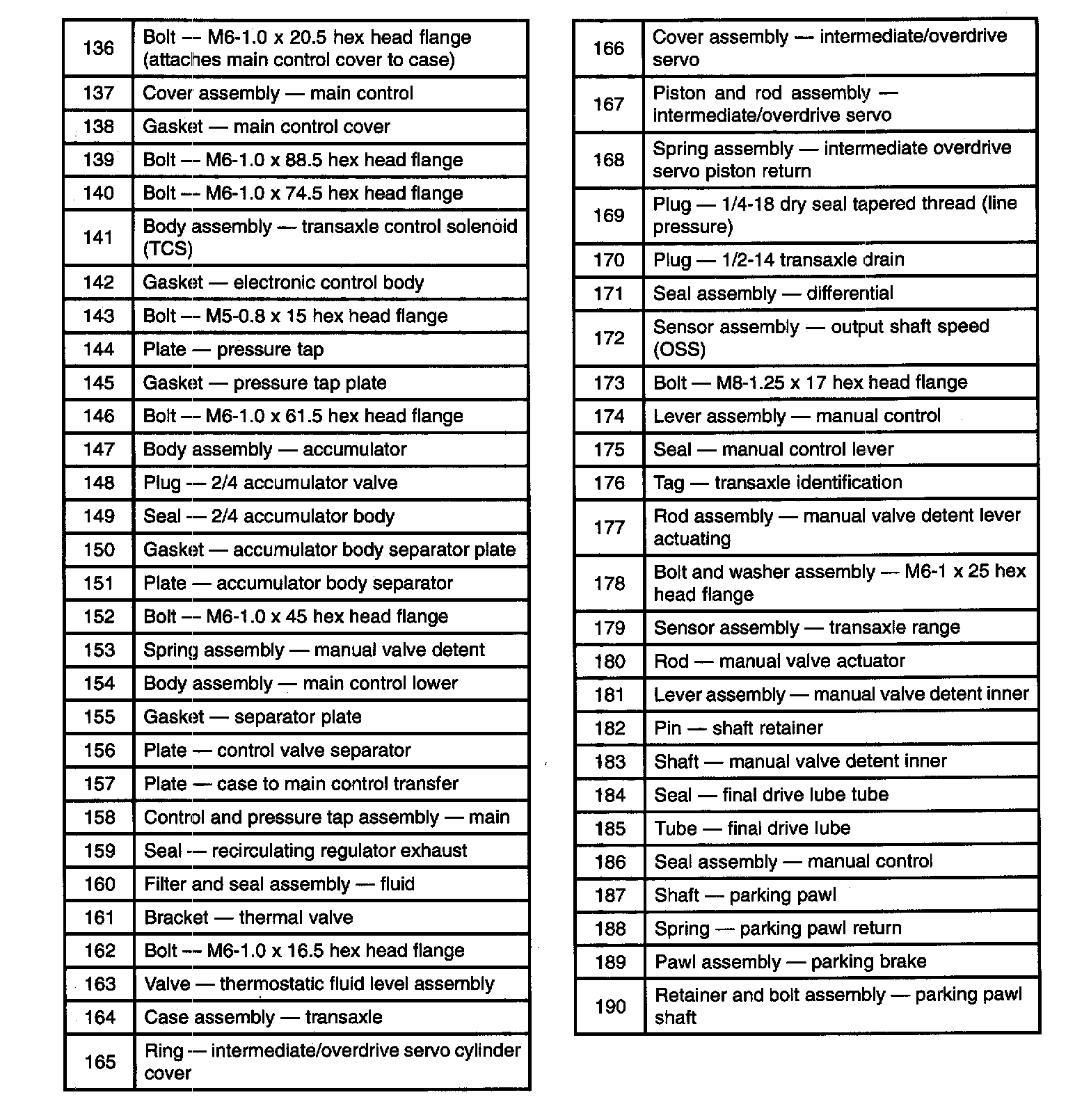

DISASSEMBLED VIEWS





1 of 7





2 of 7





3 of 7





4 of 7





5 of 7





6 of 7





7 of 7
