General Module

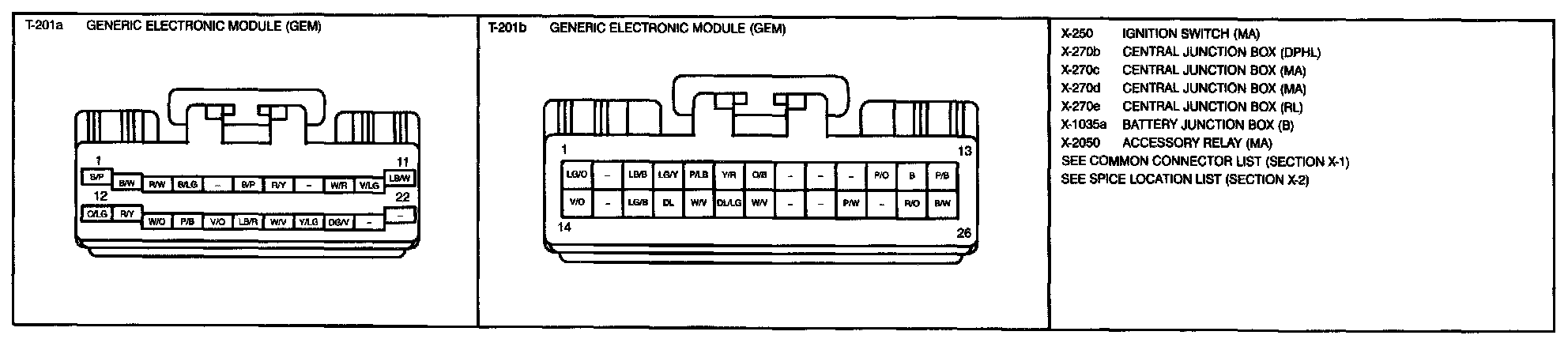

T-1a - Generic Electronic Module (GEM) System Connectors:

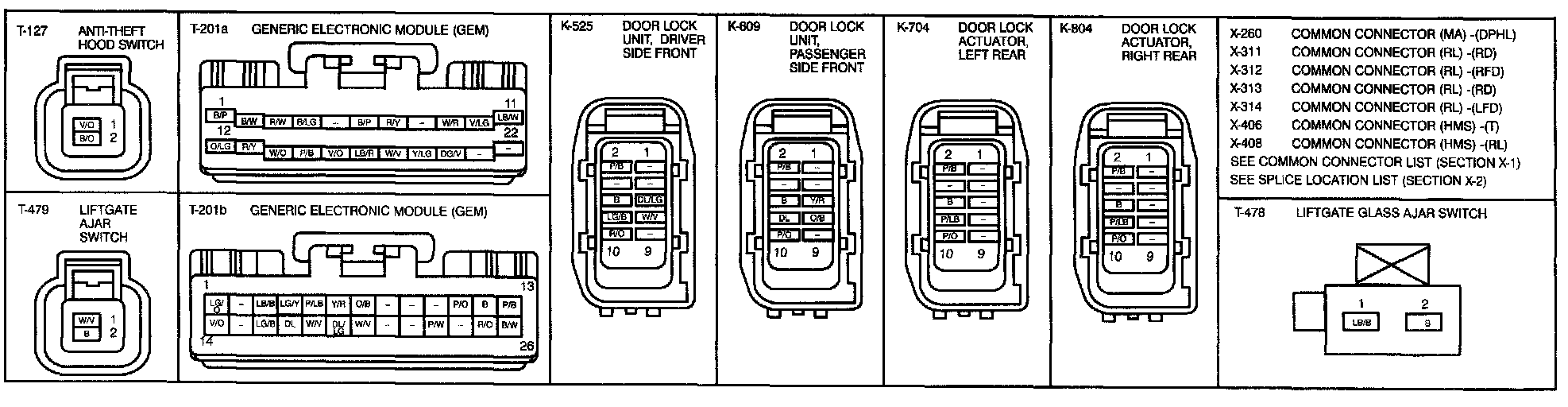

T-1b - Generic Electronic Module (GEM) System Connectors:

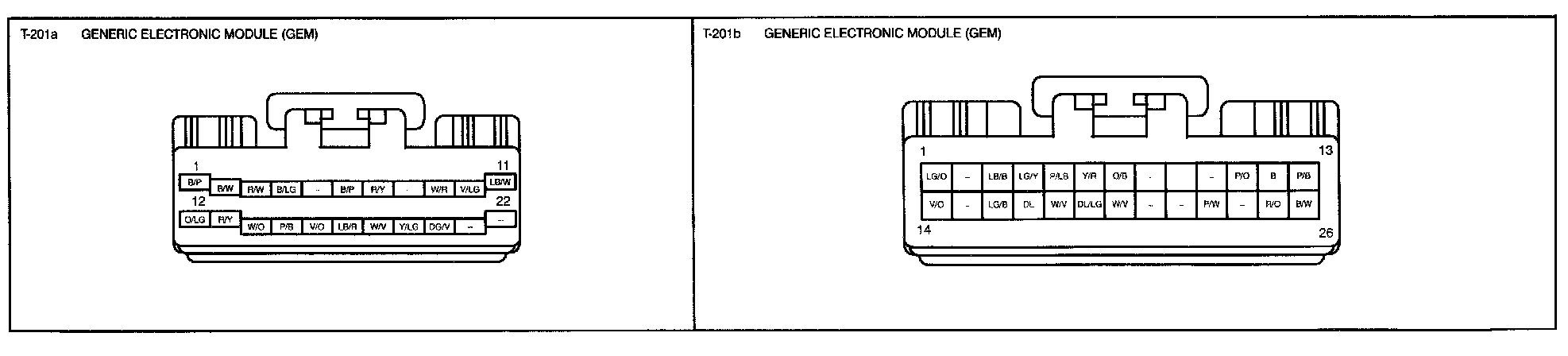

T-1c - Generic Electronic Module (GEM) System Connectors:
