Climate Control Assembly Illumination Bulbs

CLIMATE CONTROL ASSEMBLY ILLUMINATION BULBS

Removal and Installation

1. Remove the instrument panel center finish panel.

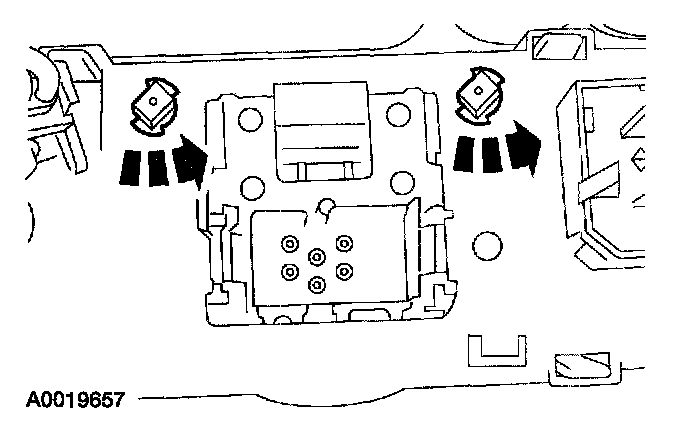

2. Remove the illumination bulb(s) by turning a quarter turn counterclockwise and lifting straight up,
3. To install, reverse the removal procedure.
