Diagnostic Monitoring Test Results Access Procedure

1. Perform the necessary vehicle preparation and visual inspection. Hook-up the WDS or equivalent Tester to the vehicle.

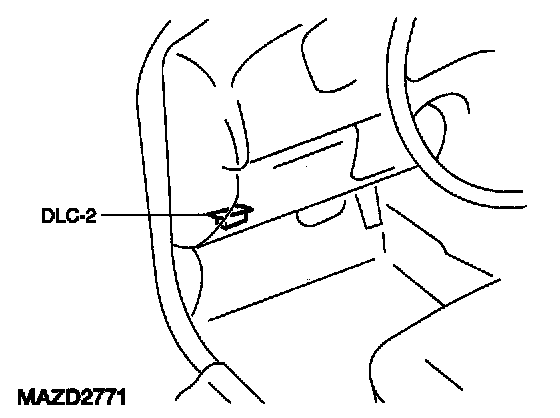

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Access the DIAGNOSTIC MONITORING TEST RESULTS and read the test results by WDS or equivalent.
