Throttle Position Sensor: Service and Repair

Removal and Installation

NOTE: 3.0L is shown. 2.0L is similar.

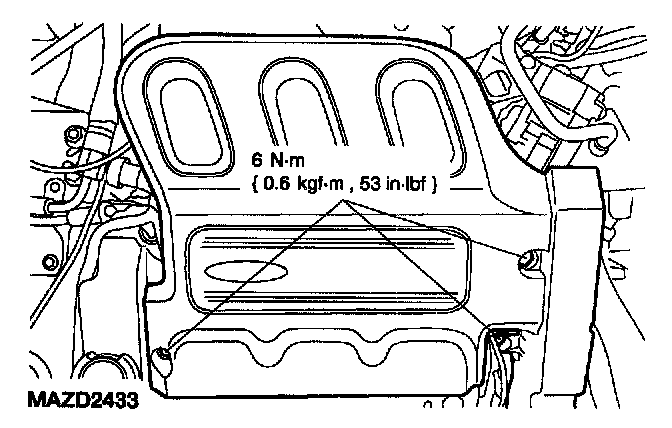

1. Remove the nuts and the engine appearance cover(3.0L).

NOTE: Air cleaner outlet tube is removed for clarity.




2. Remove the throttle position (TP) sensor.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the sensor

3. To install, reverse the removal procedure.
