Servicing - A/T: Identification: Transaxle

The CD4E transaxle is identified by identification tag located on rear of transaxle and bottom of main control cover (side cover) assembly. See Fig 1 and Fig 2 .

Fig 1: Identifying CD4E Transaxle Assembly

Courtesy of FORD MOTOR CO.

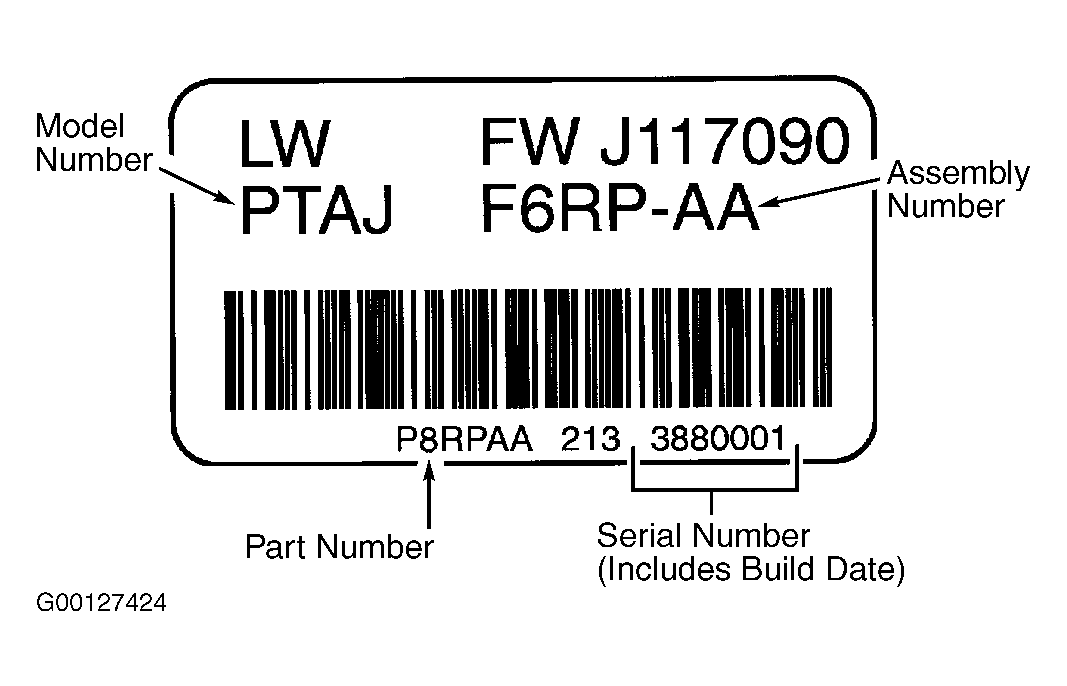

Fig 2: Identifying CD4E Transaxle Identification Tag

Courtesy of MAZDA
