Troubleshooting Index - Automatic Transaxle Cooling

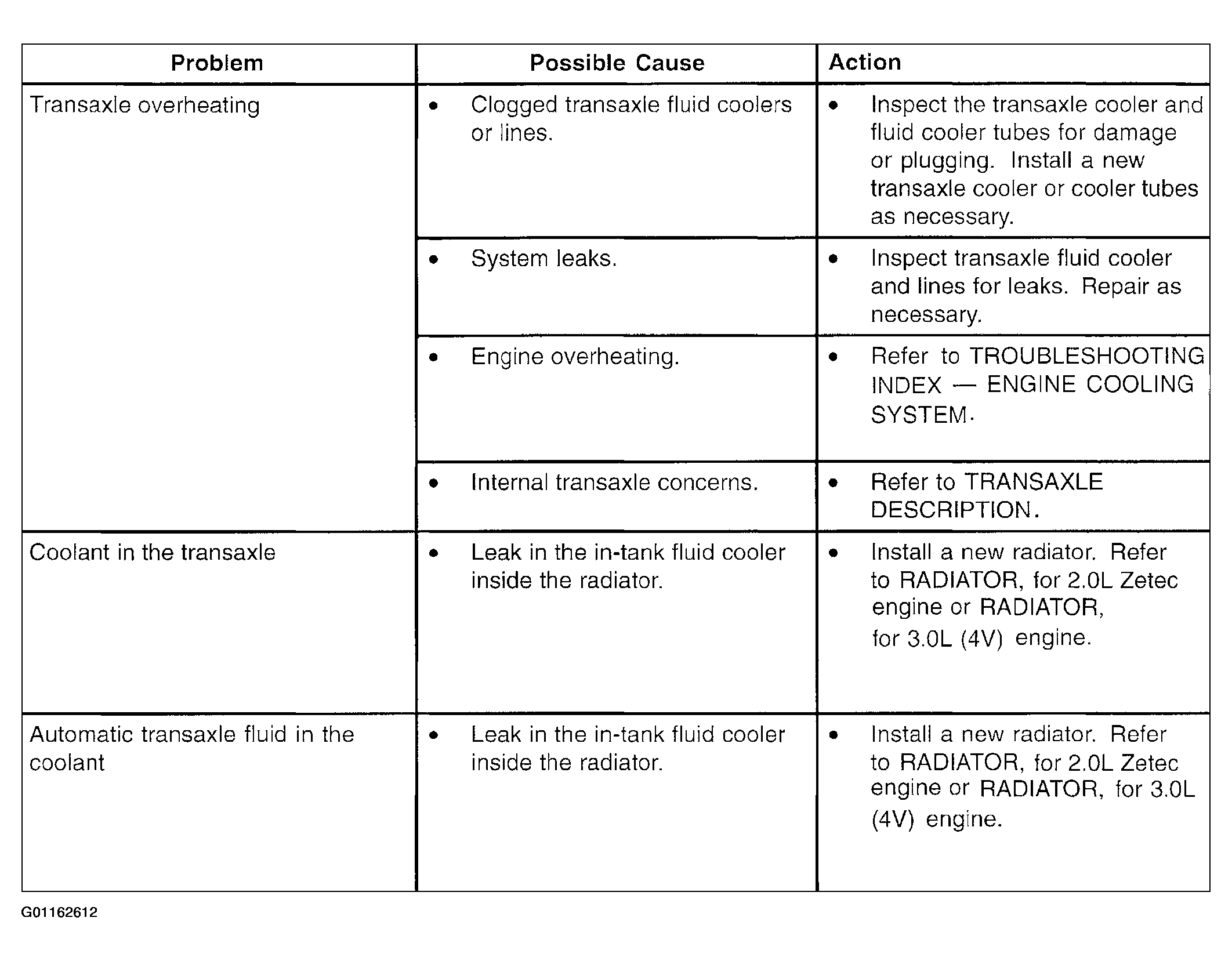

Fig 1: Troubleshooting Index - Automatic Transaxle Cooling
G01162612Courtesy of MAZDA MOTORS CORP.
