Power Steering System: Fill

WARNING: Do not mix oil types. Any mixture or any unapproved oil can lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.
  1. Fill the reservoir.
    1. Use MERCON(R) Automatic Transaxle Fluid (ATF).

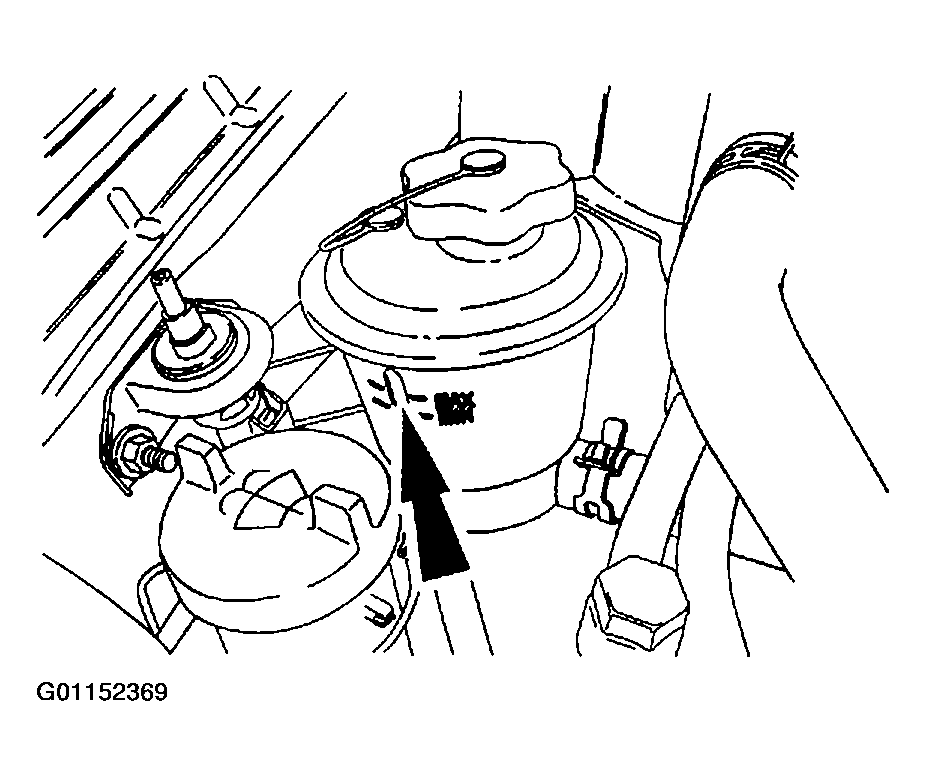

      Fig 1: Filling Reservoir
      G01152369Courtesy of MAZDA MOTORS CORP.
    2. Remove the FUEL fuse to disable the vehicle.

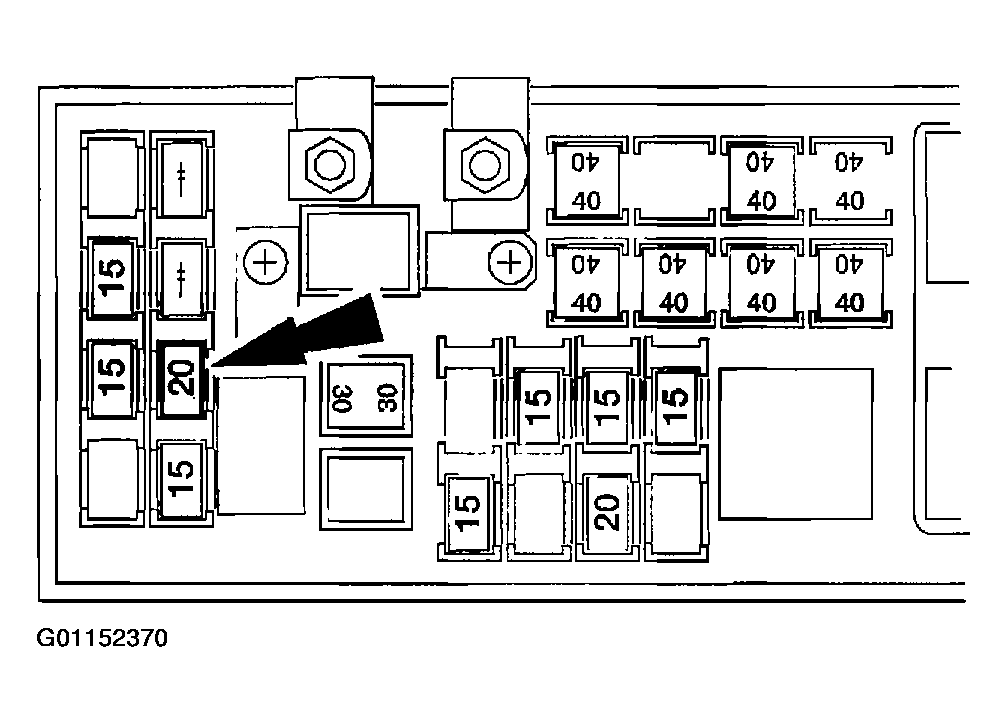

      Fig 2: Removing FUEL Fuse
      G01152370Courtesy of MAZDA MOTORS CORP.
    3. Raise the front wheels off the floor. Refer to WHEELS AND TIRES .
      4. CAUTION: Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.
      CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump can occur.

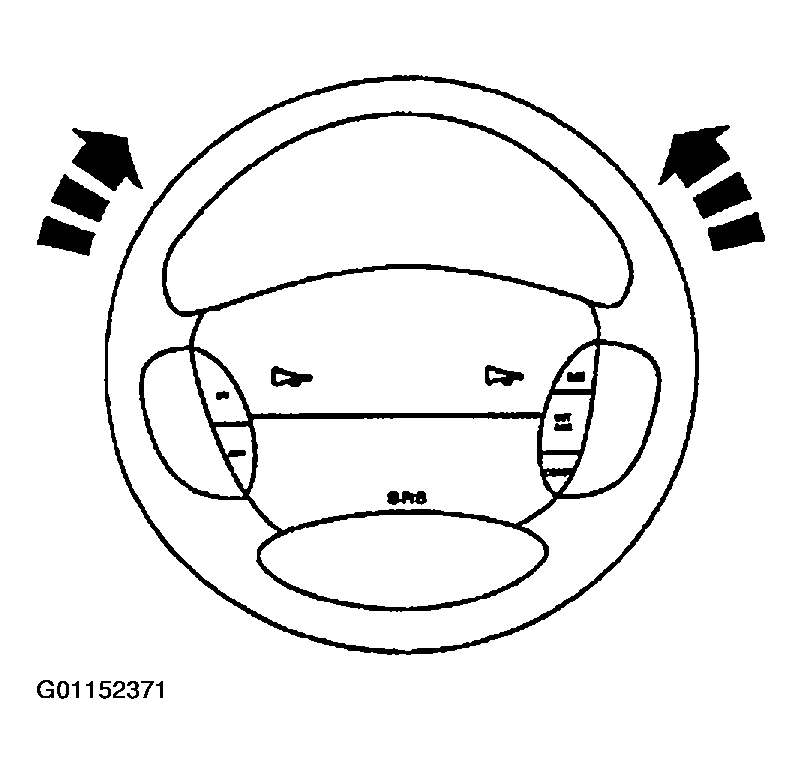

      Fig 3: Turning Steering Wheel From Stop To Stop
      G01152371Courtesy of MAZDA MOTORS CORP.
    4. Turn the steering wheel from stop-to-stop while cranking the engine.
    5. Lower the vehicle.
      6. CAUTION: Do not overfill the reservoir.
    6. Fill the reservoir.
      • Use MERCON(R) ATF.

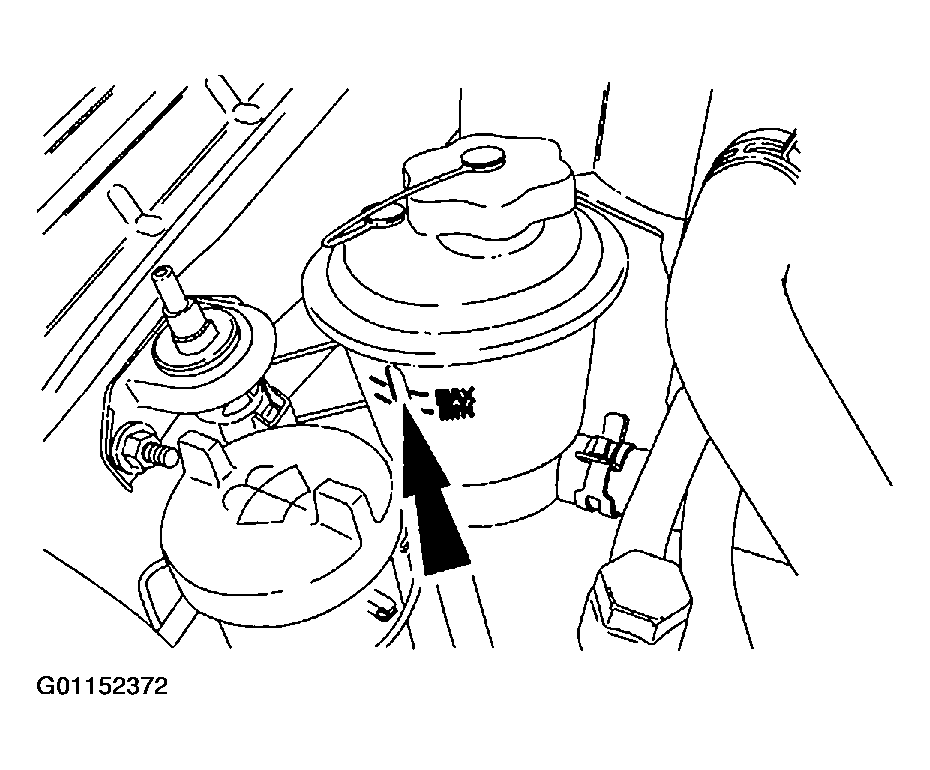

        Fig 4: Filling Reservoir
        G01152372Courtesy of MAZDA MOTORS CORP.
    7. Install the fuel pump relay.
    8. Clear the Diagnostic Trouble Codes (DTCs). Refer to CLEARING CODES .
