Special Tools

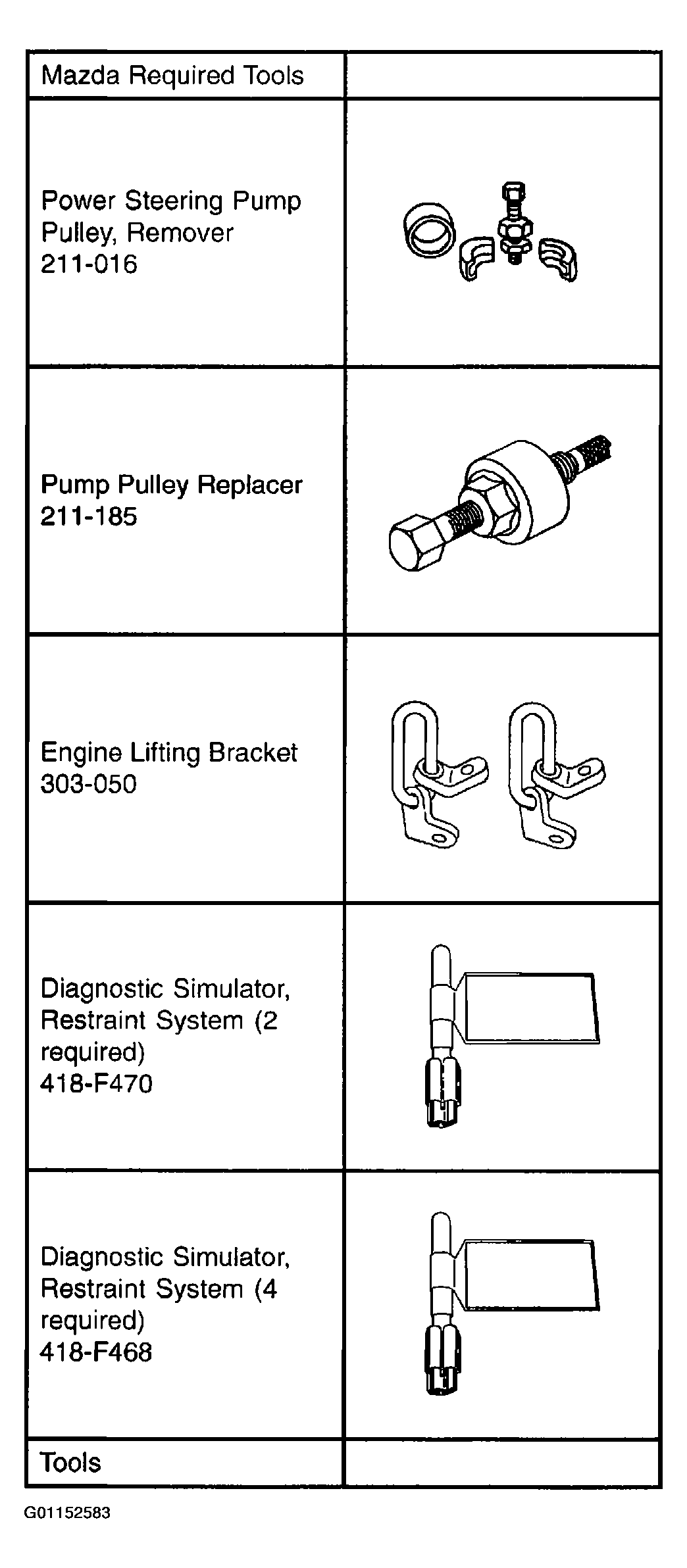

Fig 1: Identifying Special Tools (1 Of 3)
G01152583Courtesy of MAZDA MOTORS CORP.

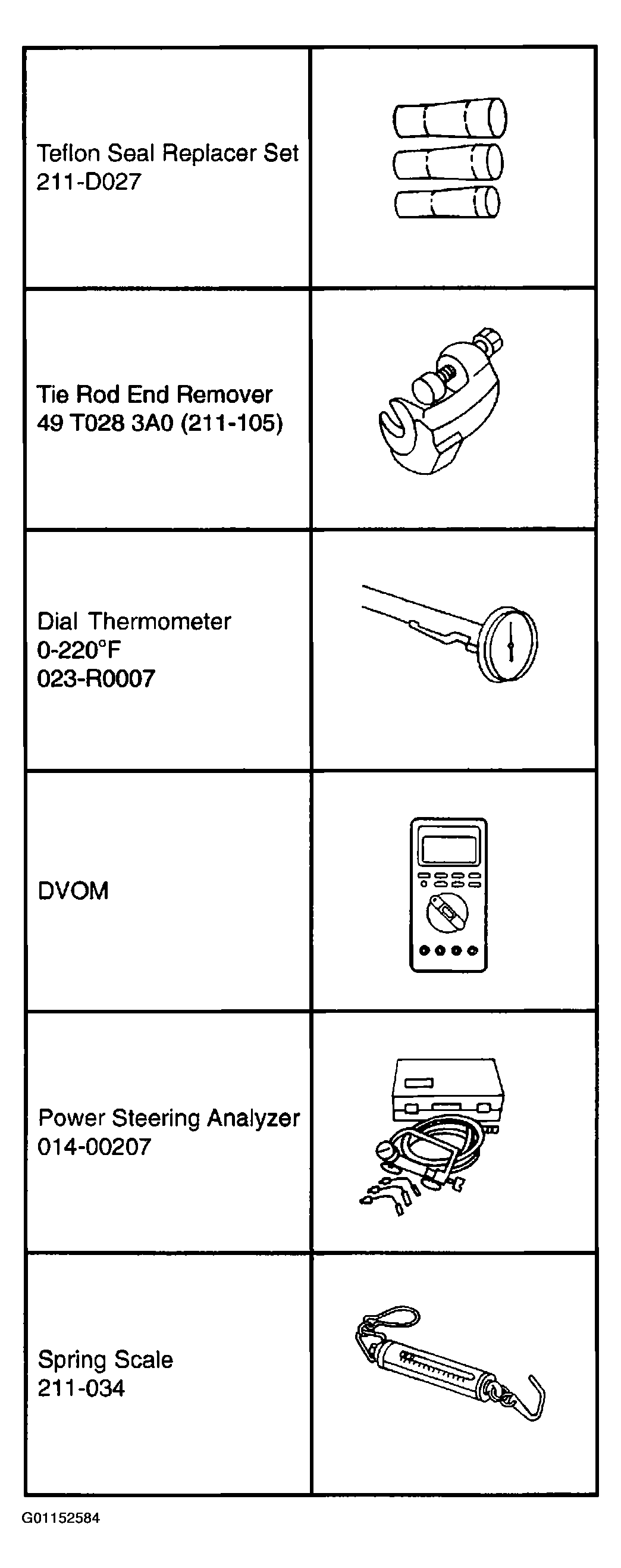

Fig 2: Identifying Special Tools (2 Of 3)
G01152584Courtesy of MAZDA MOTORS CORP.

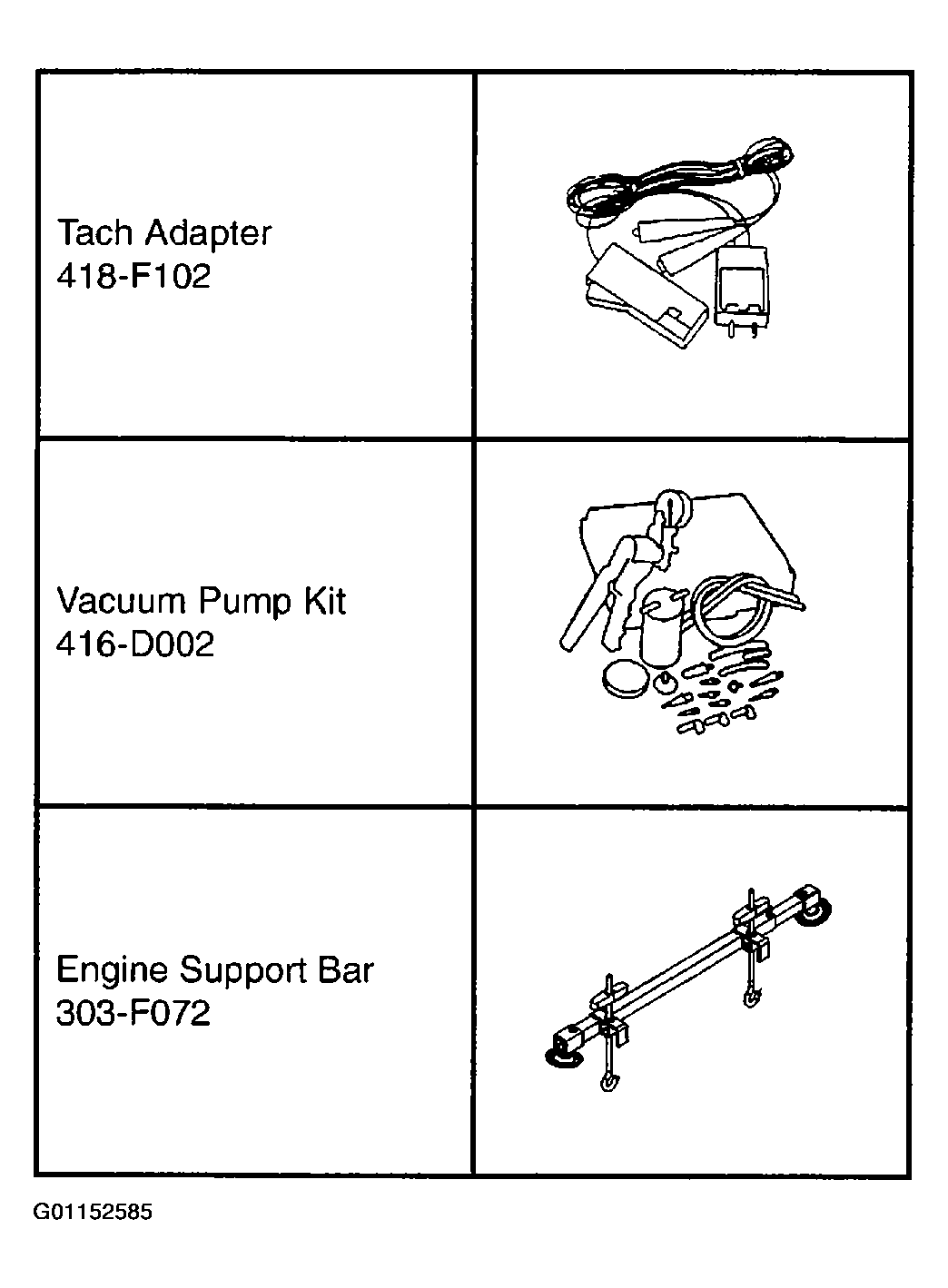

Fig 3: Identifying Special Tools (3 Of 3)
G01152585Courtesy of MAZDA MOTORS CORP.
