General Specifications

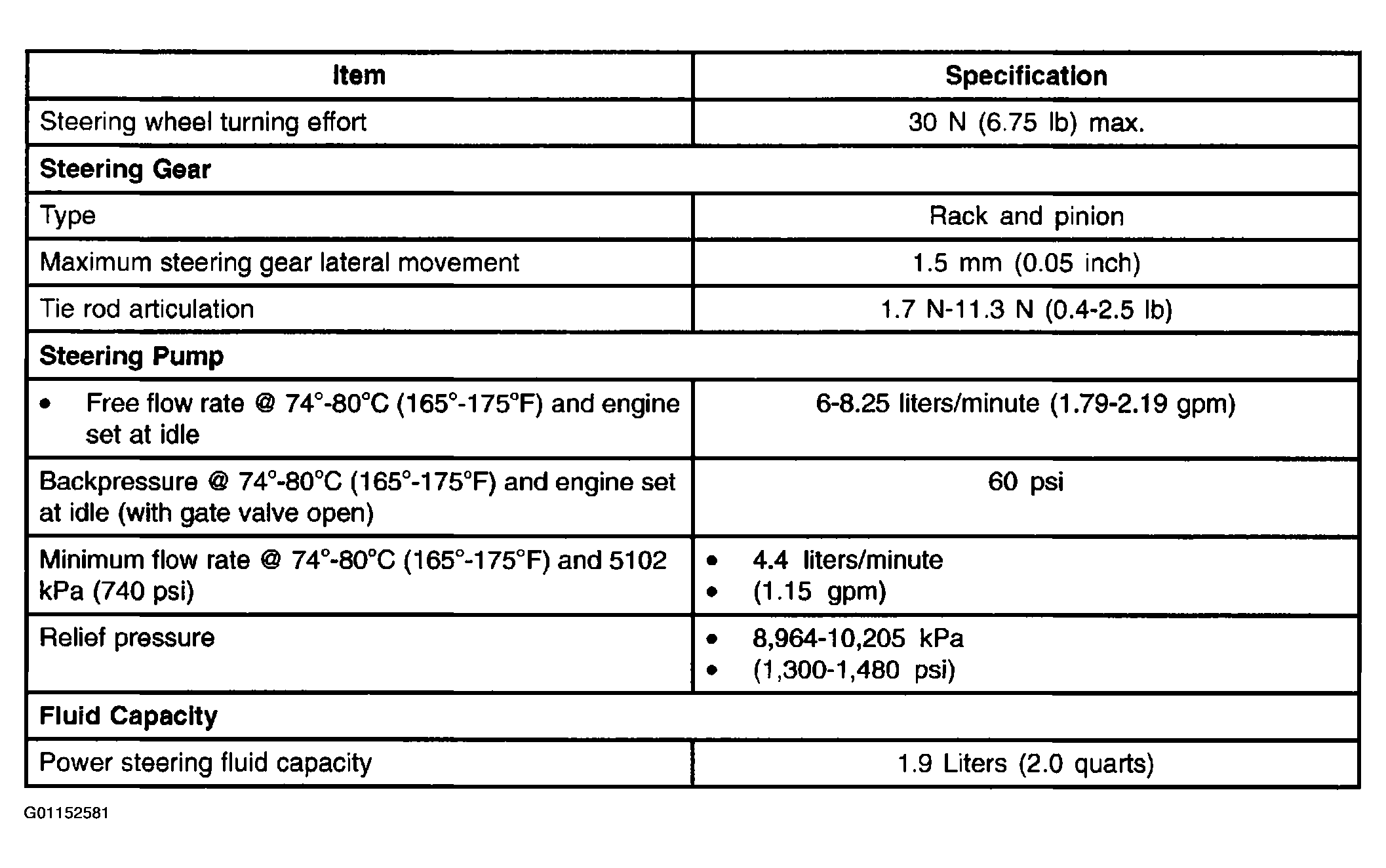

Fig 1: Power Steering Specifications (1 Of 2)
G01152581Courtesy of MAZDA MOTORS CORP.

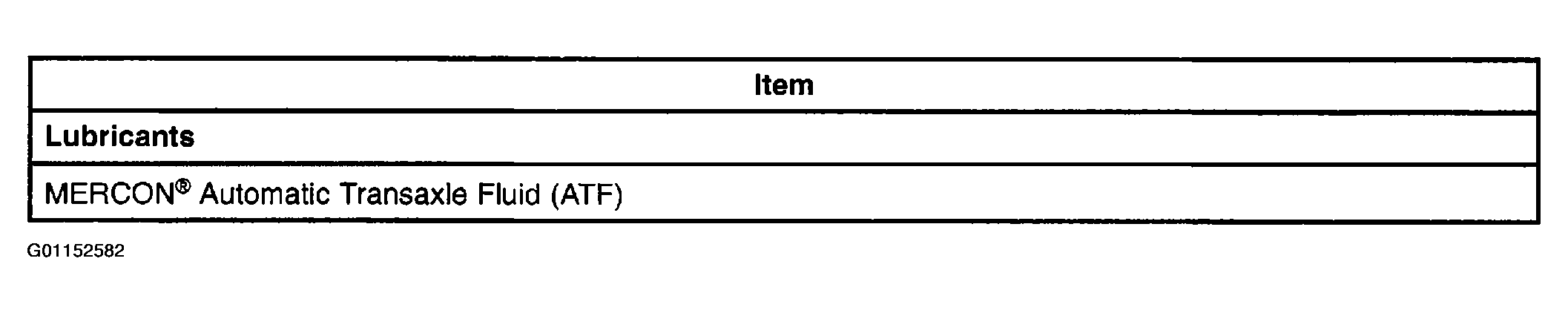

Fig 2: Power Steering Specifications (2 Of 2)
G01152582Courtesy of MAZDA MOTORS CORP.
