Diagnostic Flow Chart

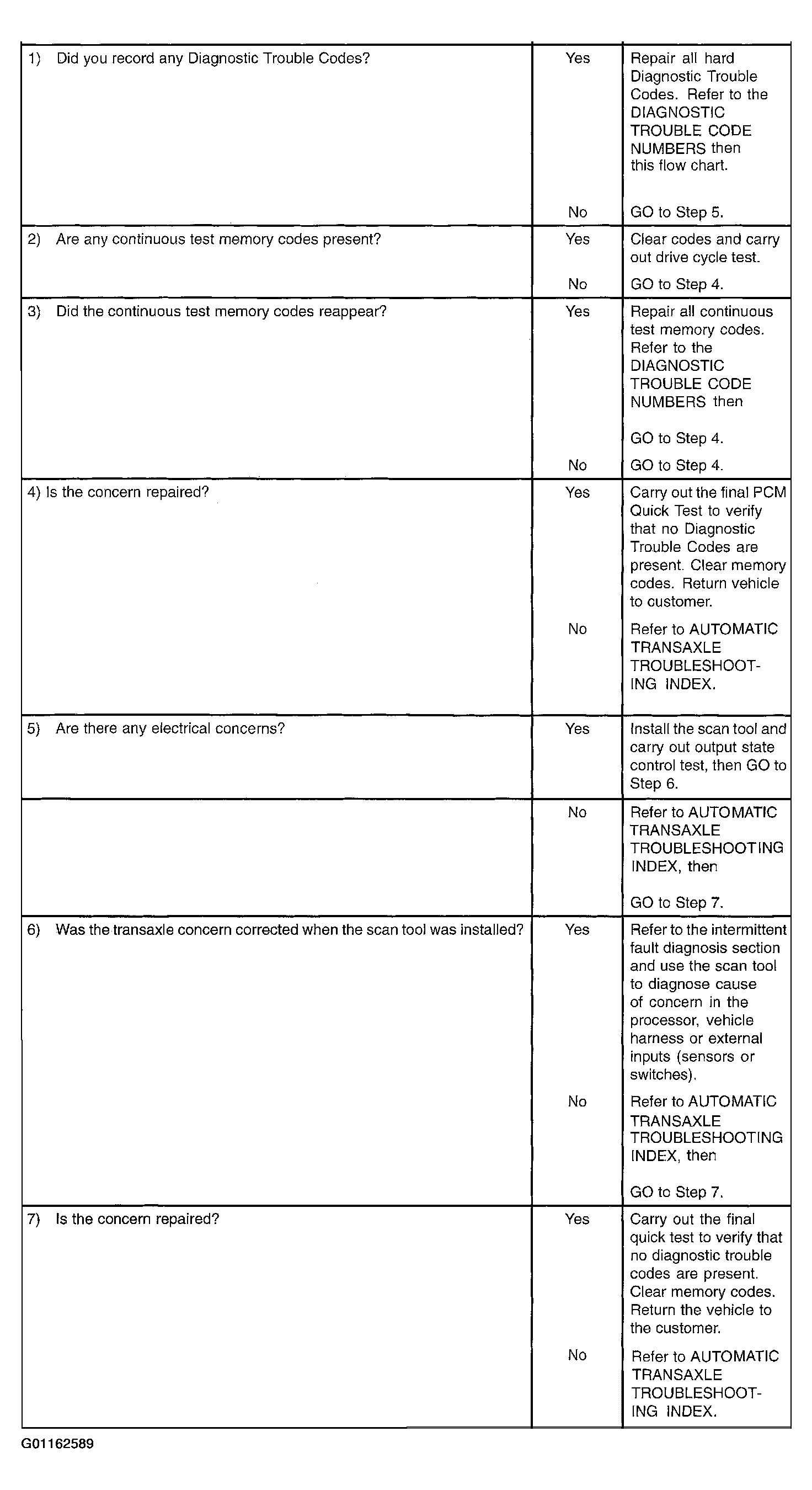

Fig 1: Diagnostic Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
