Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship

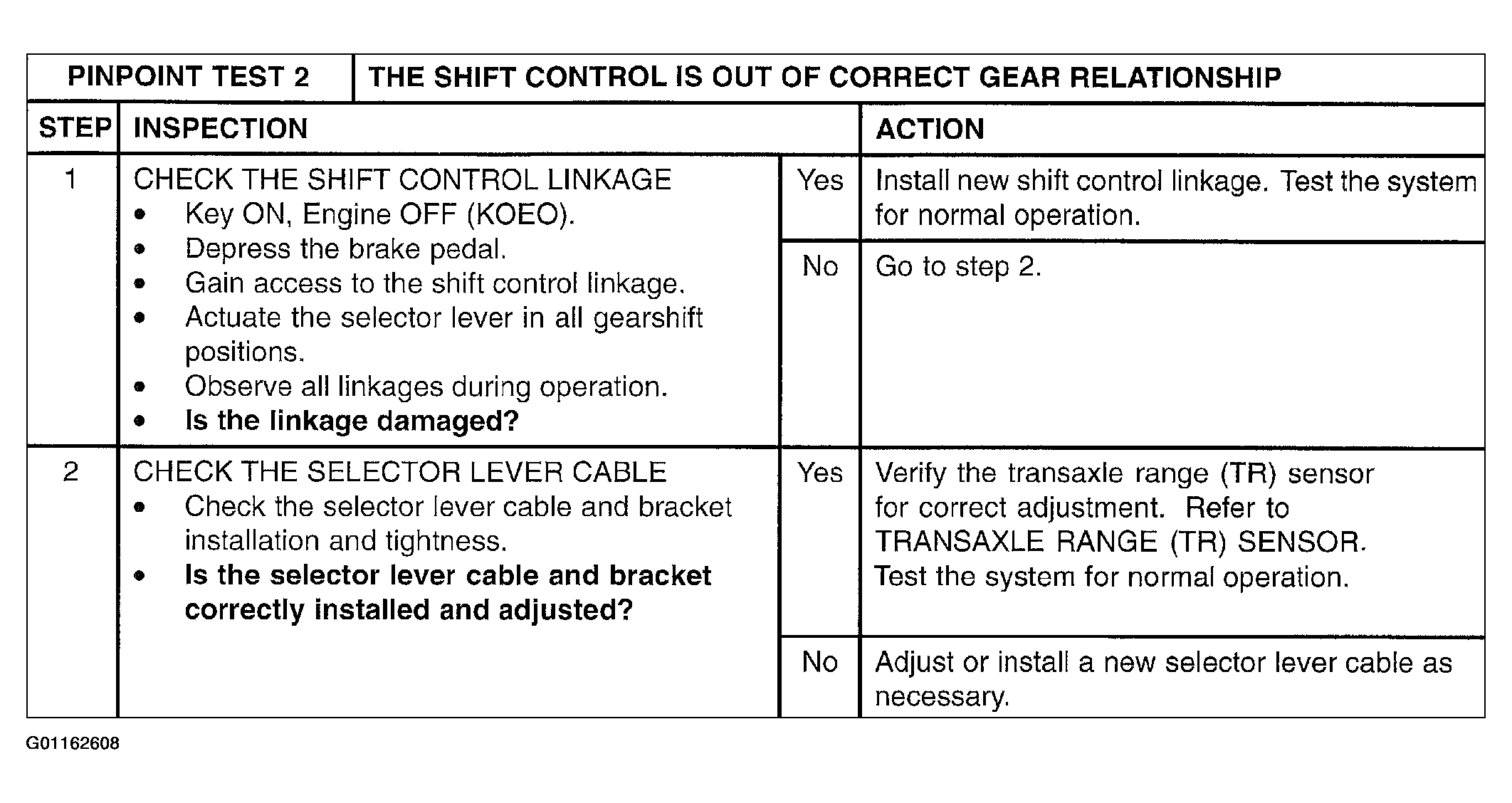

Fig 1: Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship
G01162608Courtesy of MAZDA MOTORS CORP.
