Drive Belt: Testing and Inspection

DRIVE BELT INSPECTION

Note
- Front and water pump drive belt deflection/tension inspection is not necessary because of the use of the front drive belt auto tensioner.

Front Drive Belt

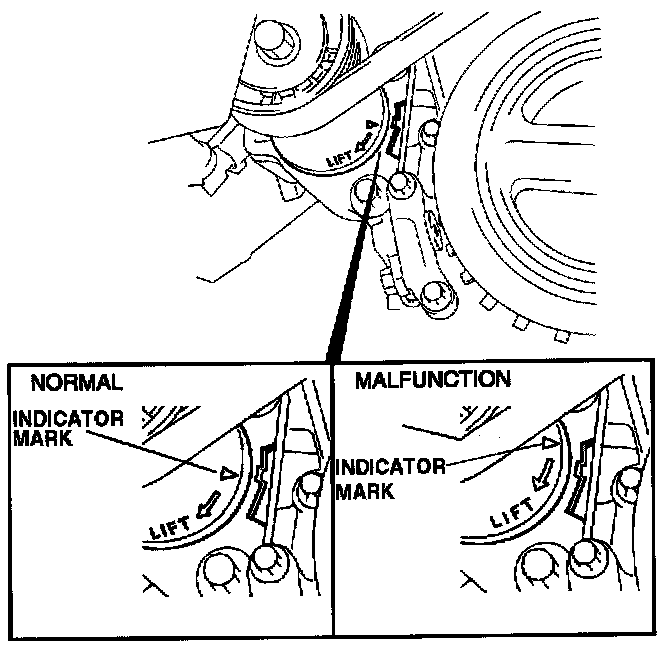

1. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.
- If it exceeds the limit, replace the drive belt.
