Torque Sequence

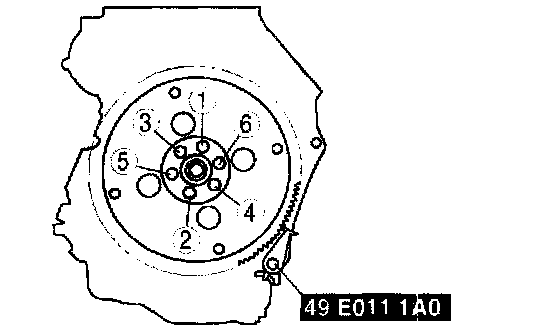

Tighten the drive plate mounting bolts in two or three steps in the order shown.
Tightening torque 108 - 116 Nm (11.0 - 11.8 kgf-cm, 79.7 - 85.5 ft lbs.)
