Coil Installation Note

  1. Install the hole of coil to the tab of steering lock.
  2. Install the hook of coil to the steering lock.

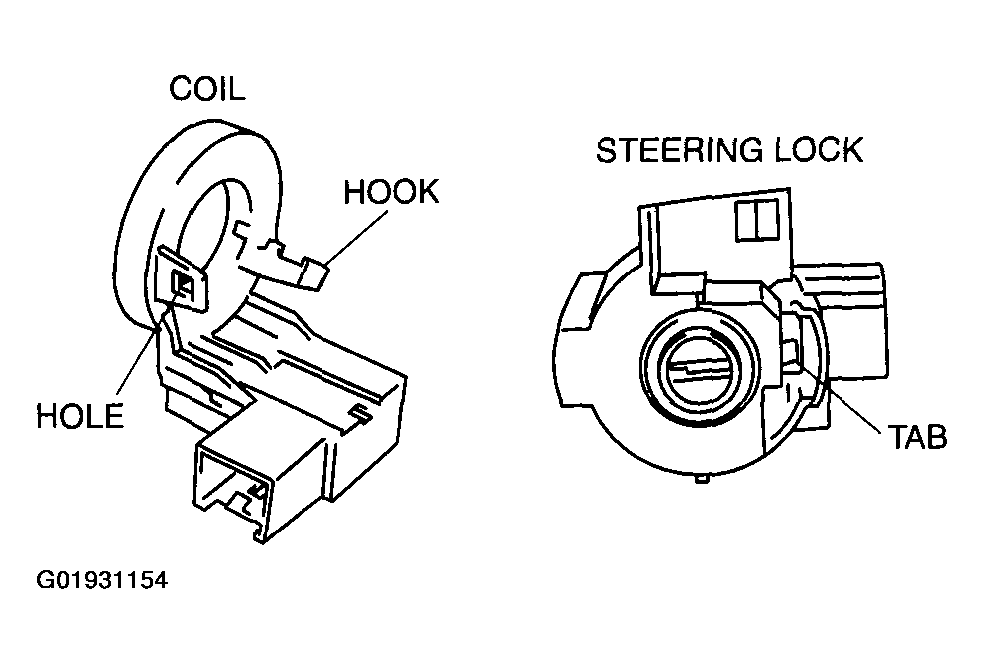

    Fig 1: Installing Hook Of Coil To Steering Lock And Hole Of Coil To Tab Of Steering Lock
    G01931154Courtesy of MAZDA MOTORS CORP.
