5TH Synchronizer Key Spring, 5TH Synchronizer Key And 5TH Clutch Hub And Sleeve Assembly Note

Assemble the 5th synchronizer key springs, 5th synchronizer key and 5th clutch hub to the 5th clutch sleeve.
1. Install a new 5th clutch hub in the direction as shown in the figure.

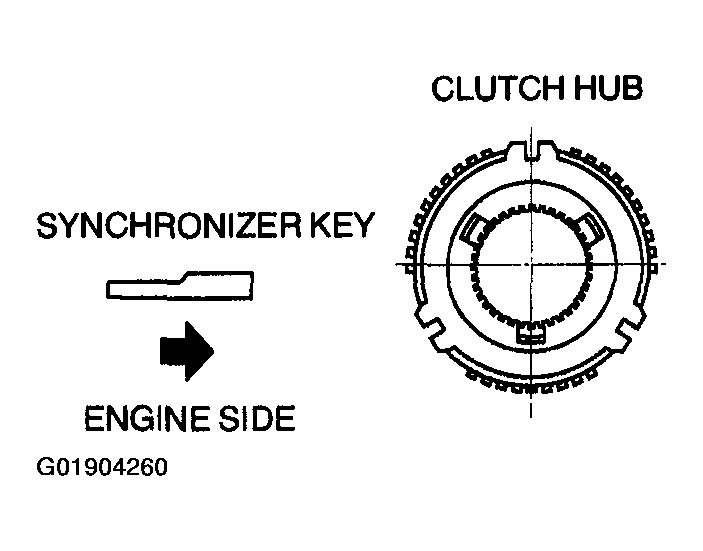

  Fig 1: Installing 5th Clutch Hub
  Courtesy of MAZDA MOTORS CORP.
2. Install a new 5th clutch sleeve in the direction as shown in the figure.

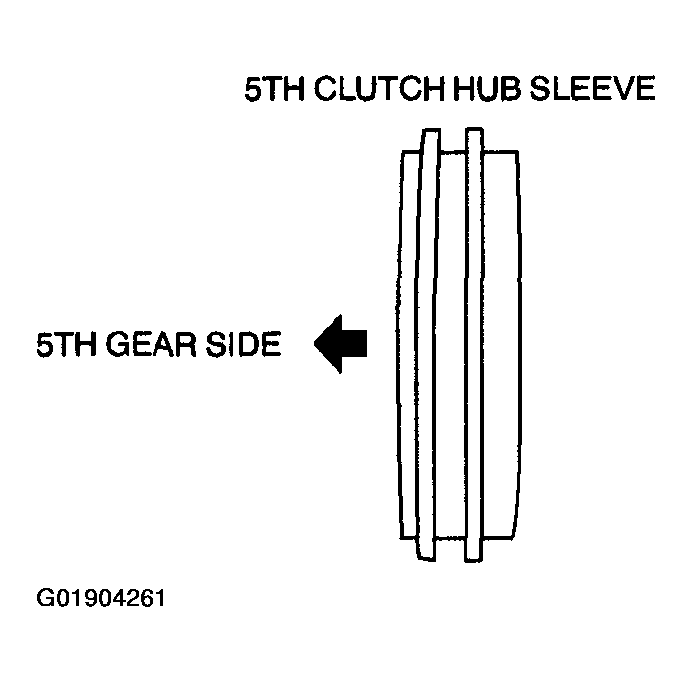

  Fig 2: Installing 5th Clutch Sleeve
  Courtesy of MAZDA MOTORS CORP.
3. Install center projection parts of 5th synchronizer key springs to different synchronizer keys on each side.

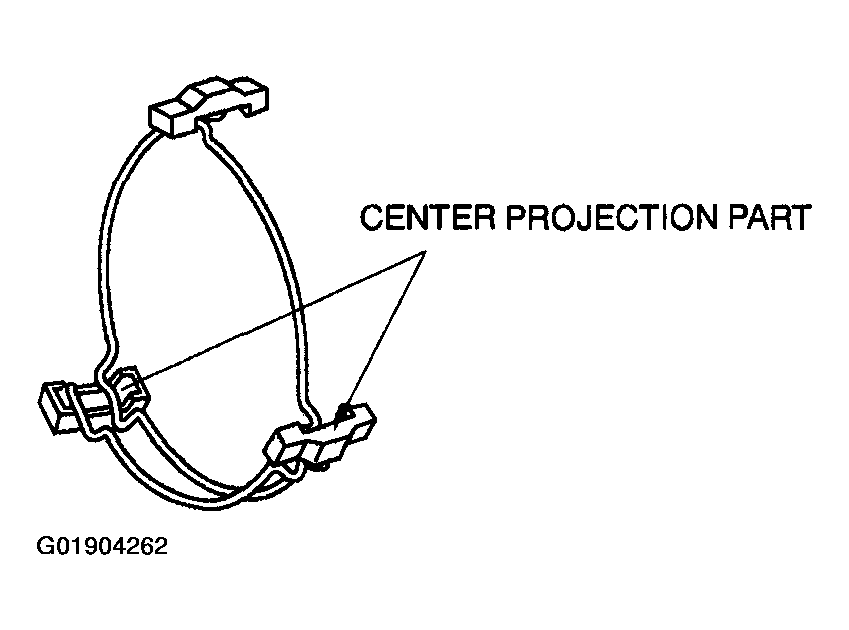

  Fig 3: Identifying Synchronizer Key Spring Center Projections
  Courtesy of MAZDA MOTORS CORP.
