Snap Ring Assembly Note

Install a new snap ring to the primary shaft.
Measure the clearance between the snap ring and the primary shaft bearing spacer.
- If it is not within the specification, adjust it by selecting a proper snap ring from below.
Clearance
1. 0.0-0.1 mm {0.0000-0.0039 in}

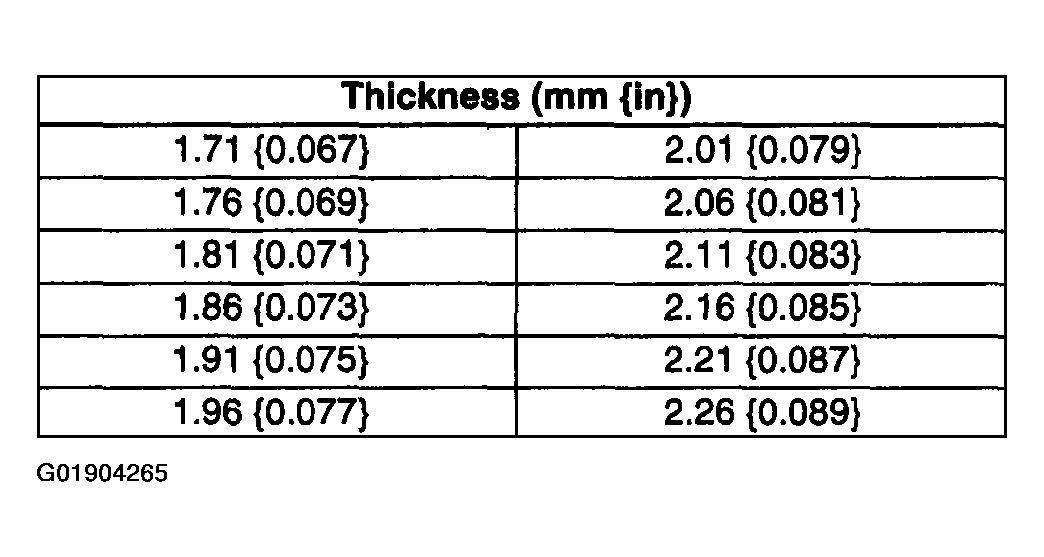

Fig 1: Available Snap Ring Sizes

Courtesy of MAZDA MOTORS CORP.

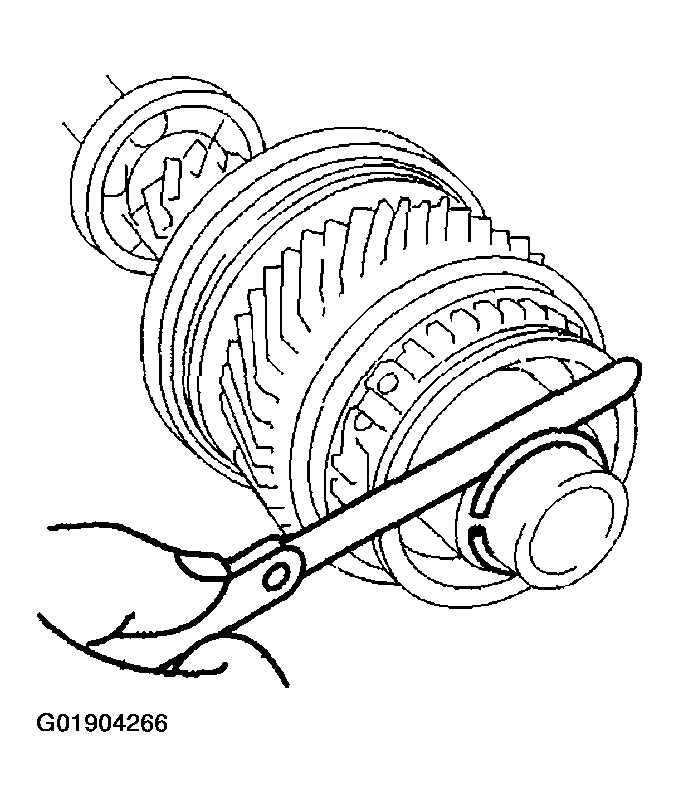

Fig 2: Measuring Snap Ring To Primary Shaft Bearing Spacer Clearance

Courtesy of MAZDA MOTORS CORP.
