5TH Gear Snap Ring Assembly Note

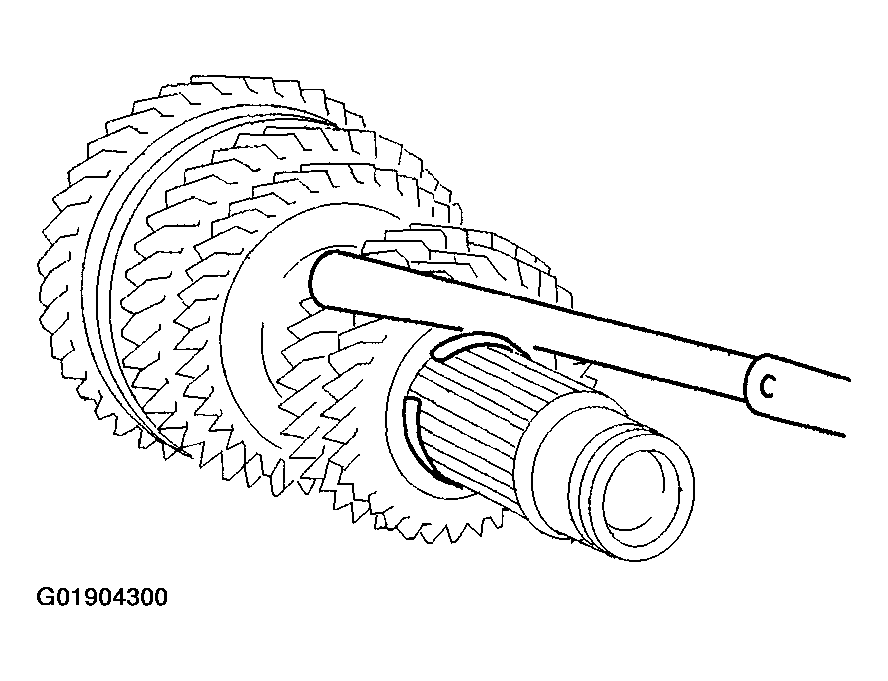

- Install a new 5th gear snap ring to the secondary shaft.
- Measure the clearance between the 5th gear snap ring and the 5th gear.
- If it is not within the specification, adjust it by selecting a proper snap ring from below.
Clearance
- 0.0-0.1 mm {0.0000-0.0039 in}
