Synchronizer Key Spring, 1ST/2ND Synchronizer Key And 1ST/2ND Clutch Hub And Sleeve Assembly Note

  1. Install the synchronizer key spring, 1st/2nd synchronizer key and 1st/2nd clutch hub to the 1st/2nd clutch sleeve.
    1. Install a new 1st/2nd clutch hub in the direction as shown in the figure.

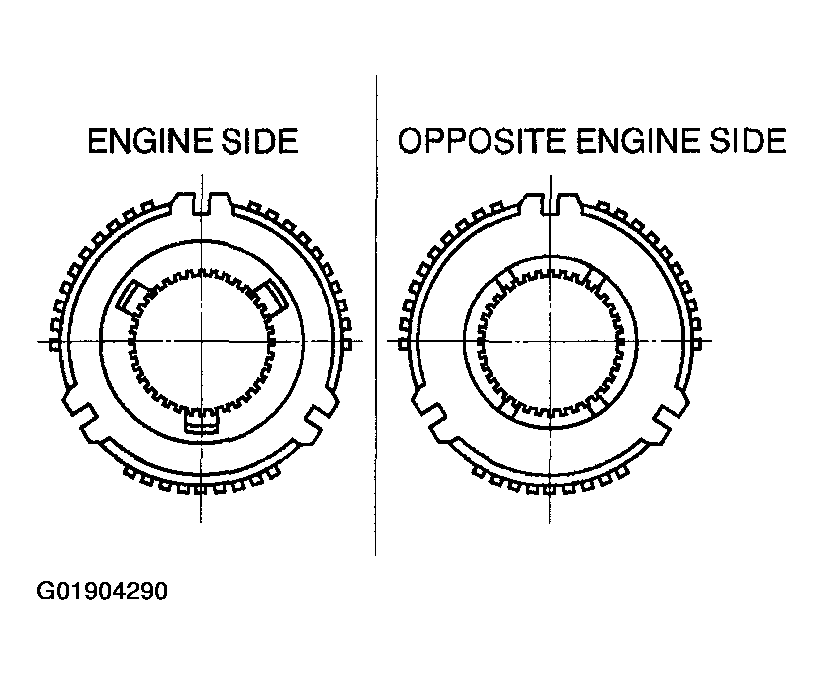

      Fig 1: 1st/2nd Clutch Hub Installation Direction
      G01904290Courtesy of MAZDA MOTORS CORP.
    2. Install the 1st/2nd clutch sleeve in the direction as shown in the figure.

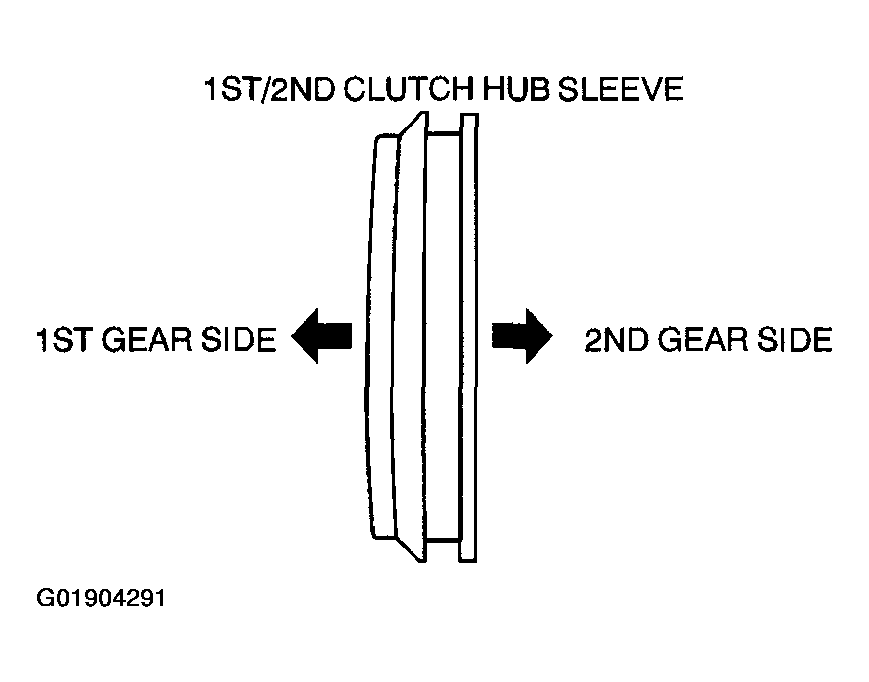

      Fig 2: 1st/2nd Clutch Sleeve Installation Direction
      G01904291Courtesy of MAZDA MOTORS CORP.
    3. Install center projection parts of synchronizer key springs to different synchronizer keys at each side.

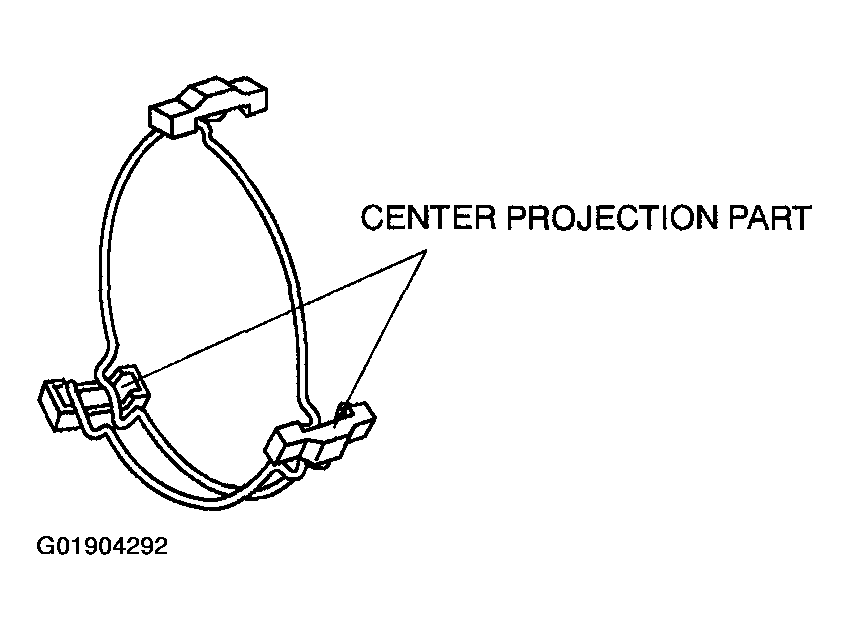

      Fig 3: Identifying Synchronizer Key Spring Center Projections
      G01904292Courtesy of MAZDA MOTORS CORP.
