GEM Wiggle Test Diagnostic Trouble Code (DTC) Index

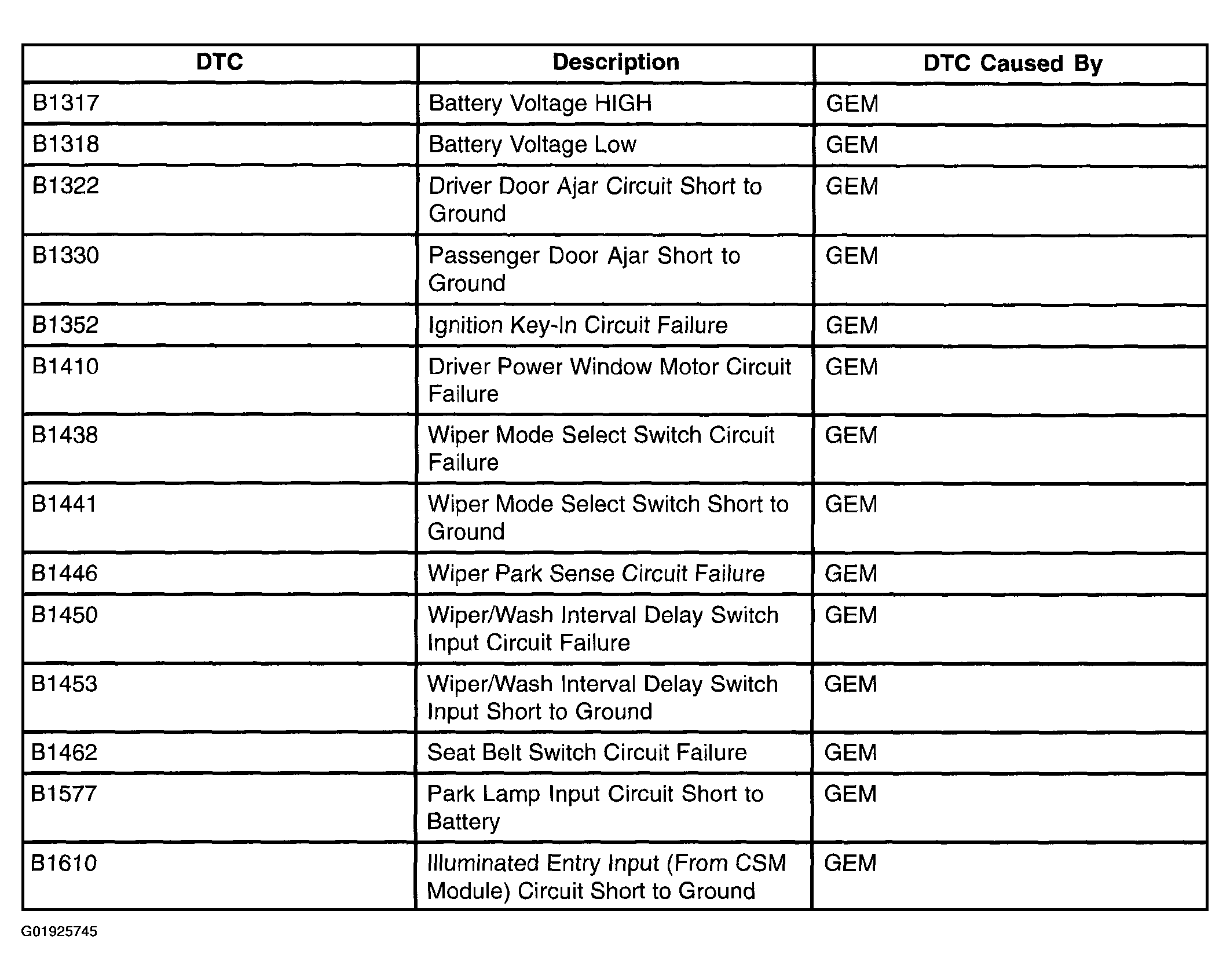

Fig 1: GEM Wiggle Test Diagnostic Trouble Code (DTC) Index
G01925745Courtesy of MAZDA MOTORS CORP.
