Module Does Not Respond To The WDS Tester - Generic Electronic Module (Gem)

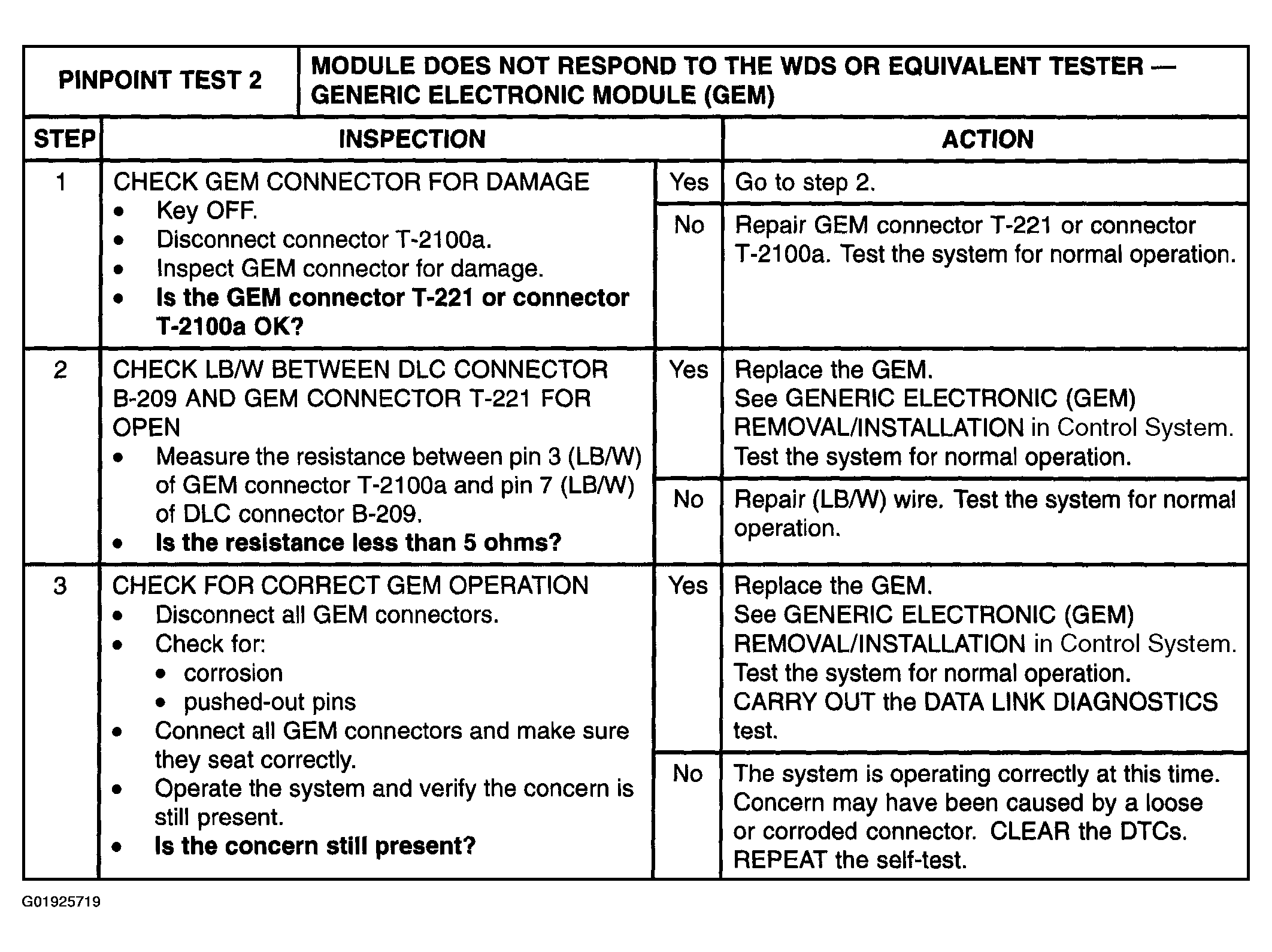

Fig 1: Diagnosis Procedure -- Generic Electronic Module (Gem) (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

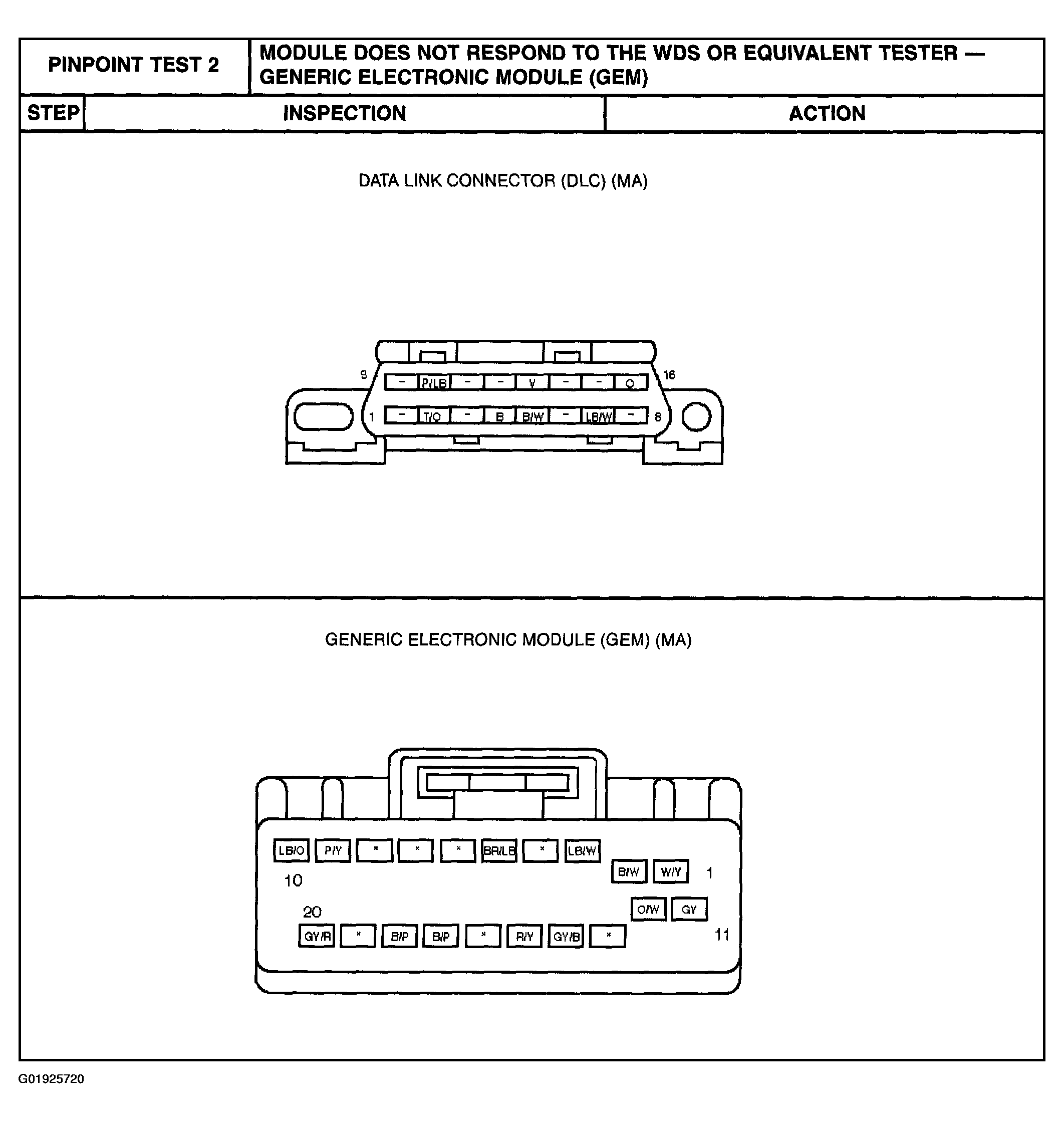

Fig 2: Data Link Connector & Generic Electronic Module Connector Identification

Courtesy of MAZDA MOTORS CORP.
