No Module/Network Communication - SCP Link

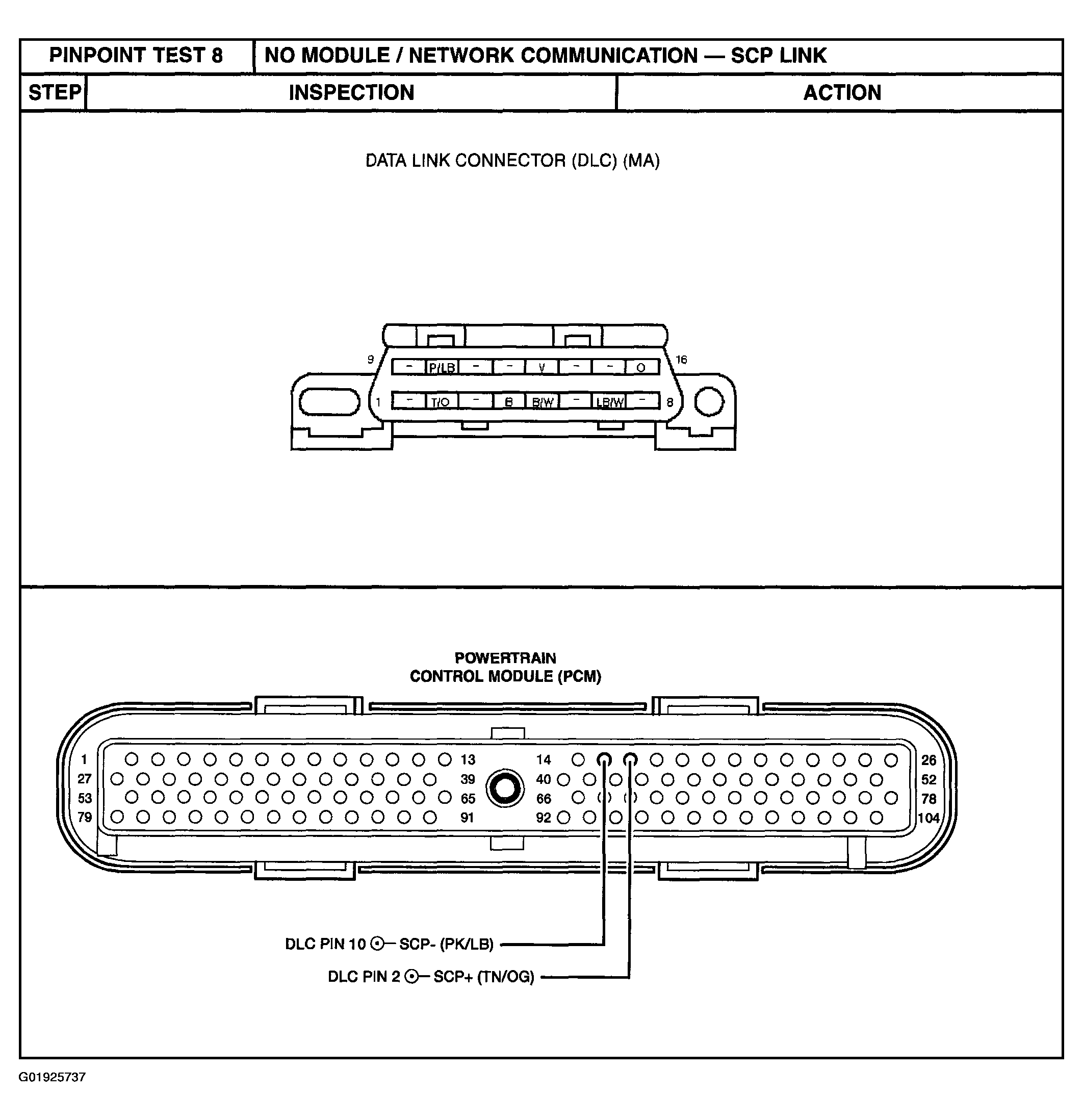

Fig 1: Diagnosis Procedure - No Module/Network Communication - SCP Link (Step 1)

Courtesy of MAZDA MOTORS CORP.

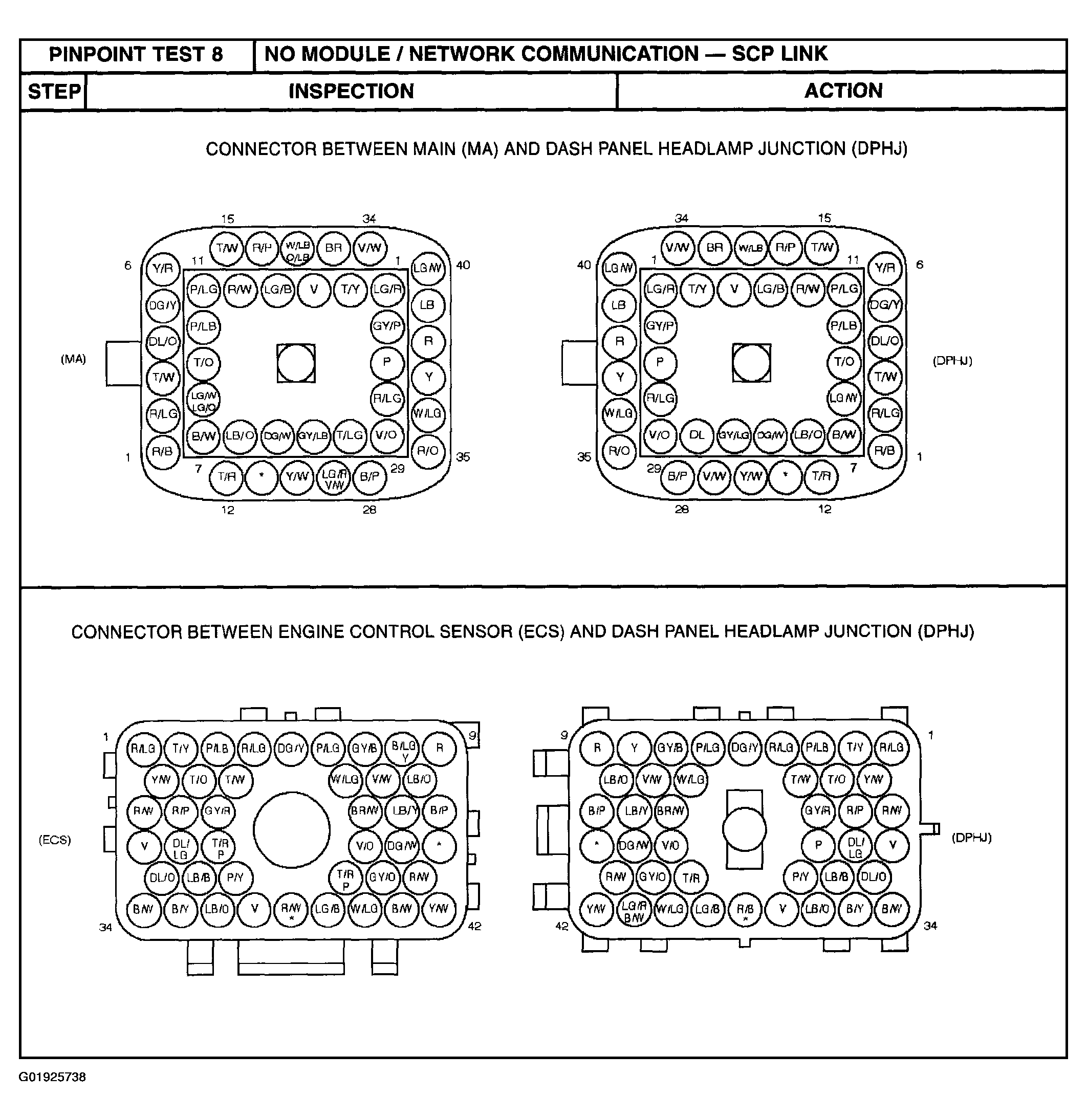

Fig 2: Diagnosis Procedure -- No Module/Network Communication - SCP Link (Steps 2-7)

Courtesy of MAZDA MOTORS CORP.

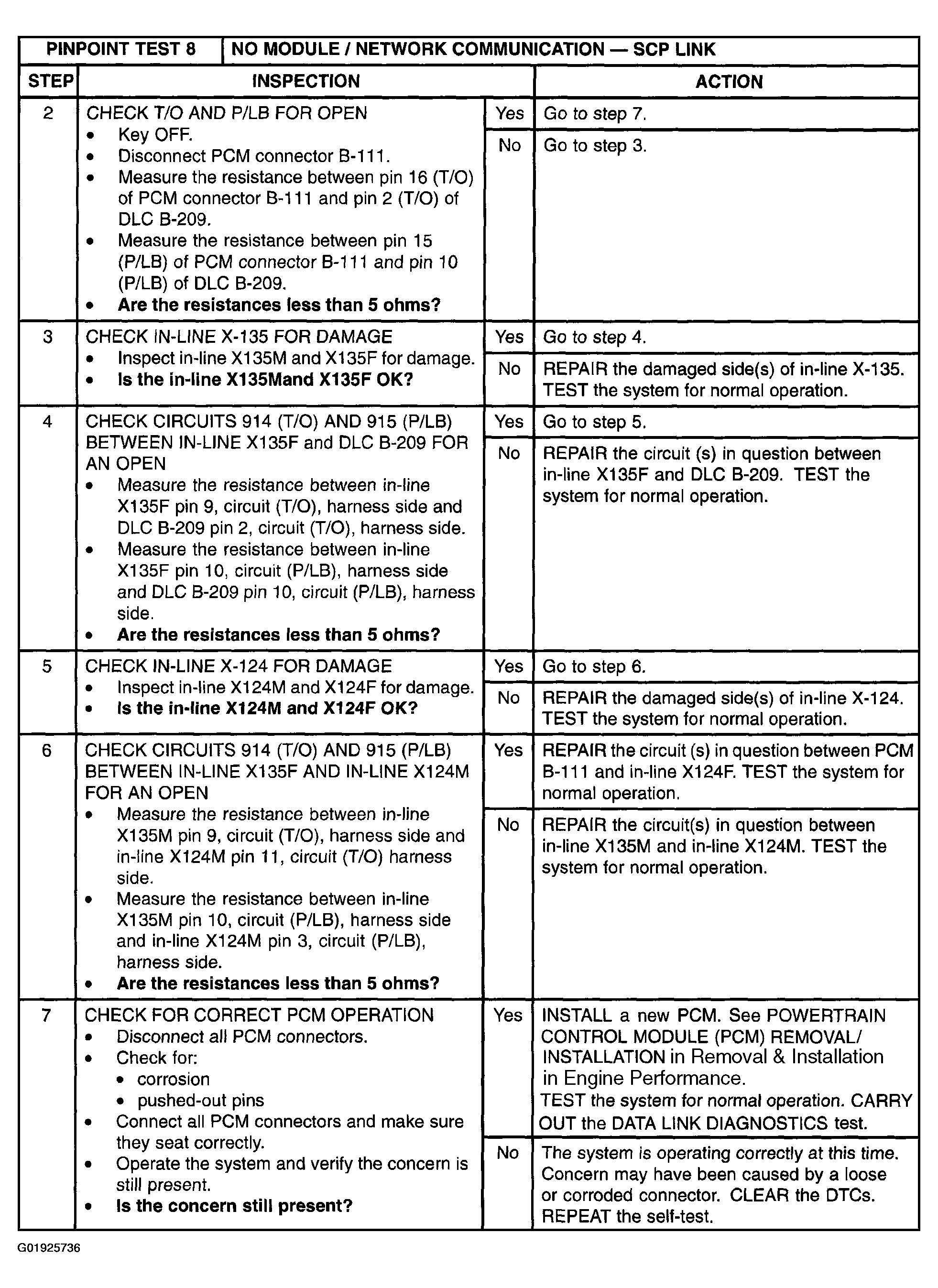

Fig 3: Diagnosis Procedure - No Module/Network Communication - SCP Link (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

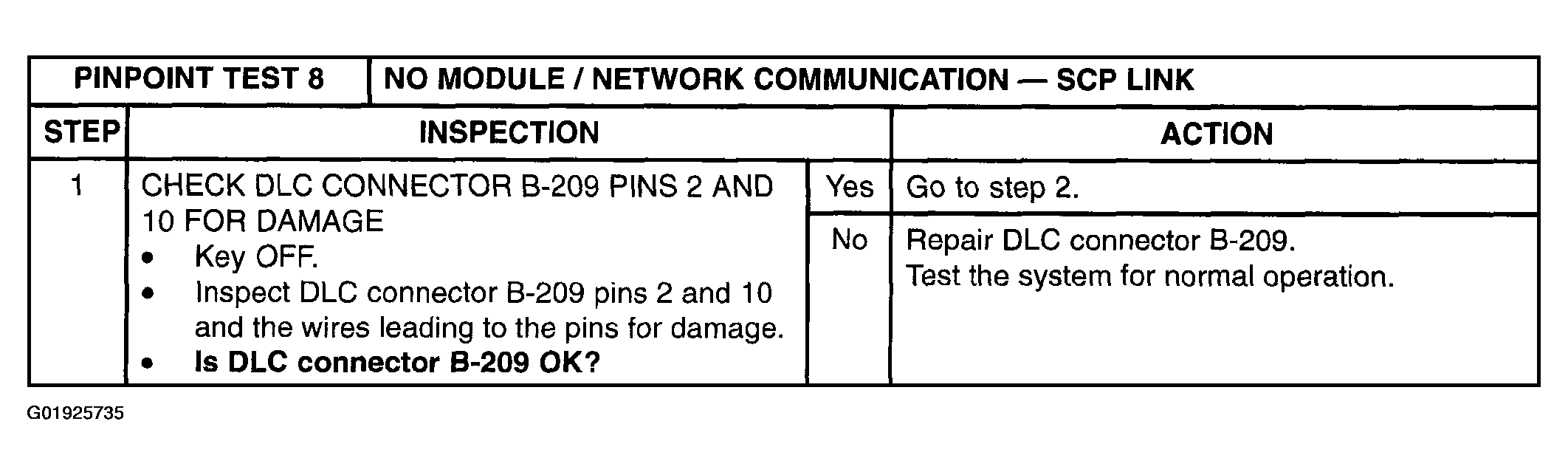

Fig 4: Diagnosis Procedure - No Module/Network Communication - SCP Link (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
