Central Security Module Removal/Installation

CAUTION:

Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Disconnect the negative battery cable.
Remove the passenger air bag module. See PASSENGER-SIDE AIR BAG MODULE .
Reposition the central security module.
1. Remove the three screws.
2. Pull the central security module straight out from the bracket.

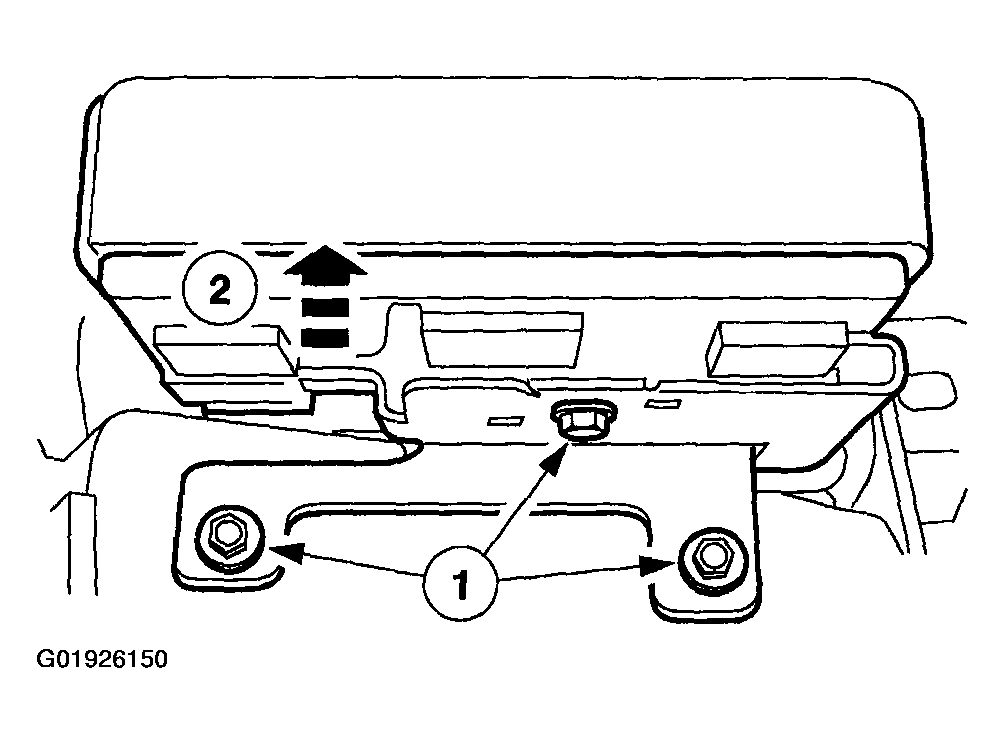

Fig 1: Removing Screws
Courtesy of MAZDA MOTORS CORP.
Disconnect the two electrical connectors.

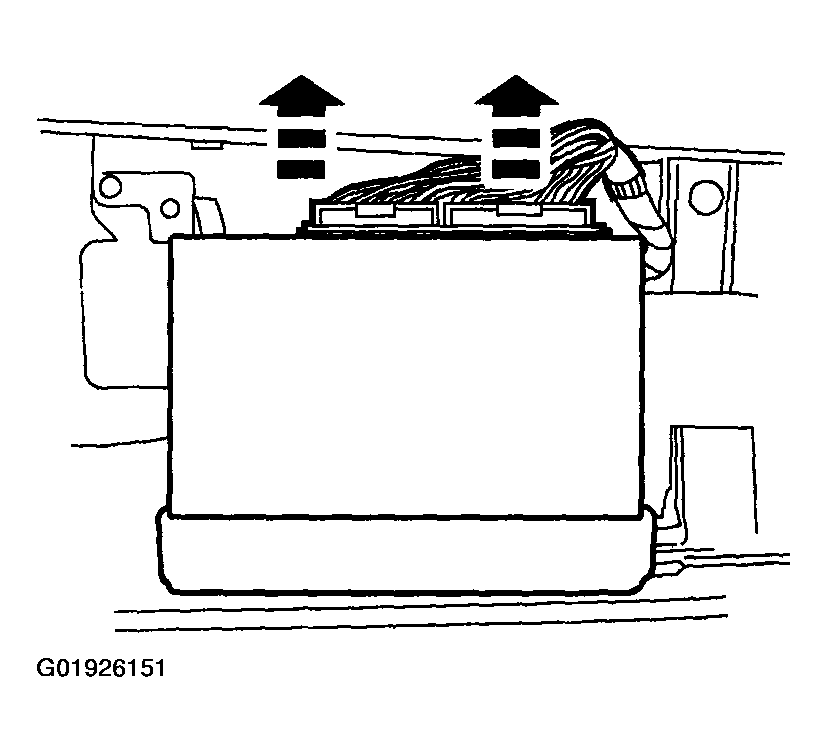

Fig 2: Disconnecting Electrical Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the bracket from the central security module.

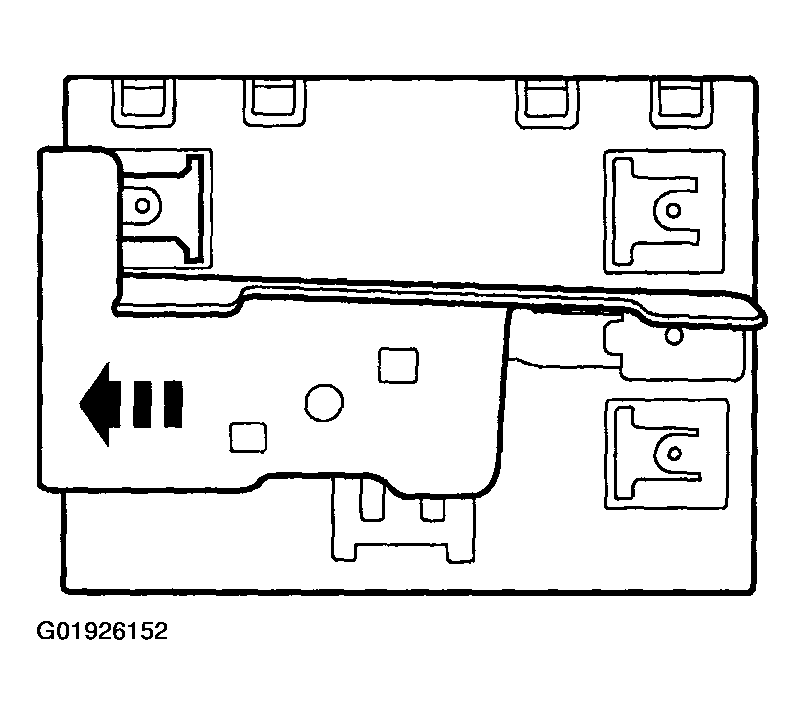

Fig 3: Removing Bracket From Central Security Module
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
