Outside Mirror Removal/Installation
- Remove the front door trim panel; see DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION
.
- Remove the outside mirror access water shield.
- If necessary, remove the speaker. See SPEAKER FRONT REMOVAL/INSTALLATION
.
- If equipped, disconnect outside mirror electrical connector.

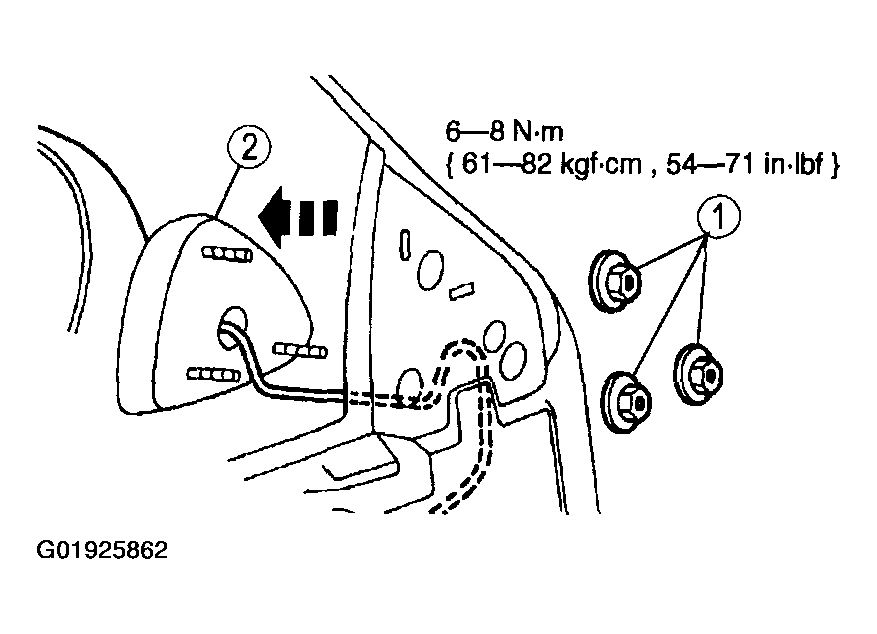

- Remove the nuts (1).
NOTE:
- Feed the outside mirror wiring through the opening in the front door.
- Remove the outside mirror (2).
Courtesy of MAZDA MOTORS CORP.
- Install in reverse order of removal.
