Power Outside Mirror Switch Inspection: Notes

Use an ohmmeter to check for the continuity between the given terminals of the following table for the side that is not operating correctly.

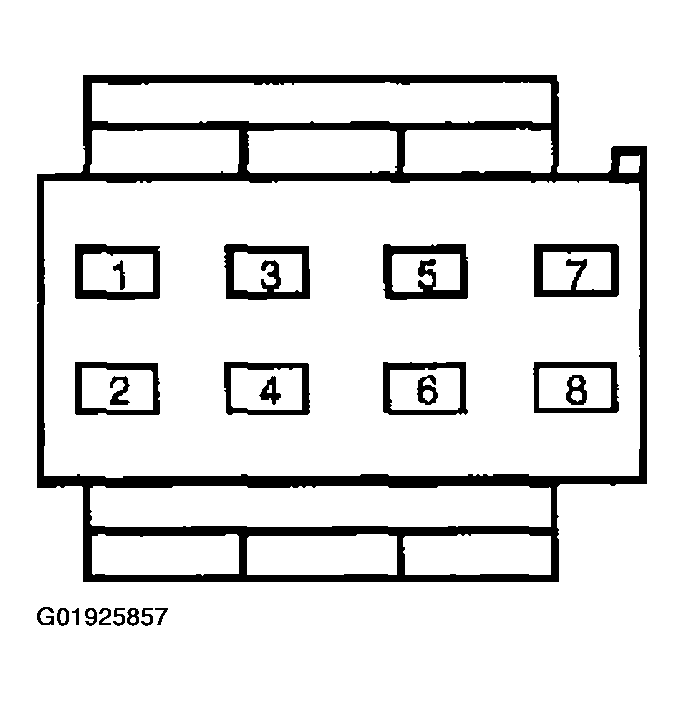

Fig 1: Identifying Power Outside Mirror Switch Terminals

Courtesy of MAZDA MOTORS CORP.

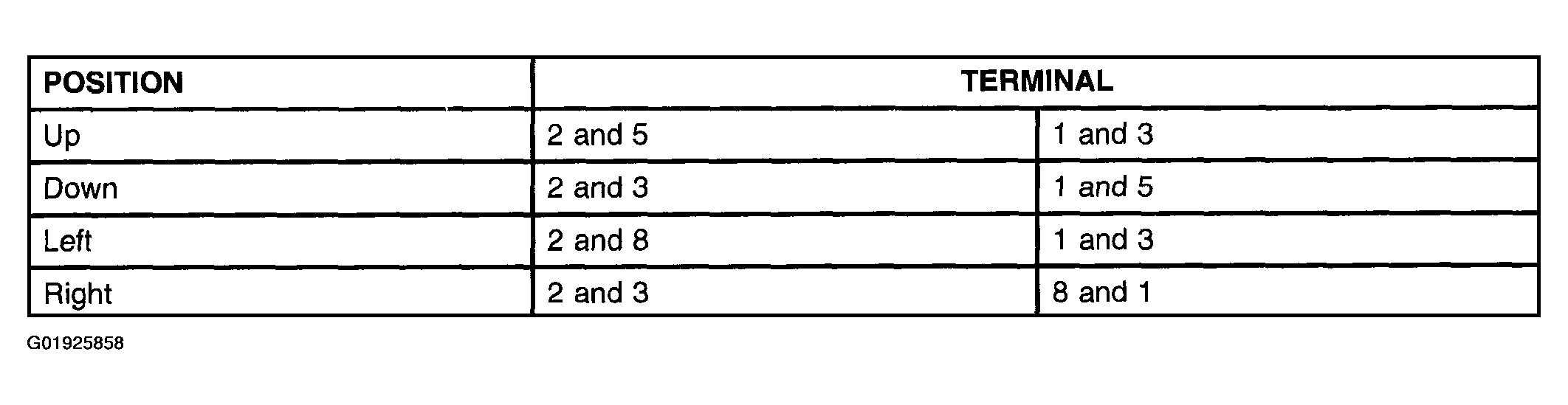

Fig 2: Power Outside Mirror Switch Specifications (Left Mirror)

Courtesy of MAZDA MOTORS CORP.
