Mirror Does Not Function With Switch Logic

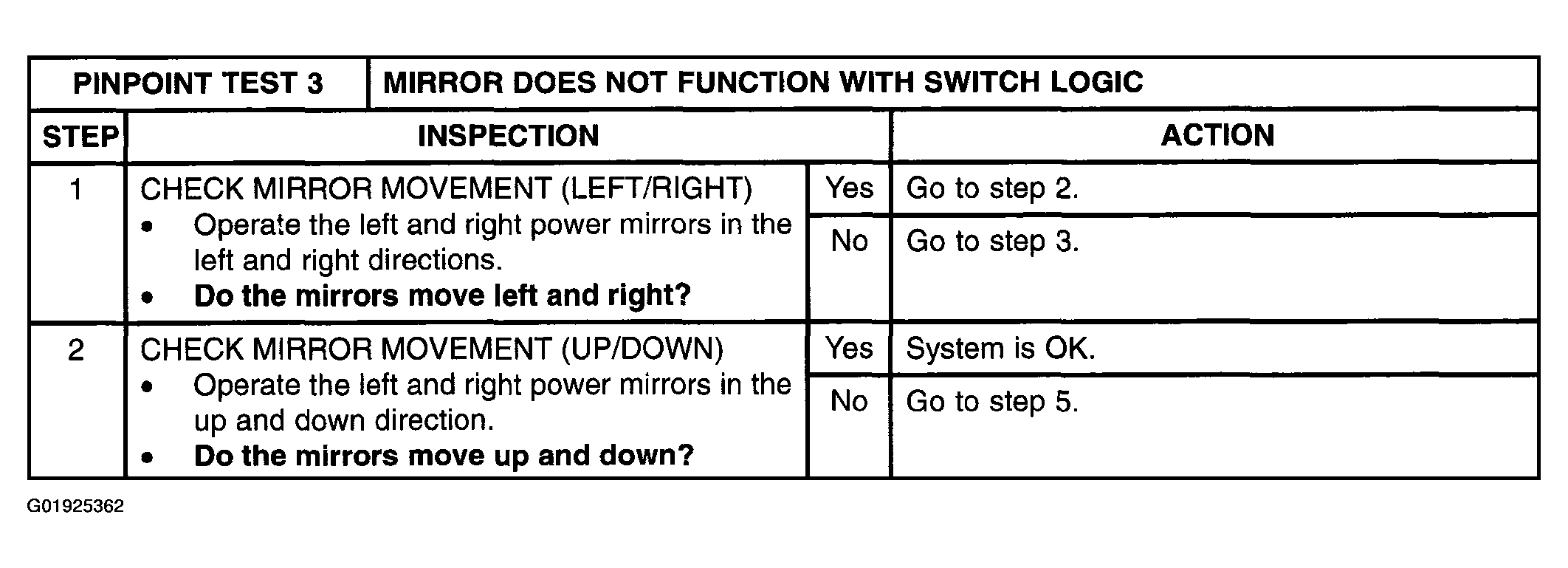

Fig 1: Mirror Does Not Function With Switch Logic (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

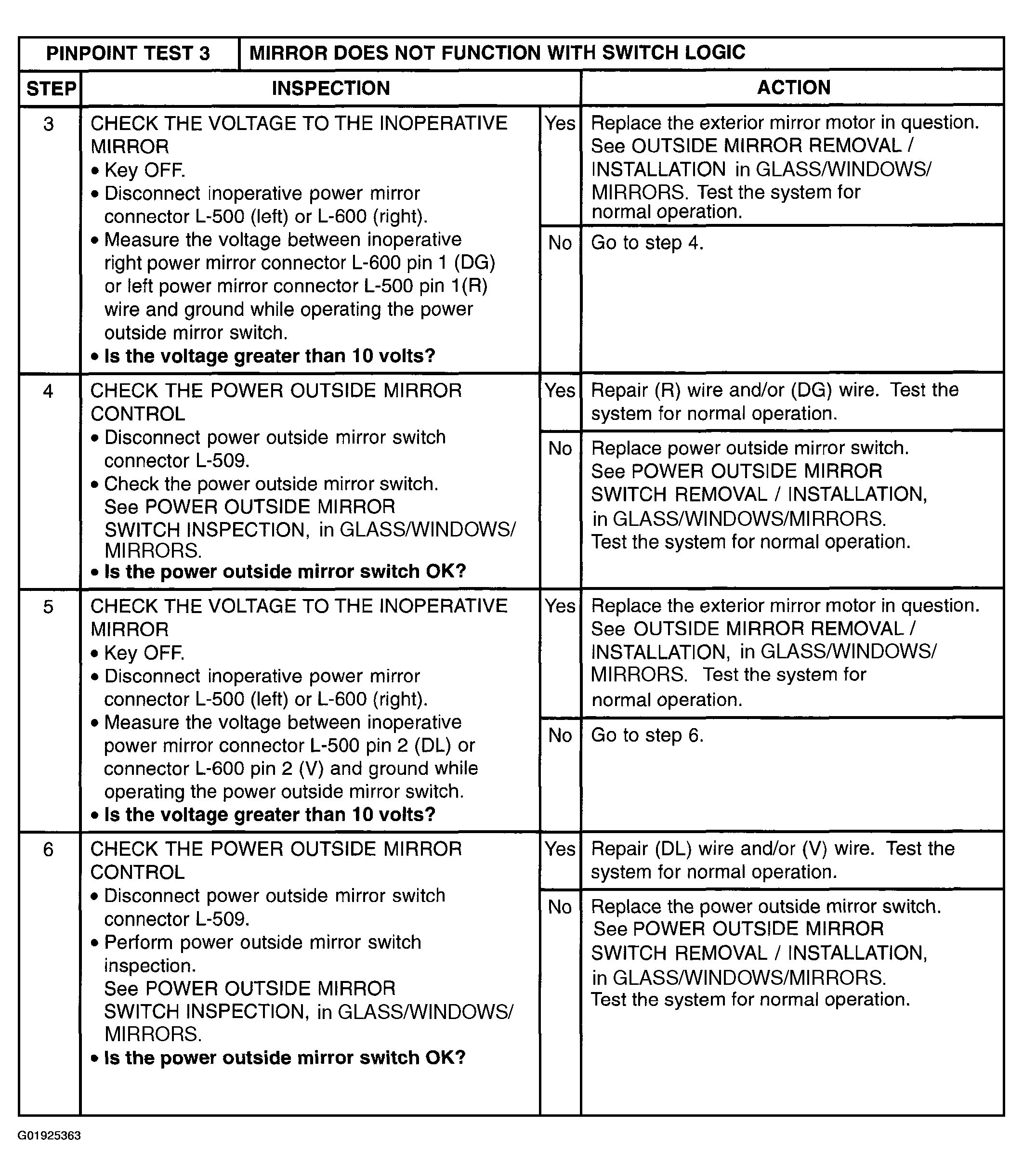

Fig 2: Mirror Does Not Function With Switch Logic (Steps 3-6)

Courtesy of MAZDA MOTORS CORP.

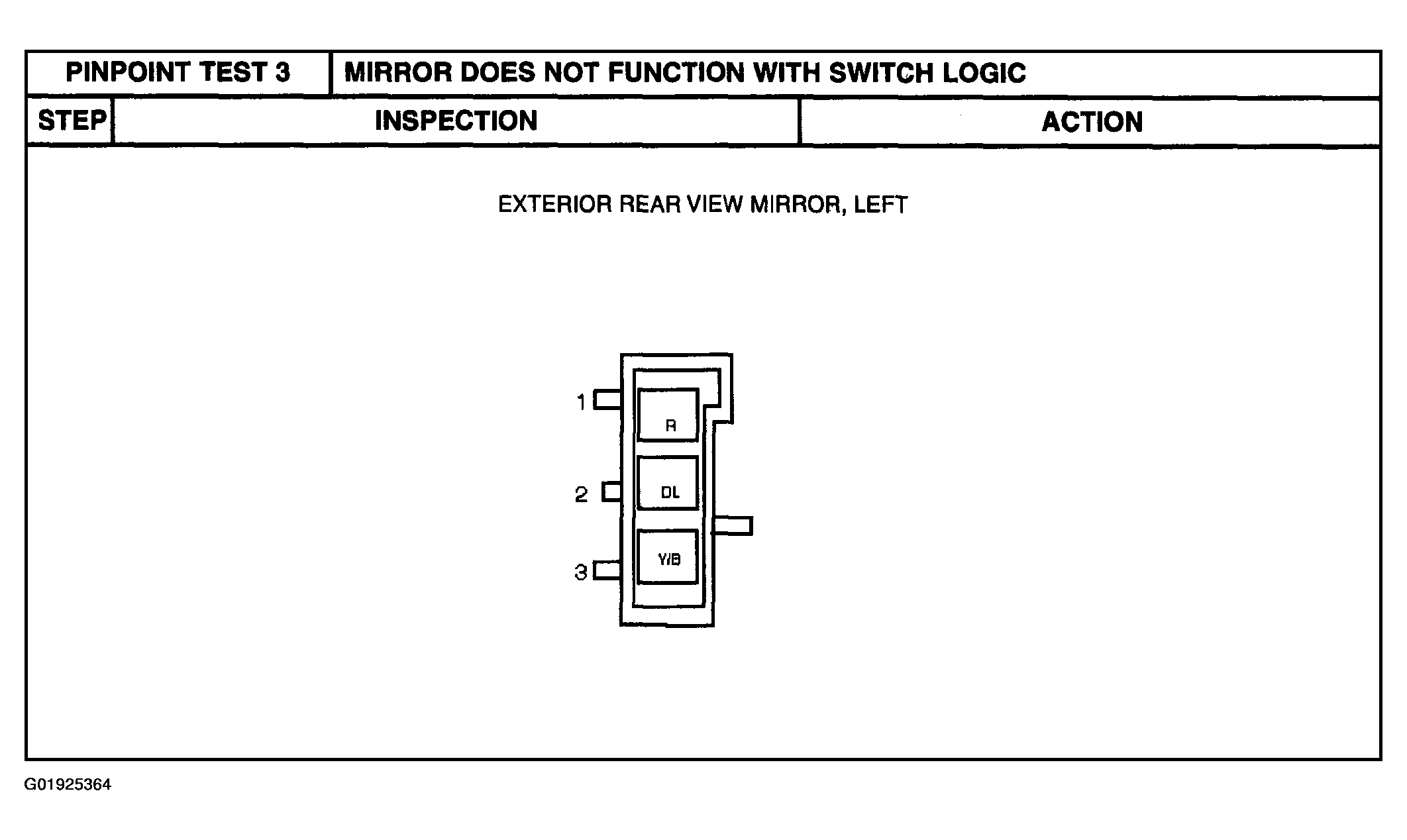

Fig 3: Left Exterior Rear View Mirror Connector

Courtesy of MAZDA MOTORS CORP.

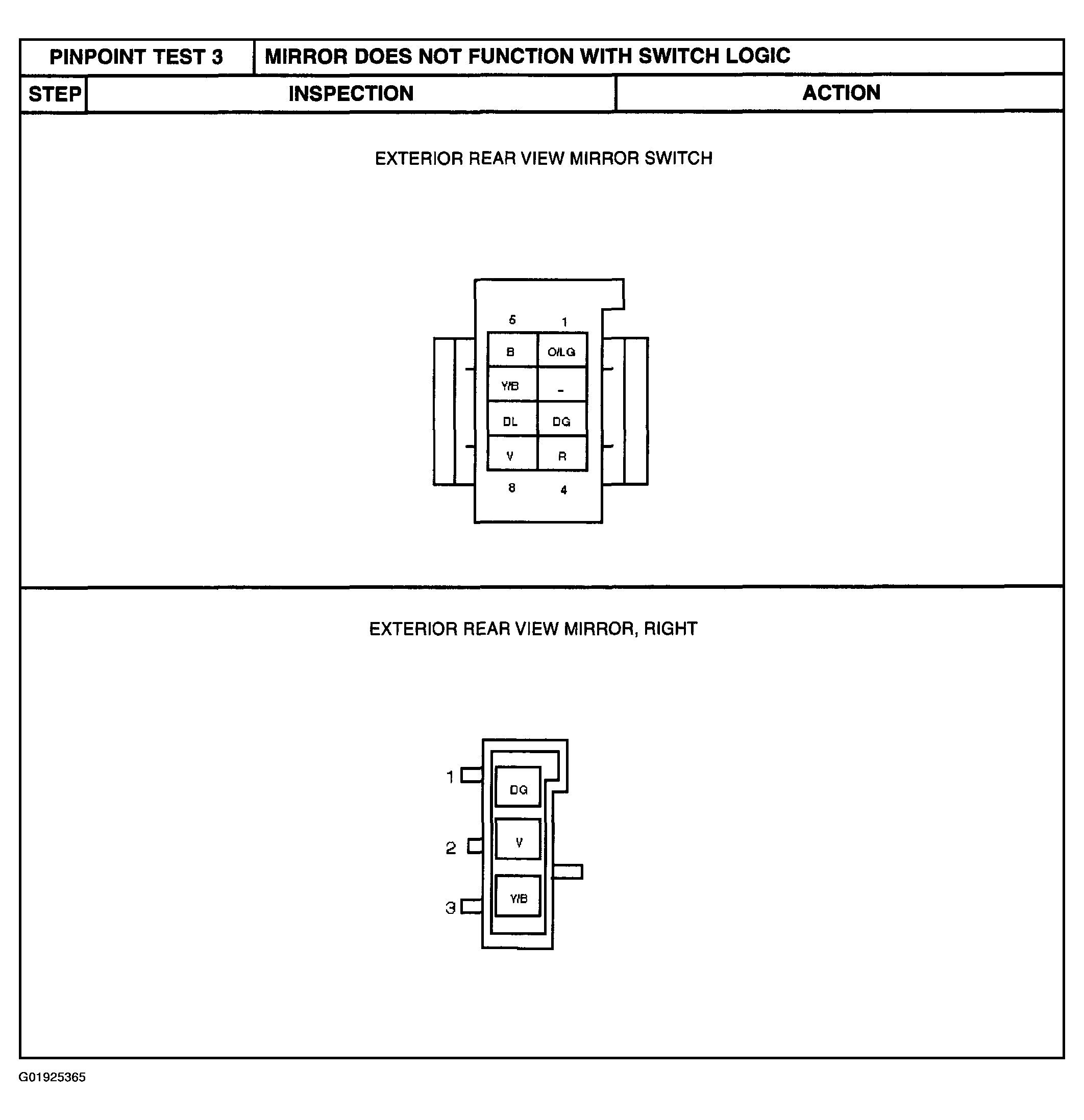

Fig 4: Identifying Right Exterior Rear View Mirror Connector & Exterior Rear View Mirror Switch

Courtesy of MAZDA MOTORS CORP.
